HPE Aruba Networking CX 6300
Switch Series
Installation and Getting Started Guide

Advertisement

Table of Contents
loading

Related Manuals for HP CX 6300

Summary of Contents for HP CX 6300

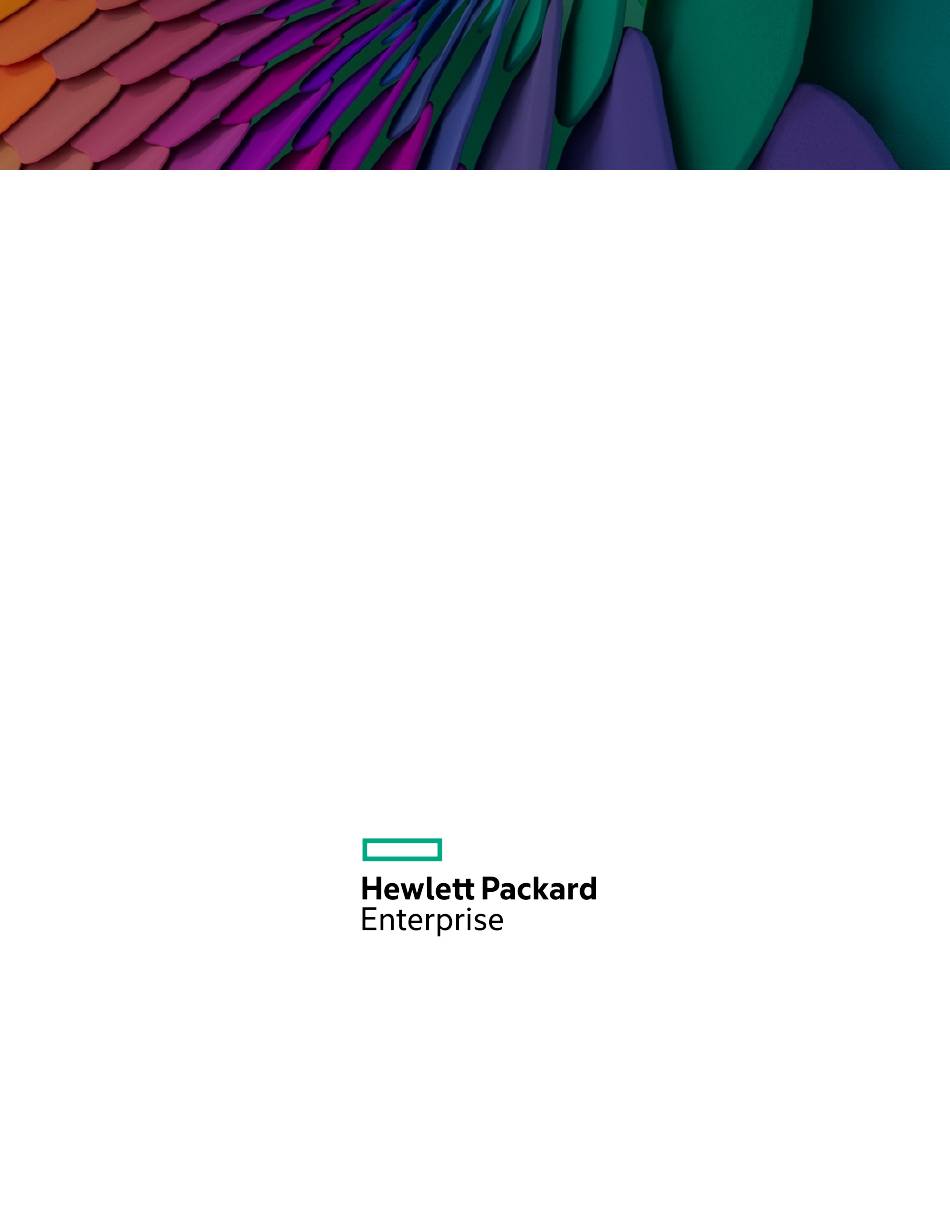

  • Page 1 HPE Aruba Networking CX 6300 Switch Series Installation and Getting Started Guide...
  • Page 2 Copyright Information © Copyright 2024 Hewlett Packard Enterprise Development LP. Open Source Code This product includes code licensed under certain open source licenses which require source compliance. The corresponding source for these components is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company.
  • Page 3 Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. UNIX® is a registered trademark of The Open Group. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 5: Table Of Contents

    Restoring the factory default configuration Downloading new switch software Specifications Physical and environmental Electrical Acoustics Safety Support and Other Resources Accessing HPE Networking Support Accessing Updates Warranty Information Regulatory Information Documentation Feedback HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 6: About This Document

    JL668A Aruba 6300F 24G 4SFP56 Switch Related publications Start Here: Installation, Safety, and Regulatory Information for the HPE Aruba Networking CX 6300 Switch Series Start Here: Installation, Safety, and Regulatory Information for the HPE Aruba Networking Modular Power Supplies Start Here: Installation, Safety, and Regulatory Information for the HPE Aruba Networking DC Modular Power Supplies...
  • Page 7 AOS-CX software manuals AOS-CX Power Over Ethernet (PoE/PoE+) Planning and Implementation Guide AOS-Switch and AOS-CX Transceiver Guide To view and download these publications, visit the HPE Networking Support Portal at https://asp.arubanetworks.com/downloads. About this document |...

  • Page 8: Introducing The Switches

    Out-of-Band Management (OOBM) SFP/SFP+/SFP28/SFP56 support Back of the switches: Power supplies and power connectors Fan tray and replaceable power supplies (modular switches) Switch features Front of the switches HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 9 Figure 1 Front of all the 6300 Switches Introducing the switches |...
  • Page 10 JL667A HPE Aruba Networking 6300F 48G 4SFP56 JL668A HPE Aruba Networking 6300F 24G 4SFP56 S0E91A HPE Aruba Networking 6300M 48SR10 CL8 PoE 4p100G S0X44A HPE Aruba Networking 6300M 48SR10 CL8 PoE 4p100G TAA HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 11 Figure 2 Example of 6300 Switch: JL658A, JL659A, JL660A, JL661A, JL662A, JL663A, JL664A, JL665A, JL666A, JL667A, JL668A Table 2: 6300 Switches: Labels and Description Label Description Switch Port LEDs Back Module status LED PoE LED Speed LED Stk LED Reset button Unit Identification LED Global Status LED SFP56 ports...
  • Page 12 100M/1G/2- 100M/1/2.5/- 5GbE 50GbE /100GbE BaseT .5G/5G 5G/10G QSFP JL65 JL65 48 (CL6 PoE) JL66 24 (CL6 PoE) JL66 48 (CL4 PoE) JL66 24 (CL4 PoE) JL66 HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 13 1/10/2 10/100- Smart Rate Smart Rate 1/10/2- 1/10/25/- 1/10/25/40/50*- Swi- 5GbE /1000 100M/1G/2- 100M/1/2.5/- 5GbE 50GbE /100GbE BaseT .5G/5G 5G/10G QSFP JL66 JL66 48 (CL4 PoE) JL66 24 (CL4 PoE) JL66 JL66 JL76 24 (CL6 PoE) (MACSe 48 (CL8 PoE) (MACSe 48 (CL8/CL6 PoE)
  • Page 14 Auxiliary port An auxiliary port is available for downloading switch software code. This port uses a USB Type-A connector. Switch and port LEDs on front of the switches HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 15 Figure 4 Switch and port LEDs for JL658A, JL659A, JL660A, JL661A, JL662A, JL663A, JL664A, JL665A, JL666A, JL667A, JL668A, and JL762A Table 5: Switch and Port LEDs: Labels and Description Label Description Switch port LEDs Back Module status LED Speed mode selected LED Stk LED Reset button UID (Unit Identification)
  • Page 16 Port LEDs will be used to indicate the number of the stacking member. Slow flash Amber A port has a stacking failure. Stacking mode not selected HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 17 Switch LEDs Function State Meaning UID LED Locator LED User configured the located LED : OFF On/Flash Blue (for User configured the locator 30 min) LED: On/Flash Global Status Overall status of the product Flash - Green Self-test in progress during Indicator LED UBOOT and SVOS On - Green...

  • Page 18: Back Of The Switches

    Figure 6 Back of the 6300M Switch Table 9: Back of the 6300 Switch: Label and Description Label Description Fan tray 1 & 2 Power supply slot 1 & 2 HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 19 Fan requirements Switches Fan Tray 1 Fan Tray 2 JL658A Required Required JL659A Required Required JL663A Required Optional JL664A Required Optional JL660A Required Optional JL661A Required Optional JL662A Required Optional JL762A Required Required R8S89A Required Required R8S90A Required Required R8S91A Required Required R8S92A...
  • Page 20 PoE switches. Offers up to 740 watts of PoE power, and is keyed so that it will not fit into the power supply slots of non-PoE HPE Aruba Networking switches. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 21 HPE Aruba Networking X372 54VDC 1600W 110-240VAC Power Supply (JL670A): A 1600 watt (high-line only) power supply for applicable PoE switches. Offers up to 1440 watts of PoE power, and is keyed so that it will not fit into the power supply slots of non-PoE HPE Aruba Networking switches. HPE Aruba Networking 6300M 1050W 36-72VDC PSU (JL758A): A 1050 watt power supply used for 6300M PoE switches.

  • Page 22: Switch Features

    Aruba 6300M 24G Class 4 PoE and 4-port SFP56 Switch JL662A Up to 30W Aruba 6300F 48G Class 4 PoE and 4-port SFP56 Switch JL665A Aruba 6300F 24G Class 4 PoE and 4-port SFP56 Switch JL666A HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 23 HPE Aruba Networking 6300F/M switch PoE per port Standard Aruba 6300M 48 HPE Smart Rate Class 6 PoE Up to 60W IEEE 802.3bt 100M/1G/2.5G/5G Switch IEEE 802.3af/at** JL659A Aruba 6300M 24 HPE Smart Rate Class 6 PoE 100M/1G/2.5/G5G Switch JL660A HPE Aruba Networking 6300M 48SR10 Class 8 PoE IEEE 802.3bt 4p100G Switch IEEE 802.3af/at**...
  • Page 24 An auxiliary port (USB Type A connector) for updating switch software. Switch Hibernation mode to allow the switch to power down for a period each day to save energy. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 25: Installing The Switch

    North America 8121-0973 Australia 8121-0857 North America high line 8121-0941 Brazil 8121-1265 South Africa/India 8121-1483 Europe/South Korea 8120-5336 Israel 8121-1009 China 8121-1034 United Kingdom/Hong 8120-5334 Argentina 8121-1481 Kong/Singapore/Malaysia HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 26: Installation Procedures For 6300 Switches

    HPE Aruba Networking 6300M PoE Switches (with AC power supplies) Switzerland 8120-5339 Chile 8120-8389 Danish 8120-5340 Thailand/Philippines 8121-0671 Japan high line 8120-5338 (JL086A, Taiwan 15A 8121-1511 (JL086A, JL087A) JL087A) Japan low line 8120-5342 (JL086A) Taiwan 10A 8121-0967 (JL086A) HPE Aruba Networking 6300M Non-PoE Switches (with AC power supplies) Argentina 8120-6869 Japan...
  • Page 27 40A for PoE switches when using DC power. When powered by a DC power supply, the installation shall provide a readily accessible two-pole disconnect device in the fixed installation. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 28 If your installation requires a different power cord than the one supplied with the switch and power supply, be sure that the cord is adequately sized for the current switch requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country/region.
  • Page 29 Figure 10 Air flow Direction of the JL762A Switch Install a power supply or a second power supply for modular switches 1. Remove the power supply blank. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 30 2. Insert the power supply. 3. Place the unit inside the rack, making sure the PSU is properly and fully inserted into the switch with the latch locked into place. AC power supply 1. Use the supplied AC cable for the power supply and the 6300M switch being installed. 2.
  • Page 31 NOTE: Do not tie the DC cables to the power supply fan handle as it is not designed to take the weight of the cables. Ensure that the DC cable does not obstruct or block the air flow of the power supply fan. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 32 3. Remove the transparent protective cover from the DC input connector of the power supply and set it aside. 4. Install the Ground, +DC, and -DC wires, making sure there is a three-inch gap (1 in below illustration) below the unit for the DC cable. Fasten the Green wire to the Screw Terminal marked with on the power supply.
  • Page 33 The mark is your assurance that the power cord can be used safely with the switch. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 34 Check the LEDs on the switch to make sure the switch is on and operating. When the switch is powered on, it performs its diagnostic self-test and initialization. This boot process, depending on switch model and configuration, takes approximately 1-2 minutes to complete.
  • Page 35 1. Attach the rack mount brackets to the switch by using a #1 Phillips (cross-head) screwdriver and the supplied eight 8-mm M4 screws. 2. Use the four number 12-24 screws to secure the brackets to the rack. Mounting the switch in a four-post rack HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 36 The four-post rack mount for the switches requires the optional J9583A HPE X410 Universal Rack Mounting Kit. To use this kit to mount a switch, see the installation instructions provided with the kit. Connect the switch to a power source For AC power supplies: Plug the included power cord into the power connector on the switch and into a nearby AC power source.

  • Page 37: Sfp/Sfp+/Sfp28/Sfp56 Installation Notes

    HPE Aruba Networking sales representative or an authorized reseller. The following resources can help you to find transceiver support information for your switch model: HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 38: Sample Network Topologies

    See the Transceiver Guide. See the supported transceivers information in the Data Sheet for your switch model. Hot swapping SFP/SFP+/SFP28/SFP56 transceivers Supported SFP/SFP+/SFP28/SFP56 transceivers that you can install in your HPE Aruba Networking switch can be “hot swapped”– removed and installed while the switch is receiving power. However, disconnect the network cables from the SFP/SFP+/SFP28/SFP56 transceivers before hot-swapping them.
  • Page 39 LX, or -LH transceiver installed in the switch. Now, all the devices on these network segments can access other network resources that are connected elsewhere on the network backbone. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 40 Figure 13 Example as a Segment Switch Implementing PoE Figure 14 Example of Connecting to a Backbone Switch For example, you can use an backbone switch to interconnect each of your smaller work group switches to form a larger network. All devices in this network can communicate with each other and also with the campus backbone. Depending on your bandwidth needs, the links between switches can run at 1G/10G/25G/50G, and use copper or fiber cabling with the appropriate SFP/SFP+/SFP28/SFP56 transceivers.

  • Page 41: Getting Started With Switch Configuration

    IP address, see the latest version of the Fundamentals Guide for your switch. Setup for initial configuration For initial configuration information, see the Fundamentals Guide for your switch. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 42: Replacing Components

    JL761A (Aruba 6300M Power-to-Port Fan Tray). Other 6300M fan trays are not supported in the JL762A switch. All other 6300 switches have port-to-power (front-to-back) airflow; JL761A fan trays are not supported in any other 6300M switch other than the JL762A. To Remove an Existing Fan: HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 43: Replacing The Power Supply

    1. Loosen the T10 screws by turning counter clockwise. 2. Grasping the pull handle of the failed fan, remove the component. 3. Insert the new fan by sliding the component all the way. 4. Tighten the T10 screws by turning them clockwise. Replacing the power supply If the switch is configured with redundant power supplies, the switch will not suffer any loss of traffic or performance if one power supply fails.
  • Page 44 Figure 15 Replacing a Failed Power Supply Table 12: Replacing Failed Power Supply: Label and Description Label Description Lock mechanism Handle HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 45 3. Insert the new power supply. Slide it in all the way in until the locking mechanism locks. DC power supply 1. Switch off the DC source and remove the DC cable from the DC source. 2. Remove the transparent protective cover from the DC input connector on the DC power supply. Unfasten the DC cable from the DC power supply.

  • Page 46: Troubleshooting

    It may also be placed into a “blocking” state by a protocol operating on the port (dynamic VLANs), or LACP (dynamic trunking). For example, the normal operation of the spanning HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 47: Diagnosing With The Leds

    tree, GVRP, LACP, and other features may put the port in a blocking state. Use the switch console to determine the port configuration and verify that there is not an improper or undesired configuration of any of the switch features that may be affecting the port. Diagnosing with the LEDs Table 13: Front Panel LED Behavior Switch LEDs...
  • Page 48 Slow flash - Amber Fan fault UID LED User-configurable LED User define the locator LED : OFF On/Flash (30 min) - User define the blue locator LED: On/Flash HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 49 Switch LEDs Function State/Mode Meaning PSU Status Status of power supply On Green Normal Indicator LED No power, PSU has invalid AC or DC input or invalid DC output Slow Flash - Green Power supply has faulted or warning Diagnostic Tips Problem Solution The switch is not plugged into...
  • Page 50 For Base-T connections, verify that the network HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 51 Problem Solution cabling complies with the IEEE 802.3ab standard. Install the cable according to the ANSI/TIA/EIA- 568-A-5 specifications. Ensure that cable testing complies with the stated limitations for Attenuation, Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT), Multiple Disturber ELFEXT, and Return Loss.

  • Page 52: Proactive Networking

    If you believe the switch is not operating correctly, you can reset the switch to test its circuitry and operating code. To reset a switch, try any of the following: HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 53: Restoring The Factory Default Configuration

    Unplug and plug in the power cord (power cycling). Press the Reset button on the front of the switch. Reboot the switch via the management console’s boot system command. Power cycling the switch and pressing the Reset button both cause the switch to perform its power-on self test, which almost always will resolve any temporary operational problems.

  • Page 54: Downloading New Switch Software

    Downloading new switch software Software updates can be downloaded to the switch through several methods. For more information, see Support and Other Resources. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 55: Specifications

    11.95 lb (5.42 kg) (JL660A) Aruba 6300M 24 SFP+ and 4-port SFP56 11.27 lb (5.11 kg) Switch (JL658A) Aruba 6300M 48G Pwr2Prt 2F 1PS Bdl 12.56 lb (5.7 kg) (JL762A) HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 56 Switch Dimensions (W x D x H) Weight HPE ANW 6300M 24SR10 CL6 PoE 2p50G 17.4" x 15.2" x 1.73" 11.60 lb (5.26 kg) 2p25G SW (R8S89A) (44.2 x 38.5 x 4.4 cm) HPE ANW 6300M 48SR5 CL8 PoE 2p50G 12.08 lb (5.48 kg) 2p25G SW (R8S90A) HPE ANW 6300M 48SR5 CL8/CL6 2p50G...

  • Page 57: Electrical

    100V-240V Maximum current 3A-1.2A 3A-1.2A Frequency range 50-60 Hz 50-60 Hz Maximum Power 250W Max 250W Max Power supply: JL757A DC input range (nominal) -48V to -60V HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 58: Acoustics

    HPE Aruba Networking 6300M HPE Aruba Networking 6300M Non-PoE Switches (JL658A, Power-to-Port Bundle (JL762A) JL663A, JL664A, R8S92A) DC input range (maximum) -36V to -72V Maximum current 8.2A Maximum Power 250W Max HPE Aruba Networking 6300F PoE Switches (JL665A, JL666A) AC voltage 100V-120V 200V-240V Maximum current Frequency range 50-60 Hz...

  • Page 59: Safety

    With 2x JL670A power supply at low voltage line, drawing a total of 720W PoE, with a loading of 100% traffic on all ports With 1x JL085A power supply at low voltage line, with a loading of 100% traffic on all ports Safety HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...
  • Page 60 Table 17: Safety and Regulatory Information for all CX 6300 Switch Series JL658A, JL659A, JL660A, JL661A, JL662A, JL663A, R8S89A, R8S90A, R8S91A, R8S92A, S0E91A, S0X44A JL664A, JL665A, JL666A, JL667A, JL668A Safety-EU EN 62368-1:2014 +A11:2017 EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 EN 62368-1:2020 +A11:2020...

  • Page 61: Support And Other Resources

    End-of-Life information https://www.arubanetworks.com/support-services/end-of-life/ HPE Aruba Networking software and https://asp.arubanetworks.com/downloads documentation Accessing Updates You can access updates from the HPE Aruba Networking Support Portal or the HPE My Networking Website. HPE Aruba Networking CX 6300 Switch Series | Installation and Getting Started Guide...

  • Page 62: Warranty Information

    Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HP Passport set up with relevant entitlements. Some software products provide a mechanism for accessing software updates through the product interface.
