- Page 1 User Manual of Product 1: Chamberlain Group G953EV-P2 Chamberlain/LiftMaster/Crafts man 953EV-P2 3-Button, Security +2.0 Compatible, Includes Visor Clip Garage Door Opener Remote , Black , Small User Manual of Product 2: Chamberlain KLIK5U-BK2 Clicker 2-Button Garage Door Opener Remote with Visor Clip, Black...

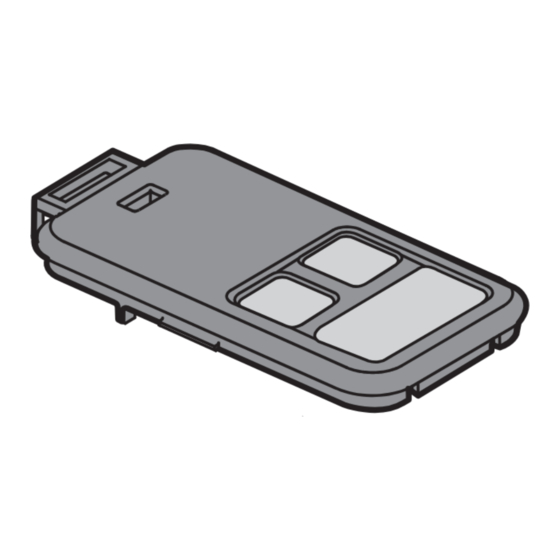

- Page 2 3-BUTTON REMOTE CONTROLS MODELS 953EV, 953EVC, 956EV AND 956EVC For use with Chamberlain 315 MHz or 390 MHz garage door openers manufactured after January 1, 1993. The garage door opener activates when the programmed button on the remote control is pressed. The remote control can activate up to three garage door openers.
- Page 3 Battery ......10A20 The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from Visor Clip defect in materials and/or workmanship for a period of 1 year from the date of purchase.
-
Page 4: Table Of Contents
TaBLE OF COnTEnTs GeTTInG STaRTed ................2 GaTe OPeRaTORS ..............11-13 LOCaTe THe PROGRaM/LeaRn BUTTOn ........3-7 Program to a gate operator with a Program/LeaRn button ........... 11 Chamberlain products ..............3 ® Programming to a GTO/Mighty Mule gate Genie products ................4 ®... -
Page 5: Getting Started
gETTIng sTaRTED The remote control can be programmed to activate up to two products, such as a garage door opener, gate operator, or commercial door operator. The images throughout this manual are for reference only and your product may look different. Garage door Opener Gate Operator Commercial door Operator... -
Page 6: Locate The Program/Learn Button
LOCaTE ThE PROgRaM/LEaRn BUTTOn ChaMBERLaIn PRODUCTs... -
Page 7: Genie Products
LOCaTE ThE PROgRaM/LEaRn BUTTOn gEnIE PRODUCTs Learn Code Button Program Set Button... -
Page 8: Linear Products
LOCaTE ThE PROgRaM/LEaRn BUTTOn LInEaR PRODUCTs Learn Button Learn Button WaYnE DaLTOn PRODUCTs Program SW Button... -
Page 9: Liftmaster Products
LOCaTE ThE PROgRaM/LEaRn BUTTOn LIFTMasTER PRODUCTs Yellow Learn Button Purple Learn Button Orange Learn Button Green Learn Button OvERhEaD DOOR PRODUCTs Learn Code Button... -
Page 10: Stanley Products
LOCaTE ThE LEaRn BUTTOn sTanLEY PRODUCTs Learn Button... -
Page 11: Garage Door Openers
gaRagE DOOR OPEnERs Programming to a garage Door Opener with a Program/LEaRn Button The Program/LeaRn button is typically located on the back or side panel of the garage door opener or an external receiver. For help locating your Program/LeaRn button refer to the Help section in this manual or contact your garage door opener manufacturer. If you have a Genie Intellicode 2 garage door opener go to the next page. -
Page 12: Programming To A Genie ® Intellicode
gaRagE DOOR OPEnERs (continued) Programming to a genie Intellicode 2 garage Door Opener ® ® Before starting, you MUST have a Genie Intellicode 2 remote control with at least one button already programmed to the garage ® ® door opener. The images throughout this manual are for reference only and your product may look different. -
Page 13: Commercial Door Operators
COMMERCIaL DOOR OPERaTORs Programming to a Commercial Door Operator with a LEaRn Button The Program/LeaRn button is typically located on the logic board of the operator or an external receiver. For help locating your Program/LeaRn button contact your commercial door operator manufacturer. The images throughout this manual are for reference only and your product may look different. -
Page 14: Gate Operators
gaTE OPERaTORs Programming to a gate Operator with a Program/LEaRn Button The Program/LeaRn button is typically located on the control board of the operator or an external receiver. For help locating your Program/LeaRn button contact your gate operator manufacturer. The images throughout this manual are for reference only and your product may look different. Press the program button on the remote control until P ress and release the Program/LEARN button* on your the LED turns on. -
Page 15: Programming To A Gto/Mighty Mule Gate Operator Without A Remote Control
gaTE OPERaTORs (continued) Programming to a gTO/Mighty Mule gate Operator without a Remote Control If you have an existing GTO remote control go to the next page. The images throughout this manual are for reference only and your product may look different. Set the remote control DIP switches 1-9 to any Press the program button on the remote control until combination. the LED turns on. Program Button Press and release the remote control button, the LED will Press the program button on the remote control to save. flash. When the LED stops flashing, continue to press and release the button 20 times, ensuring the LED stops flashing after each press. The code is accepted when the gate operator is activated. -
Page 16: Programming To A Gto/Mighty Mule Gate Operator With A Remote Control
gaTE OPERaTORs (continued) Programming to a gTO/Mighty Mule gate Operator with a Remote Control If you don’t have an existing GTO remote control go to the previous page. STOP Before beginning, check the dIP switches on the GTO remote control. If any of the dIP switches are in the "0" position, move them to either the "+"... -
Page 17: External Receivers
If programming fails reverse DIP switches (OFF to ON and ON to OFF). For Chamberlain remotes DO NOT use the “0” position, use “+” or “-”. If you already have a 3-button remote, DIP switch #1 must be set to “-” if the large button is to open the door. -
Page 18: Programming To An External Receiver With A Program/Learn Button
EXTERnaL RECEIvERs (continued) Programming to an External Receiver with a Program/LEaRn Button If using the Universal Remote Control with residential door openers, the remote control must be used only with door STOP openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located on or near the bottom of the door track. -
Page 19: Alternate Programming Options
Help section in this manual or contact your product manufacturer. The images throughout this manual are for reference only and your product may look different. ** LiftMaster, Do-It, Master Mechanic, Raynor, True Value and Sears Craftsman are compatible with Chamberlain technology. Press the program button on the remote control until P ress and release the Program/LEARN button* on your the LED turns on. product. Program Button * D epending on your product, the Program/LEARN button may have a different name (use the button for programming remote controls). Press and release the remote control button..8 times ( Chamberlain ** product with yellow Program/LEARN button). ® ...3 times ( Chamberlain ** product with purple Program/LEARN button). ® ...2 times ( Chamberlain ** product with orange Program/LEARN button). ® ...4 times ( Chamberlain ** product with green Program/LEARN button). -
Page 20: With Dip Switches
2 Position DIP Switch: 3 Position DIP Switch: If programming fails reverse DIP switches (OFF to ON For Chamberlain remote controls DO NOT use the “0” position, and ON to OFF). use “+” or “-”. If you already have a 3-button remote, DIP switch #1 must be set to “-”... -
Page 21: Need Help
The remote control will not program to a product with dIP switches. Check the battery in the remote control. The LED should light when you press a button. Replace the battery if necessary. • • I f programming with 2 position DIP switches, reverse the DIP switches (OFF to ON and ON to OFF), then repeat the programming steps. F or Chamberlain remote controls DO NOT use the “0” position, use “+” or “-”. If you already have a 3-button remote, DIP switch #1 • must be set to “-” if the large button is to open the door. It may be necessary to reprogram original remote controls. Repeat the programming steps but make sure the LED stops flashing between each press of the remote control button. • • Try programming using the Alternative Programming Option for products with a LEARN button. The remote control will not program to a product with a Program/LeaRn button. -
Page 22: Battery
1-800-442-1255 Chamberlain and LiftMaster are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door Corporation. Overhead Door is a Trademark of Overhead Door Corporation. Linear is a Trademark of Linear Corporation. Master Mechanic is a Trademark of TruServ. Sears is a Trademark of Sears & Roebuck. Stanley is a Trademark of The Stanley Works. Wayne Dalton is a trademark of Wayne Dalton Corporation.
