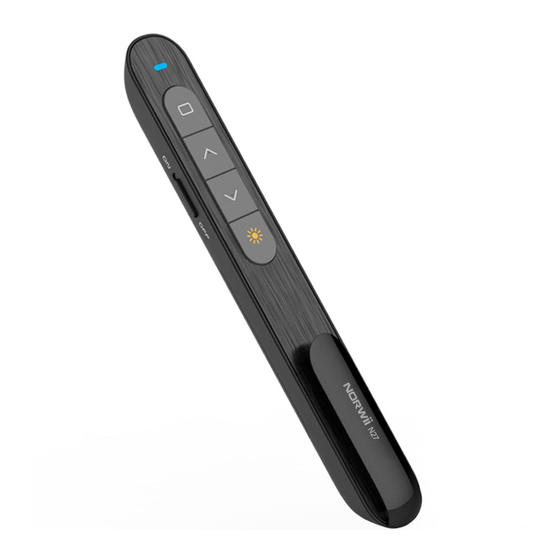

- Page 1 The Professional Presenter Wireless Presenter User Manual Be sure to read this user manual carefully before using the wireless presenter and keep it for future reference. - 1 -...
- Page 2 The Professional Presenter WARNING This product can generate laser beam. DO NOT STARE INTO BEAM OR EXPOSE USERS OF TELESCOPIC OPTICS. Do not shine the laser beam on people's or animal’s eyes to avoid eye damage! Do not give this product to children as a toy! Warning label for red laser product: This product contains AAA batteries.
- Page 3 The Professional Presenter I. Features 1. Support previous page, next page. Click the page up key to go backward to previous page, long press to play slides from the current page. Click the down page key to go forward to the next page, long press to go into the black screen.
- Page 4 8. Supports USB 2.0 version, use operation system universal USB driver, plug and play. 9. The page up/down keys can be customized by Norwii Presenter software. The firmware of the USB receiver is updatable. II. Operation system Windows 7 / 8 / 10 / 11 or later, macOS/ Linux/ Android system.
- Page 5 The Professional Presenter IV. Specifications Transmitter Technology: Radio frequency Frequency: 2.4GHz Control Distance: 100m Laser Power: <1mW (Class 2), see the laser label on the back of the presenter. Laser Distance: >200m Wavelength: Red 640-660nm Battery capacity: AAA*1 Working Voltage: 1.5V Dimension: 139*18*20mm...
- Page 6 The Professional Presenter V. Function map Attention: When using this product, please change your Input Method Editors (IME) to English input mode. - 6 -...
- Page 7 The Professional Presenter VI. Function Description 1. Power switch: push up to “ON” to turn on the presenter, push down to “OFF” to turn off the presenter. 2. Page up key ： click to page up, long press to play slides from the current page.
- Page 8 The Professional Presenter presentation mode. After jumping to a hyperlink, double clicking equivalent to the Enter key on the keyboard, which will execute the Enter function to open the hyperlink. Long press and hold the key, which is equivalent to the Alt Tab key, to execute the Alt Tab function switch between...
- Page 9 8. The page up/down keys can be customized by Norwii Presenter software. - 9 -...
- Page 10 The Professional Presenter VII. Installation 1. Install the battery The product is powered by a No. 7 AAA battery. After opening the battery cover, place a No. 7 AAA battery and then close the battery cover (as shown in the picture) ： 2.
- Page 11 The Professional Presenter (The USB receiver into the computer USB port) 3. Control the wireless presenter by operating the key of the flip pen. 4. Turn off the wireless presenter. - 11 -...
- Page 12 Norwii Presenter software. Please download it from "Downloads" under "Support" menu of Norwii official website www.norwii.com in English version. 2. How to know if the battery is out of power? When the power is turned on, if the laser button is pressed and no laser...
- Page 13 The Professional Presenter AAA battery in a timely manner. When the battery level is low, the indicator light on the flip pen will enter slow flashing state, reminding users to replace the AAA battery in a timely manner. 3. What laser becomes dim? The dimming of the laser beam is...
- Page 14 The Professional Presenter receiver of the presenter doesn’t work, it means the USB receiver is broken or the USB drivers is not compatible with the USB receiver. You can try another USB port of the same computer or USB ports of another computer to check whether the USB receiver is good or not.
- Page 15 The Professional Presenter calibration operations need to be carried out. Simply say, when you move the product horizontally, and the mouse cursor on the computer does not move horizontally, which requires calibration. The purpose of calibration is to provide a horizontal and vertical reference for the product.
- Page 16 The Professional Presenter The reason is the USB receiver doesn’t save presenter’s address properly. You can use Norwii Presenter software to let the receiver save presenter’s address again. We also call this operation is to PAIR the wireless presenter and the USB receiver.
- Page 17 IEC/EN60825-1:2014. Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated June 24, 2007. X. Product Support Shanghai Norwii Technology Co., Address: No.277 Jinfeng Road, Pudong Area, Shanghai, 201201, China Tel: 86-21-51872080 Email: support@norwii.com...
