CP Plus CP-XR-DE4C-S Quick Installation Manual

4g router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Installation Guide
4G Router CP-XR-DE4C-S
Version 1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-XR-DE4C-S and is the answer not in the manual?

Questions and answers

Related Manuals for CP Plus CP-XR-DE4C-S

Summary of Contents for CP Plus CP-XR-DE4C-S

  • Page 1 Quick Installation Guide 4G Router CP-XR-DE4C-S Version 1.0.1...
  • Page 2 Packaging Content Please check for the following items in the packing box: ➢ 4G Router × 1 ➢ Power Adapter × 1 ➢ USB to Type C cable x 1 ➢ Quick Installation Guide × 1 ➢ Ethernet cable x 1 For product or function details, please go through the user guide.

  • Page 3: Table Of Contents

    Table of Contents Appearance ..............................4 1.1. LED Lights Indicators ..........................4 1.2. Interfaces Description ..........................5 1.3. Working Environments ..........................6 Installation Steps ............................6 2.1. Router Installation Steps ..........................6 2.1.1. Power On ............................6 2.2. Router Configuration ..........................7 2.2.1.

  • Page 4: Appearance

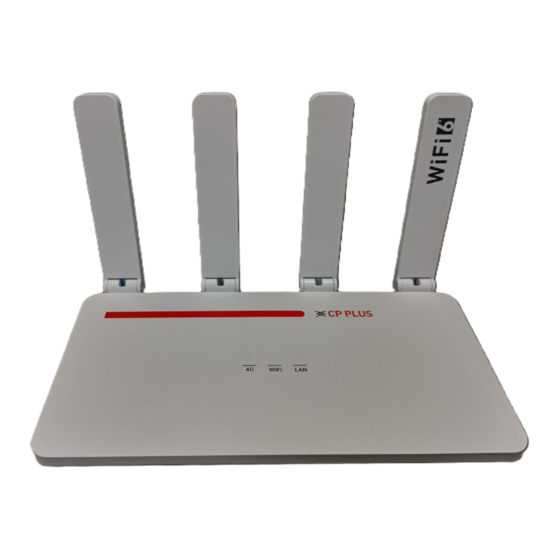

    1. Appearance The picture is only for reference. 1.1. LED Lights Indicators Indicator Meaning Status Description After inserting the SIM card, router gets the network Always on and connected 4G indicator SIM card not inserted, or the network is not found after inserting the SIM card.

  • Page 5: Interfaces Description

    The picture is only for reference. 1.2. Interfaces Description S. No. Interface Function Press and hold for more than 15 seconds, the router will restore RESET / WPS factory settings, Press, and hold for 3-5 seconds in the power-on state，the router will enable WPS wireless connection status. Power supply DC-5V DC power input interface, Connect to 5V/2A power adapter Ethernet Port Rj45 network port, can be used as a LAN port...

  • Page 6: Working Environments

    1.3. Working Environments To ensure proper functioning of the router, the operating environment is recommended as follows: a) Keep away from heat, maintain ventilation. b) Lay equipment on flat surface. c) Lay equipment in dry environment without dust. d) Dismantle power supply and all wirings in thunderstorm weather in case of lightning stroke. Note: please supply rated power for equipment.

  • Page 7: Router Configuration

    2.2. Router Configuration If you need to manage and configure this router, you can connect to the 4G router wirelessly or wired. For the default gateway address, please refer to the label on the router. These network parameters can be modified according to the actual situation, and the default values will be explained in the text.
  • Page 8 3. After entering the correct password, you can enter the router WEB configuration interface. Prompt: password of initial administrator is admin; user can change administrator’s password after entering configuration page.

  • Page 9: Dhcp Setting

    3. DHCP Setting Click on “Home Network” icon on the homepage, go to the “DHCP Settings” option, then give the IP range and click on Save.

  • Page 10: Wi-Fi Setting

    4. Wi-Fi Setting Click “Wireless” icon on the homepage, there will be interface of Wi-Fi settings as below, here we can change SSID name and Wi-Fi password.

  • Page 11: Wi-Fi 6 Setting

    4.1. Wi-Fi 6 Setting Click “Wireless” icon on the homepage, then go to the “Wireless Settings” option, click on “802.11 Mode” and select 802.11ax and save.

  • Page 12: G Network Setting

    5. 4G Network Setting This router supports the function of automatically configuring 4G dial-up parameters. Automatic configuration of network dial-up parameters for most operators in the world. Special APN customization requirements, please set the following steps: ✓ Step 1: Confirm the SIM card can work. ✓...
  • Page 13 • Network searching method! When you select "manual Network" in the network searching mode, the network list will pop up, including all the networks searched. The user selects an available network from the list, and the device will register to the network selected by the user.
  • Page 14 Thanks for Choosing CP Plus! Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com...
