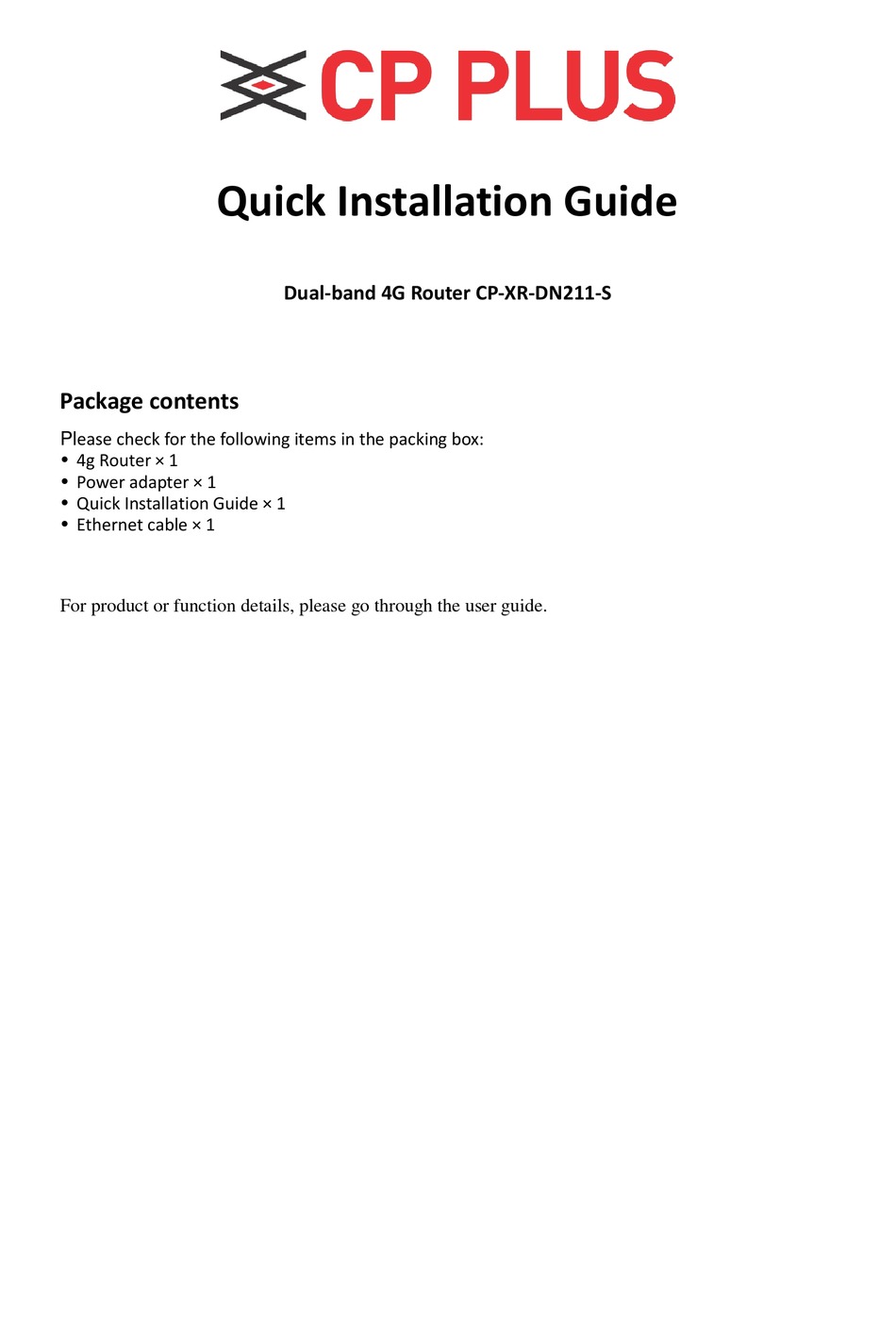

- Page 1 Quick Installation Guide Dual-band 4G Router CP-XR-DN211-S Package contents Please check for the following items in the packing box: 4g Router × 1 Power adapter × 1 Quick Installation Guide × 1 Ethernet cable × 1...
- Page 2 Appearance The picture is only for reference, please make the object as the standard. Interfaces Description Interface Function Power USB DC power input interface, connect to 12V/1A power adapter Reset button, press and hold for more than 5 seconds in Reset the power-on state, the router will restore factory settings W/LAN...
- Page 3 LED Lights indicators Indicator Meaning Status Description The light is on after connected to external Power Always on power. System Always on The light is on after the device is turned on. Wi-Fi function is normally enabled, no data Always on connection.
- Page 4 Installation Steps Router installation steps This router has a built-in 3G/4G modem. Before using the 4G router, you need to purchase a 4G SIM card from a local operator. Insert the 4G SIM card into the SIM card slot of the device. Please pay attention to the insertion instructions near the SIM card slot.
- Page 5 2. In the login window that pops up, enter the password: admin; then click "Login" 3. After entering the correct password, you can enter the router WEB configuration interface.
- Page 6 Prompt: password of initial administrator is admin; user can change administrator’s password after entering configuration page. Working mode settings Router provides three modes of operation: Cable broadband mode, Wireless broadband mode, Automatic mode. Users can click "network connection" to turn off network before setting.
- Page 7 WIFI Setting Click “wi-fi settings” icon on the homepage, there will be interface of Wi-Fi settings as below. Setting 3G/4G Network This router supports the function of automatically configuring 3G/4G dial-up parameters. Automatic configuration of network dial-up parameters for most operators in the world. Special APN customization requirements, please set the following steps: Firstly: Confirm SIM card can work.
- Page 8 (2) Network Searching Method When you select "manual" in the network searching mode, the network list will pop up, including all the networks searched. The user selects an available network from the list, and the device will register to the network selected by the user. Technical Support Toll Free: 8800952962 (India Region) Website: www.cpplusworld.com...
