Summary of Contents for CP Plus CP-XR-DE21-S

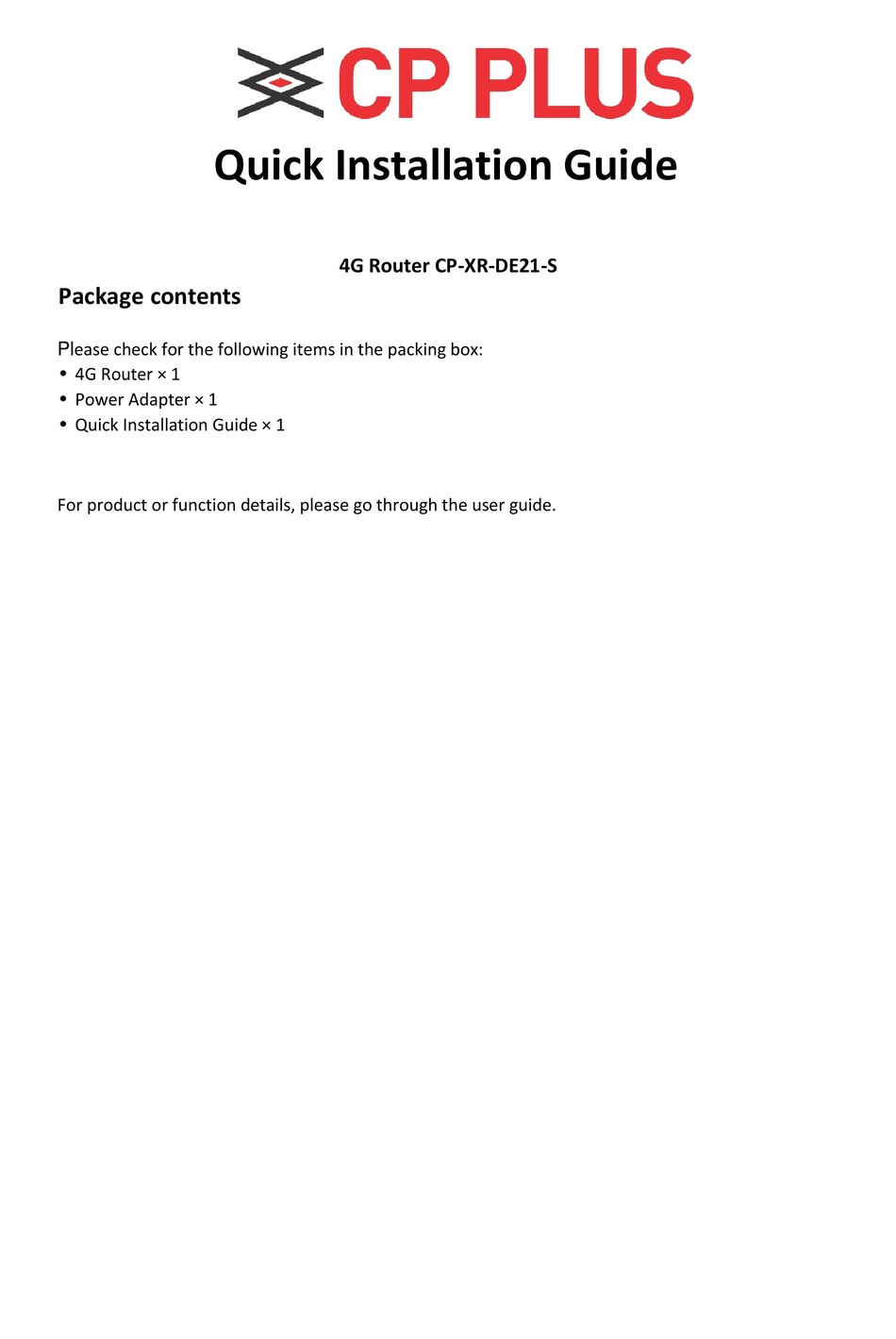

- Page 1 Quick Installation Guide 4G Router CP-XR-DE21-S Package contents Please check for the following items in the packing box: 4G Router × 1 Power Adapter × 1 Quick Installation Guide × 1 For product or function details, please go through the user guide.

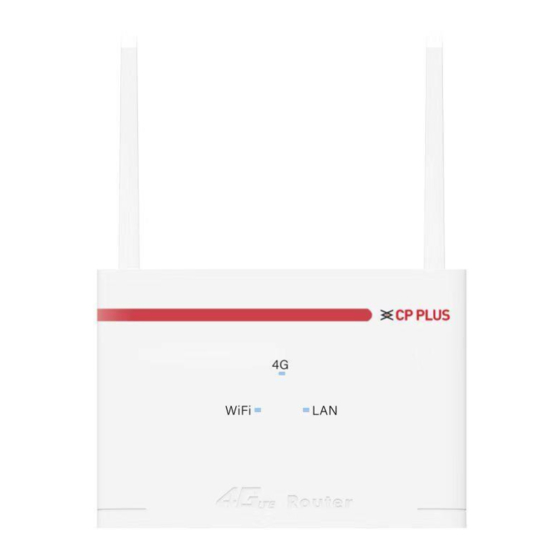

- Page 2 Appearance The picture is only for reference. LED Lights indicators Indicator Meaning Status Description After inserting the SIM card, the router finds the Always on network and is online. The sim card is not inserted, or the router does indicator not find the network.
-
Page 4: Interfaces Description
Interfaces Description S. No. Interface Description Power DC power input interface, connect to 12V/1A power adapter Press and hold for more than 5 seconds, the router will restore factory settings. Reset/ WPS Button Press and hold for 3-5 seconds in the power-on state，the router will enable WPS wireless connection status. -
Page 5: Installation Steps
Installation steps Router installation steps This router has a built-in 3G/4G modem. Before using the 4G router, you need to purchase a 4G SIM card from a local operator. Insert the 4G SIM card into the SIM card slot of the device. Please pay attention to the insertion instructions near the SIM card slot. - Page 6 After entering the correct password, you can enter the router WEB configuration interface. Prompt: password of initial administrator is admin; user can change administrator’s password after entering configuration page.
-
Page 7: Working Mode Settings
Working mode settings Inserts the SIM card, after connecting the power adapter，access the internet via the 4G modem, the router automatically turns on Wi-Fi and the RJ45 port are LAN mode. WIFI setting Click “Wireless” icon on the homepage, there will be interface of Wi-Fi settings as below. - Page 8 Setting 3G/4G network This router supports the function of automatically configuring 3G/4G dial-up parameters. Automatic configuration of network dial-up parameters for most operators in the world. Special APN customization requirements, please set the following steps: Firstly: Confirm the SIM card can work.
- Page 9 Technical Support Number: 8800952952 (India Region) Website: www.cpplusworld.com E-mail: support@cpplusworld.com...
