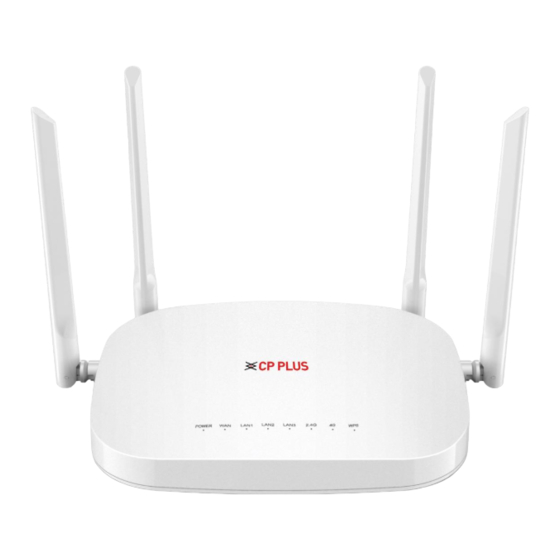

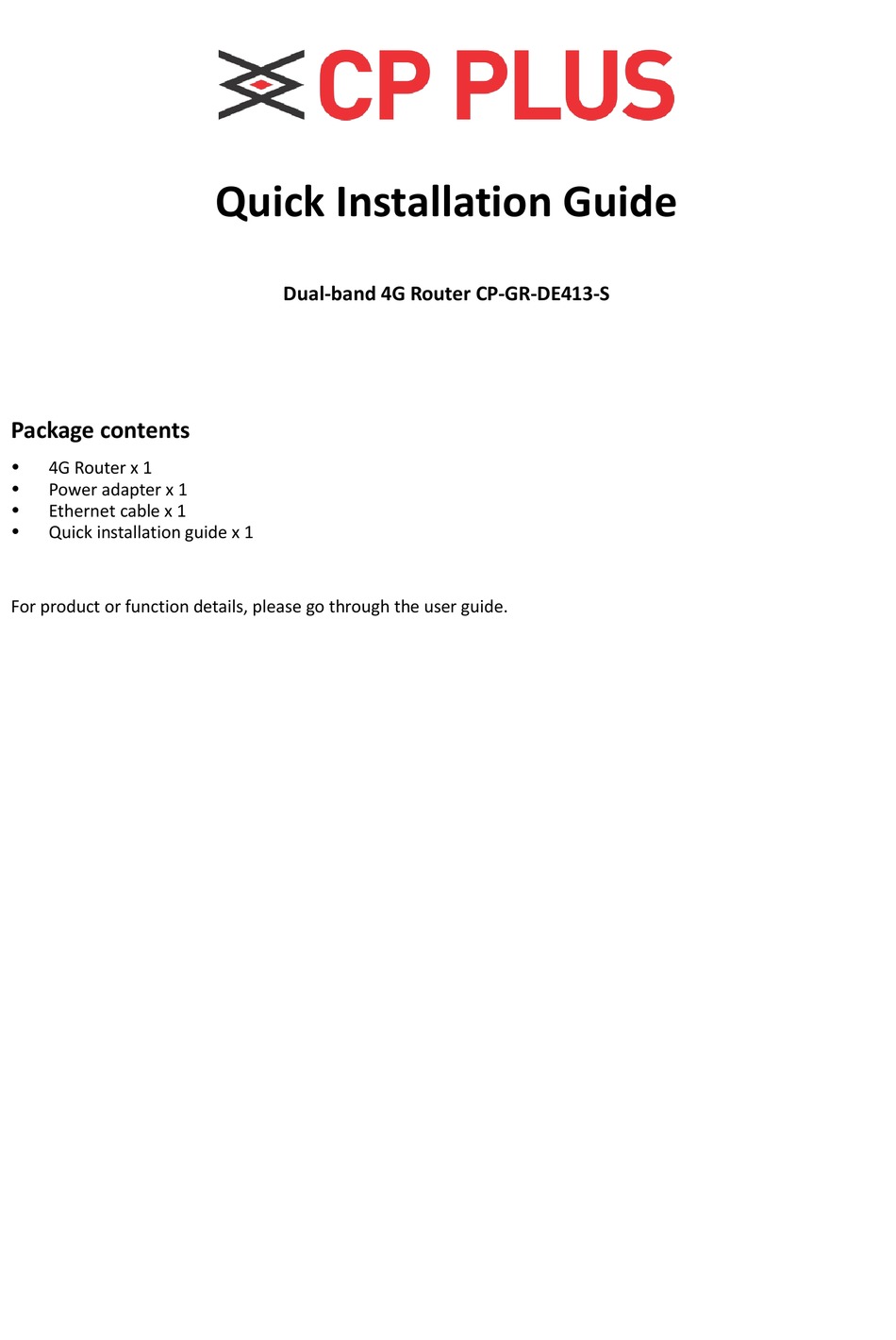

- Page 1 Quick Installation Guide Dual-band 4G Router CP-GR-DE413-S Package contents 4G Router x 1 Power adapter x 1 Ethernet cable x 1 Quick installation guide x 1 For product or function details, please go through the user guide.
- Page 2 Appearance A. Preparations 1. Insert the 4G network card into the SIM slot of the device（The SIM card grap to left, chip down）. The normal insertion will have a feedback sound. Note that the SIM card is a Micro SIM size. If the SIM card is another size, please use the restore card cover (as shown in Figure 1 below).
- Page 3 2. Turn on the DC power and plug it into the DC interface of the device, the Power and 2.4G LEDs will be blue. If the device 4G network recognition is normal, the 4G indicator will be blue. The Wi-Fi signal name is "CPPLUS- XXXX"...
- Page 4 3. The first time you log in to the configuration page, you will enter the device home page (as shown in Figure 5 below), click [Setup Wizard], and follow the user guide page operating (shown in Figure 6 below). Figure 5 Figure 6 3.
- Page 5 select "4G mode", click [Next] to enter the wireless configuration page, please change the "Wi-Fi name" according to your actual situation (as shown in Figure 8 below), "Encryption method" select [WPA2-PSK], "Wi- Fi password". After the setting is completed, click the [Finish] button, the device will restart, and the PC/Laptop searches for the newly changed Wi-Fi name signal input password to experience the fun of Wi-Fi Internet access.
- Page 6 Automatic acquisition: Obtain IP address information from the superior device, you can access the Internet without setting up the Internet access information. Usually, the computer wired access can be accessed without setting. ii. PPPoE dialing: The device needs to dial the fixed account and password to access the Internet. The account and password can be consulted by the broadband service provider to obtain relevant information (as shown in Figure 11 below).
- Page 7 Static IP Mode c. AP mode: The device accesses the Internet through the wired mode. The NAT function will be stopped. The physical interface of the device WAN is converted into the LAN interface mode. The network is shared to the wired and Wi-Fi users.
- Page 8 information on the mobile phone, and enter the 4G routing setting page---network setting---APN setting to fill the APN information of the mobile phone to 4G Routed APN settings. Ques: 4G router WAN port address is normal, 4G lights are normal, mobile phones cannot connect to Wi-Fi? Ans: Each 4G card has a traffic package.
