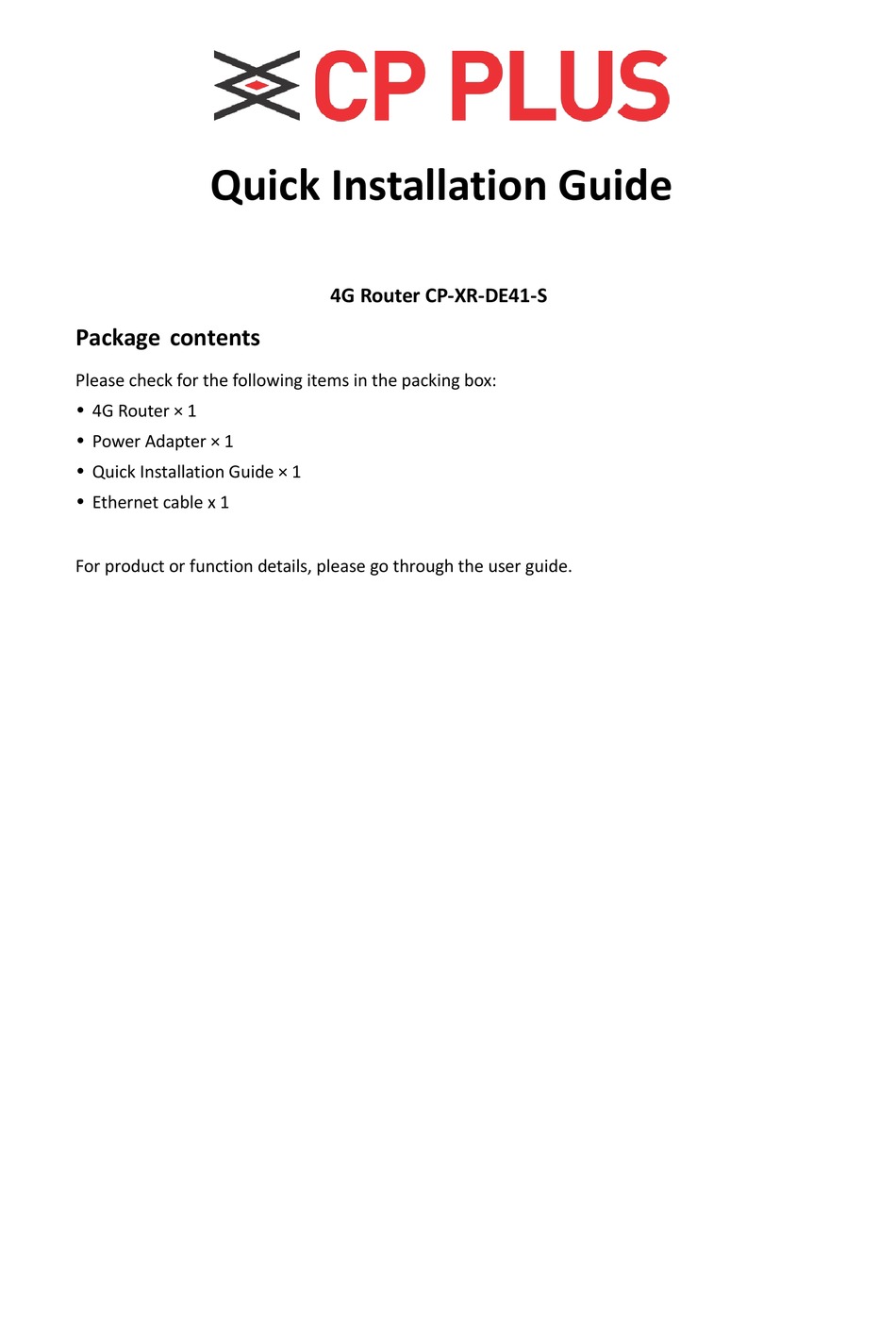

- Page 1 Quick Installation Guide 4G Router CP-XR-DE41-S Package contents Please check for the following items in the packing box: 4G Router × 1 Power Adapter × 1 Quick Installation Guide × 1 Ethernet cable x 1 For product or function details, please go through the user guide.

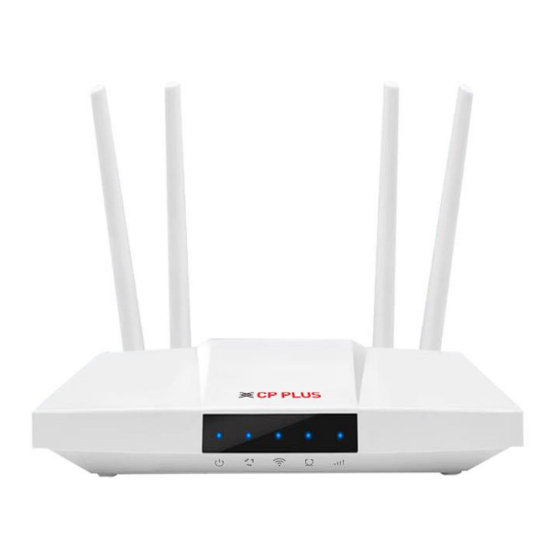

- Page 2 Appearance The picture is only for reference. LED Lights indicators Indicator Meaning Status Description Power Always on The light is on after connected to external power. System Always on The light is on after the device is turned on. Wi-Fi function is normally enabled, no data Always on connection.
- Page 3 Interfaces Description Interface Function Power supply DC-12V DC power input interface, Connect to 12V/1A power adapter Ethernet Port Rj45 network port, can be used as a WAN or LAN port Press and hold for more than 5 seconds, the router will restore factory RESET / WPS settings, Press, and hold for 3-5 seconds in the power-on state，the router will enable WPS wireless connection status.
- Page 4 Working environments To ensure proper functioning of the router, the operating environment is recommended as follows: a) Keep away from heat, maintain ventilation b) Lay equipment on flat surface c) Lay equipment in dry environment without dust d) Dismantle power supply and all wirings in thunderstorm weather in case of lightning stroke Note: please supply rated power for equipment.
- Page 5 values will be explained in the text. Log in to the router configuration page 1. Open the browser of your computer or smartphone/tablet, enter the IP address on the router body sticker in the address bar, and than press Enter to enter the background login interface.
- Page 6 Prompt: password of initial administrator is: admin; user can change administrator’s password after entering configuration page. Working mode Inserts the SIM card, after connecting the power adapter，access the internet via the 4G modem, the router automatically turns on Wi-Fi and the RJ45 port are LAN mode. Wi-Fi setting Click “...
- Page 7 Setting 3G/4G network This router supports the function of automatically configuring 3G/4G dial-up parameters. Automatic configuration of network dial-up parameters for most operators in the world. Special APN customization requirements, please set the following steps: Firstly: Confirm SIM card can work.
- Page 8 Technical Support Number: 8800952952 (India Region) Website: www.cpplusworld.com E-mail: support@cpplusworld.com...
