excelPTZ PTZ600 Series Installation And Operation Manual

High speed ptz dome with 4 alarm inputs
Hide thumbs Also See for PTZ600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
the

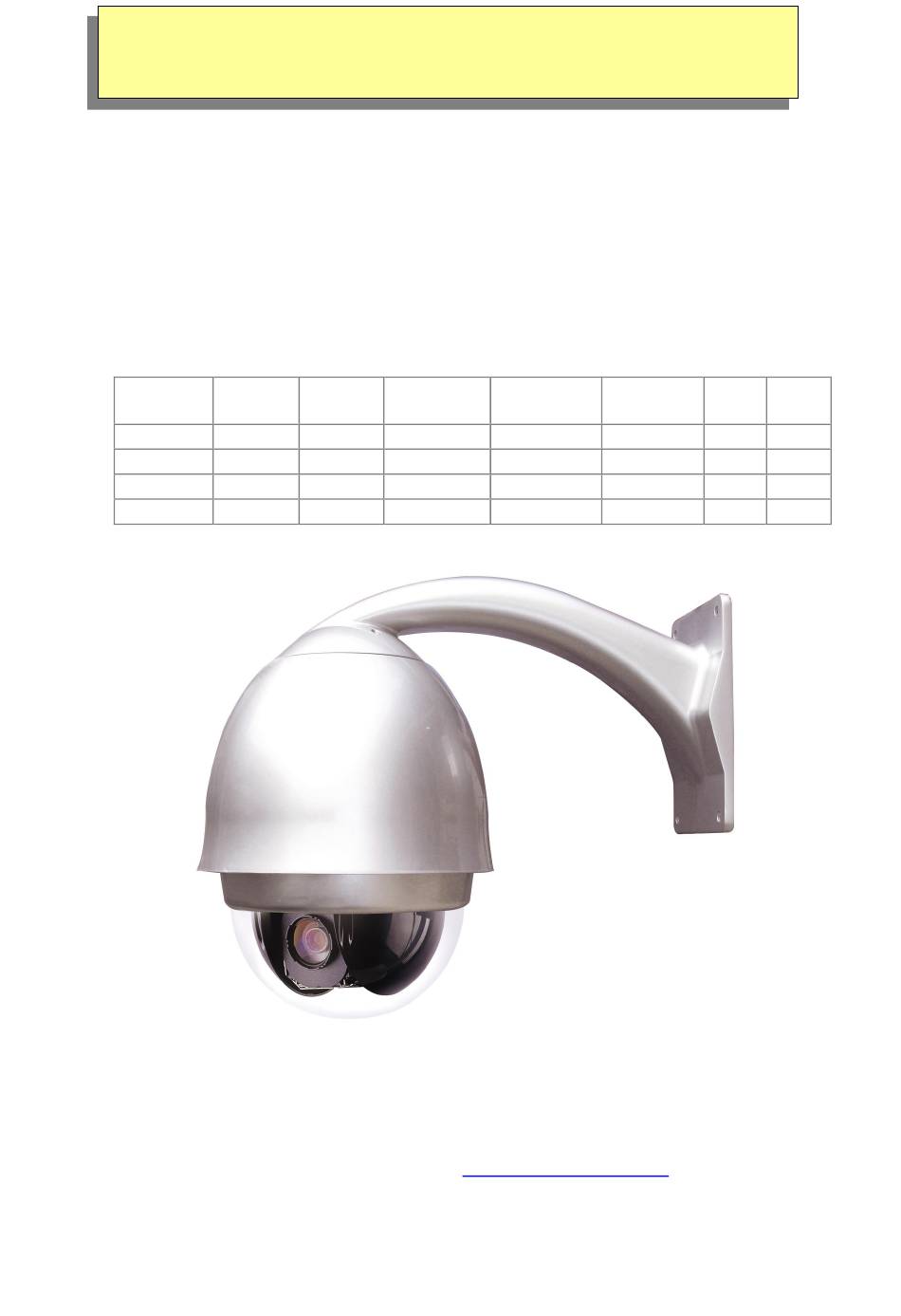

Installation and Operation Manual
PTZ605
HIGH Speed PTZ Dome with 4 alarm inputs
Optical
Zoom
Option F
Option J
Option K
Option N
Version 4
For updates to these instructions visit
excelPTZ
PTZ600 series
Iridium Silver /
Total
Day/Night
Zoom
22x
352x
22x
352x
27x
270x
30x
324x
range
PTZ608 Ivory
IR
Sensitive
YES
NO
YES
YES
YES
YES
YES
YES
www.excelPTZ.com
Last Revised 30/09/2011
Minimum
TVL
Nite
Lux
Devil
0.5
480
0.5
500
0.001
500
YES
0.0015
580
YES
NO
NO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZ600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for excelPTZ PTZ600 Series

Summary of Contents for excelPTZ PTZ600 Series

  • Page 1 Installation and Operation Manual PTZ600 series PTZ605 PTZ608 Ivory Iridium Silver / HIGH Speed PTZ Dome with 4 alarm inputs Optical Total Day/Night Minimum Nite Zoom Zoom Sensitive Devil Option F 352x Option J 352x Option K 270x 0.001...

  • Page 2: Table Of Contents

    Setting up a unique address in a dome Setup of the Protocol and the Default Baud Rate Using the PTZ730 keypad with the excelPTZ series Presets and other functions Patrols (Tours) – How to set them up and use them Auto Scan –...

  • Page 3: Safety Precautions

    Please read this operation manual carefully before installing and using this unit !!!! Please read the following; 1. Please read the operation manual carefully before installing and operating the product. 2. The actual dome requires a 24v AC power supply. The rated input voltage of the camera is 12V!!!! This gets its power from the dome and does not require a separate PSU.

  • Page 4: Key Functions

    KEY FUNCTIONS Description of Functions This intelligent dome camera is a hi-tech CCTV product, which incorporates a high-clarity colour camera. It has a panoramic variable speed PAN/TILT movement, a multifunctional decoder, a character generator and an on-board processor for logic handling. The dome is easy to connect, install, maintain and operate, and has many features.

  • Page 5: Special Dome Features - 4 Channel Alarm Input Activation - Modify Dome Address By Rs485

    4. NiteDevil Feature a. The NiteDevil camera module incorporates a slower shutter speed allowing the camera to see more at low light levels. This camera option is best suited to slow moving scenes or stationary scenes. There are two camera modules with NiteDevil features and these are the K and N modules.

  • Page 6: Getting The Dome Up & Running

    Getting the dome up and running! You MUST connect up the dome and your control equipment on a workbench or kitchen table before the actual site installation and CHECK YOU KNOW HOW TO INSTALL IT CORRECTLY!!!!!!!!!!!!!!!!!. By doing this you can set-up any DIP switches, adjust the camera, and learn about how it operates before taking it to site.
  • Page 7 Equipment Cable Needed Dome 1. Data signal CAT5 cable Keypad or You can also send the video signal back along a second pair in a CAT5 cable using baluns. Note you cannot send 24v AC power down CAT5. 2. Video signal RG59 or similar You can combine both the video and power into one cable if you...

  • Page 8: Rs485 Wiring Methods & Tips

    CAT 5 DOME CCT CAMERA 24V24VA 24V AC CAT5 Carries Video & LOCAL 240V --- Control Data Video & Power RG59+2 Video & Power DOME BALUN TRADITIONAL CAT5 Carrying Data CAMERA JUNCTION BOXES 240V CO-AX RG59 Free Lead Supplied KEYPAD MONITOR Many installation companies can get the power and video signal correct, but struggle with the control of the dome using the keypad or DVR using the RS485 data.
  • Page 9 PLEASE NOTE - Using inferior cables, or installing the dome in an environment with strong electromagnetic interference, or connecting a lot of PTZ domes to the same cable carrying the RS485 signal will reduce the maximum transmitting distance. 3. RS485 Connection methods METHOD 1 –...
  • Page 10 ..Main controller Daisy-Chain connection WITH SHORT SPURS for the RS485 PTZ control signal (one main radial with very short spurs to each dome off it, keeping the spurs to less than 10 meters) TIP - The connection of a 120 termination resistor: The termination resistor is ready fitted on the domes pcb, all you have to do set it is move the jumper from Pins 2 &3 to pins 1 &...

  • Page 11: Overcoming Rs485 Data Loss Using An Rs485 Distributor

    As the star configuration is not in conformity with the requirements of RS485 standards, problems such as signal reflections may arise, especially when there are long cable connections. The results are that control signals are decreased and the dome may not respond to, or just responds intermittently to the controller. If your STAR circuit is not too extensive with each spur in the region of 20-50 metres expect...
  • Page 12 the installation. Not forgetting you get more predictable results! The RS485 distributor (PTZ750) amplifies the RS485 control signal and distributes it evenly to 4 separate spurs, each spur can have up to 4 domes. This means that you could theoretically have up to 4 individual spurs of over 1000mtrs each to control up to 16 PTZ domes in total.

  • Page 13: Setting Up The Dome Camera

    Setting up the Dome Camera 1. Connection of the System There are many ways to wire up a PTZ system. If you have read the introduction at the beginning of these instructions you should have got a good idea what your options are.

  • Page 14: Rs485 Connection - Connecting The Keypad Or Dvr To The Dome

    summer but when winter kicks in and the dome’s current draw jumps from 400ma to 1.25A, an inadequate power supply or a cable with too much voltage drop may stop the dome from working properly. When winter comes don’t be suddenly caught off guard when your customer rings you to say the dome has suddenly packed in because it’s gone cold!! A popular way to power the domes is using our COMPOSITE VIDEO cable (or shotgun as its also known) as this cable can carry the power to the dome and the video...
  • Page 15 PTZ730 keypad The PTZ730 and PTZ700 are two keypads that can be used with the PTZ600 series. On the rear of the keypads you will see the RS485 connections. Ensure they are connected correctly i.e the RS485 + A line and the RS485 – B line.

  • Page 16: Connecting The Video Out Of The Dome

    If you use cores from two different pairs in the CAT5 cable you will not get the benefit of the shielding effect of the cable twists and the dome will function erratically. You must always use a core from a PAIR, not two cores from two different pairs!! Connecting the video out of the dome.
  • Page 17 24V AC INPUT RS485 RS485 - ‘B’ + ‘A’ RS485 INPUT ON Last Revised 30/09/2011...

  • Page 18: If You Are Using More Than One Dome On A Site

    If you’re using more than one dome on a site Each dome has a unique “address” so that if you are using more than one on a site the keyboard “talks” to the right dome when you want it to PTZ. If you only have the one dome on the site then the default “address” of “1”...

  • Page 19: Setup Of The Protocol And The Default Baud Rate

    Dome ID-CODE Status Address DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9 DIP-10 … … … … … … … … … … … 1023 Table 1 2. Setup of the Protocol and the Default Baud Rate. As shown in Table 2, SW2 is used to set the protocol of communication and the baud rate used by the dome camera.
  • Page 20 Some protocols and the states of the coding switches of normal baud rates of these protocols are shown as follows: NEON/ 9600Bps PANASONI C/ 9600Bps B01 9600Bps PELCO - D/ 2400Bps KALATEL/ 4800Bps PELCO-P/D 2400Bps PELCO - P/ 4800Bps ALEC/ 9600Bps PELCO-P/D 4800Bps PELCO - P/ 9600Bps Ul t r ak/ 9600Bps...

  • Page 21: Using The Ptz730 Keypad With The Excelptz Series

    Using the PTZ730 keypad with the excelPTZ series NOTE 1: For more detailed instructions in setting up the keypad or using one of our other keypads, please refer to the instruction manual supplied with the product. NOTE 2: The PTZ730 keypad requires you to press the function key first followed by the value e.g <CAM>...

  • Page 22: Presets And Other Functions

    PRESETS and other functions. The dome has up to 128 presets that once programmed with stay in the domes non-volatile memory so they will be retained even after a power cut. What is a preset? A preset is a particular area or object that the dome was looking at and has been stored into its memory so when the preset is “called-up”...

  • Page 23: Patrols (Tours) - How To Set Them Up And Use Them

    Patrols (Tours) – How to set them up and use them A patrol (tour) is simply a collection of at least three preset camera locations that are run in sequence with the dome stopping at each location for a brief period of time and then moving on to the next preset. For example, you could use a patrol so that an outside dome camera points at a gate, then at a side doorway, then zooms out to get an overall shot of a car park and finally zooming in on a delivery bay, before repeating the whole cycle again.
  • Page 24 Setting the Patrol (Tour) To setup the patrol/tour you need to enter the Advanced Menu System by selecting <CALL> 95 <Enter>on the keypad or <CALL> 64 <Enter>. (Call varies according to module type). You will see the Main Menu displayed on the screen. Enter the password to enter the menu.

  • Page 25: Auto Scan - How To Set It Up - Calling The Auto Scan

    Now exit the menu by moving the Joystick down, selecting EXIT and then moving the Joystick to the right to return to the Main Menu. Again use the Joystick to select EXIT and exit the Advanced Menu System by selecting the right pan movement. Calling the Patrol (Tour) There are two methods of initiating the patrol or tour.
  • Page 26 Enter the password to enter the menu. The Default password is 111111. See Advance Setup menu to change. You will see the Main Menu displayed on the screen. Using the joystick up/down direction movement, select the MOTION SETUP menu. Use the joystick pan right movement to enter this menu. In the AUTO SCAN menu select the scan number (maximum 3), then the speed.

  • Page 27: Record Pattern- What Is A Record Pattern

    RECORD PATTERN- What is a record pattern This dome has an option to store a record pattern. A record pattern consists of a continuous sequence of standard pan and tilt movements or lens commands recorded within a 200 second interval. A record pattern does not use presets. You can limit movement at a required position and pan and tilt within the 200 second time restriction.
  • Page 28 Using the joystick up/down direction movement, select the MOTION SETUP menu. Use the joystick pan right movement to enter this menu. STEP 1 - In the PATTERNS menu select PATTERN NUMBER and enter number from 1 ~3 . Now select RECORD PATTERN. STEP 2 –...

  • Page 29: Using The Dome's Advanced Functions

    USING THE DOME’S ADVANCED FUNCTIONS- On Screen Graphics (OSD) – The PTZ605 series boasts six patrol (tour) options, an auto scan option and a record pattern option. All these can be configured using the OSD. To bring up the camera menu press <CALL> 95 <Enter> or <CALL> 64 <Enter> (varies with module type) . Note that entering Preset 01 twice within 4 seconds will also open the menu.

  • Page 30: Using The Menu System

    THE MENU SYSTEM Using the Menu System. This menu system allows the user to alter the dome menu instruction options and settings using a control keypad. This first page shows the initial main menu page and only describes the general functions. The following pages show the main menu option selected on the left hand side of the page and a breakdown of that menu page on the right hand side of the page.

  • Page 31: System Setup

    To access System Setup press the OPEN button on keypad or move the Joystick to the right. The menu below will be displayed. MAIN MENU SYSTEM SETUP SYSTEM SETUP DISPLAY SETUP SYSTEM INFORMATION CAMERA SETUP AUTO FLIP MOTION SETUP PROP PAN SPD PRIVACY MASK RESERVED ADVANCE SETUP...

  • Page 32: Display Setup

    Move the Joystick down to select Display Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU DISPLAY SETUP SYSTEM SETUP DISPLAY SETUP <CAMERA ID> <see 1 below> CAMERA SETUP <ANGLE DISPLAY>...

  • Page 33: Camera Setup

    Move the Joystick down to select Camera Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU CAMERA SETUP SYSTEM SETUP D-ZOOM DISPLAY SETUP DISPLAY CAMERA SETUP FOCUS MODE AF AUTO MOTION SETUP AUTO...
  • Page 34 <WB/AE SETUP> WB/AE SETUP White Balance Mode/Automatic Exposure. AE MODE AUTO SHUTTER WB MODE AUTO R GAIN B GAIN WDR MODE ON / OFF <EXPCOMP SETUP> RETURN AE MODE MANUAL / AUTO / SHUTTER Normally set to AUTO. SHUTTER Only available if AE MODE is set to SHUTTER 1 ~ 1000 WB MODE ATW / MANUAL / AUTO / INDOOR / OUTDOOR / ONEPUSH This option is used to set White Balance mode.

  • Page 35: Motion Setup

    Move the Joystick down to select Motion Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU MOTION SETUP SYSTEM SETUP <PRESETS> (1) DISPLAY SETUP <AUTOSCAN> (2) CAMERA SETUP <PATROL>...

  • Page 36: Patrols (Tours)

    SET START LIMIT To set the start position enter this menu item and then move the joystick to position the camera at the starting position and then press CLOSE to save the start position. SET END LIMIT To set the end position select this menu item and then move the joystick to position the camera at the end position and then press CLOSE to save the end position.

  • Page 37: Patterns

    RUN PATROL Click on this menu item and then press CLOSE to start patrol. CLEAR PATROL Click to clear a patrol. RETURN Returns to MOTION SETUP menu. <PATTERNS> (4) PATTERNS Allows recording of a pattern for up to 200 seconds. Up to 3 patterns can be recorded.

  • Page 38: Privacy Mask

    MAIN MENU PRIVACY MASK SYSTEM SETUP PRIVACY MASK DISPLAY SETUP MASK SHADE WHITE CAMERA SETUP DISPLAY MOTION SETUP EDIT MASK PRIVACY MASK RETURN ADVANCE SETUP SYSTEM RESET EXIT The feature is available on the camera module type “N”. PRIVACY MASK 01 ~ 08 Up to 8 privacy mask areas to be set according to camera options available.

  • Page 39: Advance Setup

    ADVANCE SETUP MAIN MENU SYSTEM SETUP <HOME SETUP> (1) DISPLAY SETUP <PASSWORD> CAMERA SETUP <CAM ID SETUP> (3) MOTION SETUP <FAN CONTROL> (4) PRIVACY MASK RESERVED ADVANCE SETUP <MORE> SYSTEM RESET RETURN EXIT <HOME SETUP> (1) HOME SETUP This option must not be confused with the Alarm function that can be set with different AUTO HOME timing settings.
  • Page 40 ADVANCE SETUP MAIN MENU SYSTEM SETUP <HOME SETUP> (1) DISPLAY SETUP <PASSWORD> CAMERA SETUP <CAM ID SETUP> (3) MOTION SETUP <FAN CONTROL> (4) PRIVACY MASK LANGUAGE ADVANCE SETUP SET NORTH POSITION SYSTEM RESET RETURN EXIT PASSWORD (2) PASSWORD This option allows password protection. PASSWORD MODIFY KEY * * * * * *...
  • Page 41 ADVANCE SETUP MAIN MENU SYSTEM SETUP <HOME SETUP> (1) DISPLAY SETUP <PASSWORD> CAMERA SETUP <CAM ID SETUP> (3) MOTION SETUP <FAN CONTROL> (4) PRIVACY MASK LANGUAGE ADVANCE SETUP SET NORTH POSITION SYSTEM RESET RETURN EXIT CAM ID SETUP (3) CAM ID SETUP This enters the software ID settings menu CAMERA S/N: 0001...
  • Page 42 ADVANCE SETUP MAIN MENU SYSTEM SETUP <HOME SETUP> (1) DISPLAY SETUP <PASSWORD> CAMERA SETUP <CAM ID SETUP> (3) MOTION SETUP <FAN CONTROL> (4) PRIVACY MASK RESERVED ADVANCE SETUP <MORE> SYSTEM RESET RETURN EXIT FAN CONTROL (4) FAN CONTROL To set the fan control menu settings. FAN ON / OFF / AUTO OPEN TEMP: The fan working conditions can be set.

  • Page 43: Advance Setup More - Shortcut Function For N Module Commands

    ADVANCE SETUP2 LANGUAGE (1) LANGUAGE: Set English or Chinese SET NORTH: SHORTCUT: SET NORTH (2) PAN SPEED Set direction for calculating Privacy Mask RETURN SHORTCUT (3) Set ON if you have the SONY N camera module. This option allows the user to start a Tour, Autoscan or Pattern using a keyboard or DVR with PTZ control.

  • Page 44: Using The N Camera Module

    Using the N camera module If the N module camera is used, there are different preset functions available. Note that you must have the Shortcut option set to ON in the Advanced menu for all call functions to work. CALL 64 PTZ MENU CALL 65 START TOUR 1...

  • Page 45: Controlling One Camera Then Another

    Controlling one camera then another. If you look at the image of the LCD display you can see the CAM=001 indicates that the keyboard is ready to talk to camera with address 1. In the dome the address 1 is set as default in the factory. You need to alter the DIP- switches within the domes to address 2, 3 etc if you have multiple domes on the same site, refer to the previous instructions how to set the DIP Switches.

  • Page 46: System Installation

    System Installation 1. Type of Installation a) Wall Installation 103. 4 Figure 1 b) Ceiling Installation Figure 2 c) Indoor Ceiling Installation (Figure 3) Indoor Embedded Installation (Figure 4) Last Revised 30/09/2011...
  • Page 47 2. Installation Procedure (using wall installation as an example) Preparation before installation --- Dome settings Turn the dome cover anti-clockwise (Figure 5) and remove it (Figure 6). open Figure 5 Figure 6 b) Set the dome protocol, baud rate and address as per earlier instructions. c) Refit the dome cover.
  • Page 48 Installation of the bracket a) Make four M8 holes in the wall, and put the four M8 bolts into the holes as Figure 8. b) Make a hole at the center of the four holes to connect the cable of the bracket as Figure 8.
  • Page 49 Lock the housing as Figure 12. Fit the dome retaining screws as Figure 13. Q1: M 4× 18 st ai nl ess st eel hexagon socket scr ew Figure 12 Figure 13 Connect the control cable as Figure 14 RED CO NNECTO R RED LI NE(AC24V I N) ( PO W ER I N) BLACK LI NE(AC24V I N)
  • Page 50 Indoor Ceiling Installation a) Install the pedestal on the base plate (as Figure 15). Figure 15 Figure 16 c) Fix the pedestal assembly on the ceiling (Figure 16). d) Match the “MARK” on the ball with the notch on the pedestal, push the ball upward to the end and rotate clockwise until it clicks (as shown in Figure 17).
  • Page 51 Indoor embedded installation Note: To fit this dome into a ceiling, the thickness of the ceiling must be less than 1.65 inches (4.2 cm) but thicker than 0.38 inches (0. 8cm). The ceiling must withstand 4 times the load of the dome weight. Cut out the ceiling template supplied as per figure 19 and mark the centre point of the dome position on the ceiling.
  • Page 52 Cut out the ceiling material using an appropriate cutting tool (Figure 21) Figure 21 Fit the “installation pedestal” with the embedded mount (Figure 22) Q1A: M 4× 12 count er sunk head scr ew ( 3 pcs) Pedestal Figure 22 For easy installation, adjust the three swing mounting clips so that the distance between the clips and the flange is a little longer than ceiling thickness.

  • Page 53: Alarm Input Cable Connections

    I ndoor dr op cel i ng i nst al l at i on br acket Sw i ng m ount i ng Cl i p Cei l i ng Fl ange Decoration Ring Figure 23 Alarm Input cable connections: Figure 24 RED( ALARM-1 IN(...

  • Page 54: Channel Alarm Input Activation & Single Channel Alarm Output

    Note: The alarm input must be a zero volt switch. Any voltage signals will damage the dome. When multiple alarm signals are triggered the dome will respond to them, one by one, and the response time interval will be 2 seconds. When more than one alarm signal is received, the dome will not respond to “line scanning”, “tracking”...

  • Page 55: Connecting The Input Alarm Devices

    Connecting the Input Alarm devices You will need to decide how many alarm channels will be utilised. For each alarm channel you will need a pair of cable connections and it is recommended that a CAT5 twisted pair be utilised. Connect one core to the selected input alarm channel and the other to the ground (GND) connection.

  • Page 56: Connecting The Output Alarm

    Connecting the Output Alarm In addition to the alarm inputs, this dome will activate an alarm output if an alarm input is triggered. There are two connections for the alarm output, a common and either a normally open or a normally closed connection. Again this is a 0 volt switch and could be used for example to close a circuit to an audible alarm, lighting or other warning devices.

  • Page 57: Appendix A: Lightning Proof And Surge Signal Proof

    Appendix A: Lightning Proof and Surge Signal Proof This product adopts TVS lightning proof technology to prevent damage by a lightning strike below 1500 W and surge impulse signals. However it is also necessary to ensure that the following precautions are taken to ensure electrical safety: Keep the communication cables at least 50 meters away from high voltage equipment or cables.

  • Page 58: Appendix B: General Information - The Cleaning Of Dome Cover/Troubleshooting

    Appendix B: General Information The Cleaning of Clear Dome Cover To obtain constant clear images, the user should clean the dome cover periodically. Be very careful when cleaning. Hold the dome cover ring only to avoid touching the acrylic dome cover. The acid from fingerprints will corrode the coating and any scratches on the dome cover may cause distorted or poor images.
