OPTION J
Doc PTZ053.doc
PTZ053
22x IR HR PTZ Module
rev : 1.0

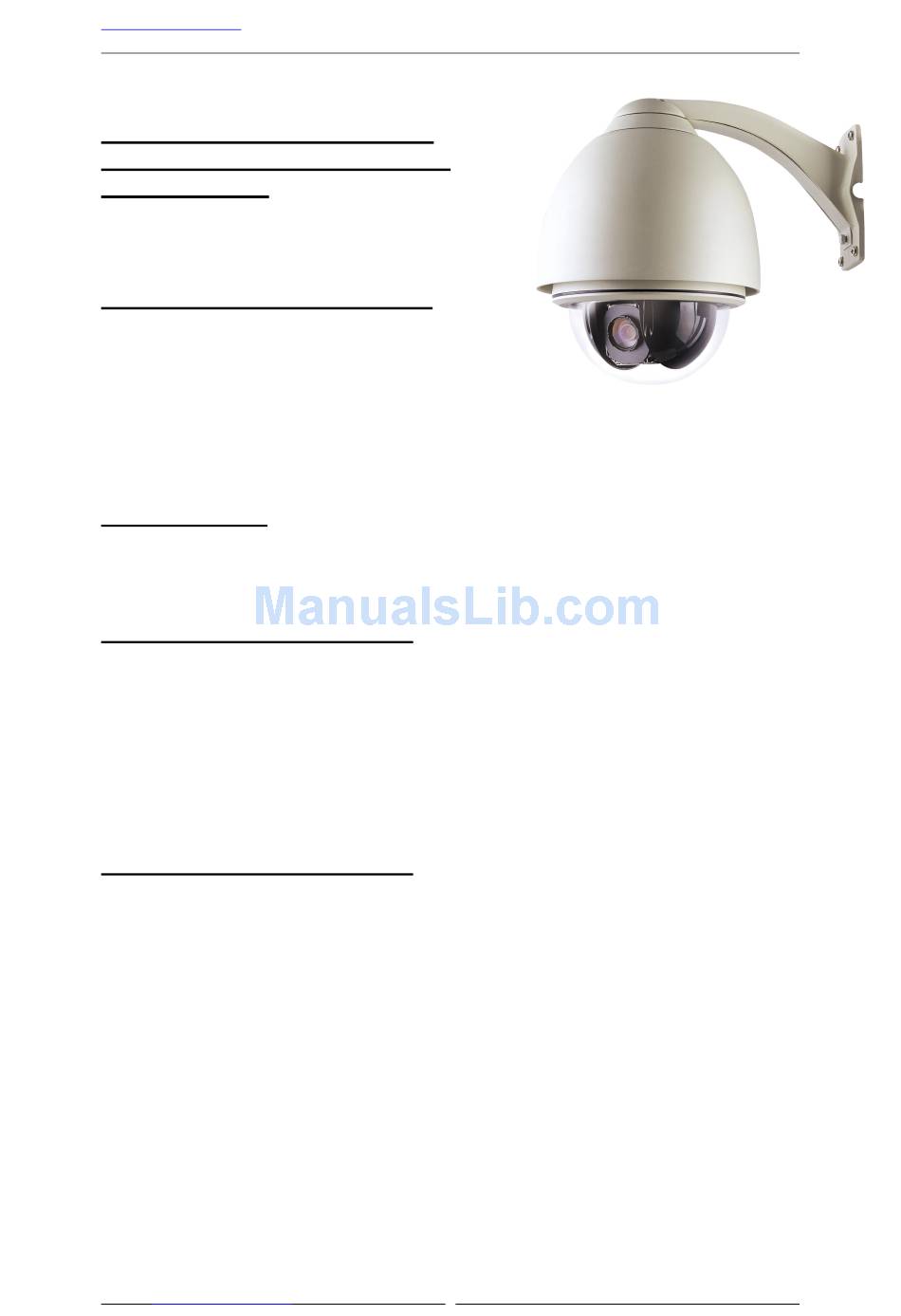

The 22x IR High Resolution PTZ
module for the Pan, Tilt and Zoom
ranges of domes.
Camera Instruction Manual.
1. OSD Navigation.
The way to navigate to the menu options is dependant on the model of PTZ that the
module has been installed in.
1.1 The PTZ300 and PTZ500 Series.
When the module is installed in the PTZ300 and PTZ500 series the OSD menu is
accessed by CALL 57 from a keypad that is connected to the PTZ via RS485 comms.
Navigation is done by the TELE & WIDE buttons and selection is made with the
NEAR & FAR buttons.
To exit the OSD menu use CALL 57 on the keypad.
1.2 The PTZ400 and PTZ600 Series.
When the module is installed in the PTZ400 and PTZ600 series the OSD menu is
accessed by CALL 95 from a keypad that is connected to the PTZ via RS485 comms.
This will enter the menu system of the PTZ. Go to the CAMERA MENU,
navigation is done by the joystick UP & DOWN and selection is made by moving the
joystick RIGHT. Once in the camera menu go to the MENU OF CAM option and
move the joystick RIGHT. Now you are in the module menu, navigation is done by
the TELE & WIDE buttons and selection is made with the NEAR & FAR buttons.
To exit the OSD menu press the CLOSE button on the keypad.
