the
excelPTZ
range

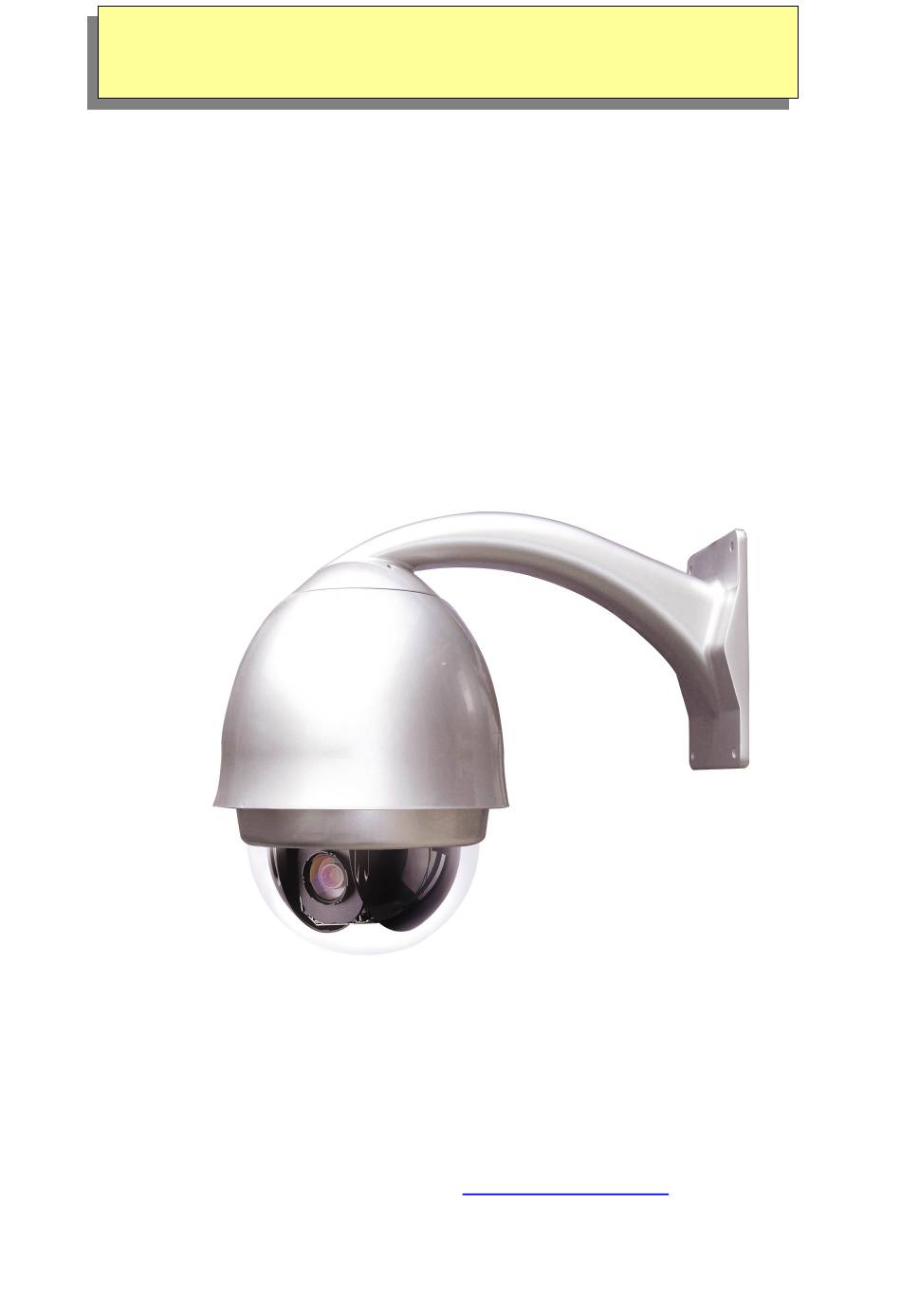

Installation and Operation Manual
Iridium Silver HIGH Speed PTZ Dome
with alarm inputs
Models covered (PTZ680 – PTZ699)
PTZ680 22x HI-SP IRIDIUM
PTZ685 22x IR HI-SP IRIDIUM
PTZ688 22x IR-HR HI-SP IRIDIUM
PTZ690 35x HI-SP IRIDIUM
Version 1.1
For updates to these instructions visit
www.excelPTZ.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZ680 and is the answer not in the manual?

Questions and answers

Related Manuals for excelPTZ PTZ680

Summary of Contents for excelPTZ PTZ680

  • Page 1 Installation and Operation Manual Iridium Silver HIGH Speed PTZ Dome with alarm inputs Models covered (PTZ680 – PTZ699) PTZ680 22x HI-SP IRIDIUM PTZ685 22x IR HI-SP IRIDIUM PTZ688 22x IR-HR HI-SP IRIDIUM PTZ690 35x HI-SP IRIDIUM Version 1.1 For updates to these instructions visit www.excelPTZ.com...

  • Page 2: Table Of Contents

    Setting up a unique address in a dome Setup of the Protocol and the Default Baud Rate Using the PTZ730 keypad with the excelPTZ series Presets and other functions Patrols (Tours) – How to set them up and use them Auto Scan –...

  • Page 3: Safety Precautions

    Please read this operation manual carefully before installing and using this unit !!!! Please read the following; 1. Please read the operation manual carefully before installing and operating the product. 2. The actual dome requires a 24v AC power supply. The rated input voltage of the camera is 12V!!!! This gets its power from the dome and does not require a separate PSU.

  • Page 4: Key Functions

    KEY FUNCTIONS Description of Functions This intelligent dome camera is a hi-tech CCTV product, which incorporates a high-clarity colour camera. It has a panoramic variable speed PAN/TILT movement, a multifunctional decoder, a character generator and an on-board processor for logic handling. The dome is easy to connect, install, maintain and operate, and has many features.

  • Page 5: Special Dome Features - 4 Channel Alarm Input Activation & Channel Alarm Output

    illuminance. 4. Functions of the Camera (icons can be displayed when the OSD option ON) a. Focus Control Mode: the user can adjust the focus of the camera manually. When the camera is in the near focus state, the icon appears on the screen;...

  • Page 6: Getting The Dome Up & Running

    altered e.g HID = 003, the SID will also change to 003. Getting the dome up and running! You MUST connect up the dome and your control equipment on a workbench or kitchen table before the actual site installation and CHECK YOU KNOW HOW TO INSTALL IT CORRECTLY!!!!!!!!!!!!!!!!!. By doing this you can set-up any DIP switches, adjust the camera, and learn about how it operates before taking it to site.
  • Page 7 Equipment Cable Needed Dome 1. Data signal CAT5 cable Keypad or You can also send the video signal back along a second pair in a CAT5 cable using baluns. Note you cannot send 24v AC power down CAT5. 2. Video signal RG59 or similar You can combine both the video and power into one cable if you...

  • Page 8: Rs485 Wiring Methods & Tips

    CAT 5 DOME CCT CAMERA 24V24VA 24V AC CAT5 Carries Video & LOCAL 240V --- Control Data Video & Power RG59+2 Video & Power DOME BALUN TRADITIONAL CAT5 Carrying Data CAMERA JUNCTION BOXES 240V CO-AX RG59 Free Lead Supplied KEYPAD MONITOR Many installation companies can get the power and video signal correct, but struggle with the control of the dome using the keypad or DVR using the RS485 data.
  • Page 9 PLEASE NOTE - Using inferior cables, or installing the dome in an environment with strong electromagnetic interference, or connecting a lot of PTZ domes to the same cable carrying the RS485 signal will reduce the maximum transmitting distance. 3. RS485 Connection methods METHOD 1 –DAISY CHAIN CONNECTION.
  • Page 10 ..Main controller Daisy-Chain connection WITH SHORT SPURS for the RS485 PTZ control signal (one main radial with very short spurs to each dome off it, keeping the spurs to less than 10 meters) TIP - The connection of a 120 termination resistor: The termination resistor is ready fitted on the domes pcb, all you have to do set it is move the jumper from Pins 2 &3 to pins 1 &...

  • Page 11: Overcoming Rs485 Data Loss Using An Rs485 Distributor

    As the star configuration is not in conformity with the requirements of RS485 standards, problems such as signal reflections may arise, especially when there are long cable connections. The results are that control signals are decreased and the dome may not respond to, or just responds intermittently to the controller. If your STAR circuit is not too extensive with each spur in the region of 20-50 metres expect...
  • Page 12 the installation. Not forgetting you get more predictable results! The RS485 distributor (PTZ750) amplifies the RS485 control signal and distributes it evenly to 4 separate spurs, each spur can have up to 4 domes. This means that you could theoretically have up to 4 individual spurs of over 1000mtrs each to control up to 16 PTZ domes in total.

  • Page 13: Setting Up The Dome Camera

    Setting up the Dome Camera 1. Connection of the System There are many ways to wire up a PTZ system. If you have read the introduction at the beginning of these instructions you should have got a good idea what your options are.

  • Page 14: Rs485 Connection - Connecting The Keypad Or Dvr To The Dome

    The following table gives you an indication of the maximum lengths that you can achieve using this cable the composite cable and the PTZ680 – PTZ690 range domes. Power cable requirement – Assuming a starting voltage of 24V A.C is applied at the PSU end.
  • Page 15 The PTZ730 and PTZ700 are two keypads that can be used PTZ730 keypad with the PTZ680 series. On the rear of the keypads you will see the RS485 connections. Ensure they are connected correctly i.e the RS485 + A line and the RS485 – B line.

  • Page 16: Connecting The Video Out Of The Dome

    If you use cores from two different pairs in the CAT5 cable you will not get the benefit of the shielding effect of the cable twists and the dome will function erratically. You must always use a core from a PAIR, not two cores from two different pairs!! Connecting the video out of the dome.
  • Page 17 24V AC INPUT RS485 RS485 - ‘ B’ + ‘ A’ RS485 INPUT ON...

  • Page 18: If You Are Using More Than One Dome On A Site

    If you’ re using more than one dome on a site Each dome has a unique “ address” so that if you are using more than one on a site the keyboard “ talks” to the right dome when you want it to PTZ. If you only have the one dome on the site then the default “ address” of “...

  • Page 19: Setup Of The Protocol And The Default Baud Rate

    Dome ID-CODE Status Address DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9 DIP-10 … … … … … … … … … … … 1023 Table 1 2. Setup of the Protocol and the Default Baud Rate. As shown in Table 2, SW2 is used to set the protocol of communication and the baud rate used by the dome camera.
  • Page 20 Some protocols and the states of the coding switches of normal baud rates of these protocols are shown as follows: NEON/ 9600Bps PANASONI C/ 9600Bps PELCO - D/ 2400Bps KALATEL/ 4800Bps PELCO - P/ 4800Bps ALEC/ 9600Bps PELCO - P/ 9600Bps Ul t r ak/ 9600Bps Setup of the Baud Rate of Communication.

  • Page 21: Using The Ptz730 Keypad With The Excelptz Series

    Using the PTZ730 keypad with the excelPTZ series NOTE 1: For more detailed instructions in setting up the keypad or using one of our other keypads, please refer to the instruction manual supplied with the product. NOTE 2: The PTZ730 keypad requires you to press the function key first followed by the value e.g <CAM>...

  • Page 22: Presets And Other Functions

    PRESETS and other functions. The dome has up to 128 presets that once programmed with stay in the domes non-volatile memory so they will be retained even after a power cut. What is a preset? A preset is a particular area or object that the dome was looking at and has been stored into its memory so when the preset is “...

  • Page 23: Patrols (Tours) - How To Set Them Up And Use Them

    Patrols (Tours) – How to set them up and use them A patrol (tour) is simply a collection of at least three preset camera locations that are run in sequence with the dome stopping at each location for a brief period of time and then moving on to the next preset. For example, you could use a patrol so that an outside dome camera points at a gate, then at a side doorway, then zooms out to get an overall shot of a car park and finally zooming in on a delivery bay, before repeating the whole cycle again.
  • Page 24 Setting the Patrol (Tour) To setup the patrol/tour you need to enter the Advanced Menu System by selecting <CALL> 95 <Enter>on the keypad or <CALL> 64 <Enter>. (Call varies according module type) You will see the Main Menu displayed on the screen. Enter the password to enter the menu.
  • Page 25 add the additional preset positions in the necessary SET PATROL table sequence. Now exit the menu by moving the Joystick down, selecting EXIT and then moving the Joystick to the right to return to the Main Menu. Again use the Joystick to select EXIT and exit the Advanced Menu System by selecting the right pan movement.

  • Page 26: Auto Scan - How To Set It Up - Calling The Auto Scan

    AUTO SCAN- How to set it up Auto-scan scans between two points. These are not presets as per the patrol(tour) facility but auto scan selection points. You may program only one auto scan. STEP 1 – Select the required camera by pressing the <CAM> button and then entering <camera address>...

  • Page 27: Record Pattern- What Is A Record Pattern

    In the PROGRAM menu select RUN AUTO PAN <speed>. The speed is selected using the Joystick pan left or pan right. The following speed selection can be made: FAST / NORMAL / SLOW / -FAST / -NORMAL / -SLOW. There are 6 speed selections. The first three relate to scans up to 180°...
  • Page 28 STEP 1 – Select the required camera by pressing the CAM button and entering <camera address> followed by <Enter> on the keypad. Position the camera where you wish to start the record pattern sequence. Enter the Advanced Menu System by selecting <CALL> 95 <Enter> or <CALL> 64 <Enter> on the keypad. Enter the password to enter the menu.

  • Page 29: Using The Dome' S Advanced Functions

    USING THE DOME’ S ADVANCED FUNCTIONS- On Screen Graphics (OSD) – The PTZ680 series boasts six patrol (tour) options, an auto scan option and a record pattern option. All these can be configured using the OSD. To bring up the camera menu press <CALL> 95 <Enter> or <CALL> 64 <Enter> (varies with module type) .

  • Page 30: Using The Advanced Menu System

    THE ADVANCED MENU SYSTEM Using the Advanced Menu System. This menu system allows the user to alter the dome menu instruction options and settings using a control keypad. This first page shows the initial main menu page and only describes the general functions. The following pages show the main menu option selected on the left hand side of the page and a breakdown of that menu page on the right hand side of the page.

  • Page 31: Display Setup

    DISPLAY SETUP To access Display Setup press the OPEN button on keypad or move the Joystick to the right. The menu below will be displayed. MAIN MENU DISPLAY SETUP 1. DISPLAY SETUP ID DISPLAY 2. CAMERA SETUP ID POS TOP-L 3.
  • Page 32 CAM DISPLAY ON / OFF When this is set to ON the camera screen will be opened. To toggle the settings move the Joystick to the right or press the OPEN button. To return to Main Menu use the Joystick down movement to RETURN and press the OPEN button on the keypad or move the Joystick to the right.

  • Page 33: Camera Setup

    CAMERA SETUP Move the Joystick down to select Camera Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. CAMERA SETUP MAIN MENU 1. DISPLAY SETUP SLOWSHUTTER AUTO 2. CAMERA SETUP BACK LIGHT 3.
  • Page 34 D-ZOOM ON / OFF Setup of digital zooming. This allows the digital zoom function to be switched on or off. To toggle the settings move the Joystick to the right or press the OPEN button. To return to Main Menu use the Joystick down movement to RETURN and press the OPEN button on the keypad or move the Joystick to the right.

  • Page 35: Control Setup

    CONTROL SETUP Move the Joystick down to select Control Setup and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU CONTROL SETUP 1. DISPLAY SETUP AUTO FLIP 2. CAMERA SETUP ALARM 3.
  • Page 36 HOME OPTION enter HOME OPTION sub menu To enter this option move the Joystick to the right. The submenu below will be displayed. AUTO HOME ON / OFF HOME OPTION When this is set to ON the dome camera will return to home if there has been no action in a period of time.

  • Page 37: Camera Mask Set

    CAMERA MASK SET MAIN MENU 1. DISPLAY SETUP CAMERA MASK SET 2. CAMERA SETUP MASK PRIVACY 3. CONTROL SETUP 4. CAMERA MASK SET MASK SHADE 5. PROGRAM REGION RETURN 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT MASK PRIVACY ON / OFF Set option to ON for Mask Privacy or OFF for none.

  • Page 38: Program

    PROGRAM Move the Joystick down to select Program and press the OPEN button or move the Joystick to the right. The menu below will be displayed. MAIN MENU PROGRAM 1. DISPLAY SETUP AUTO PAN START POS 2. CAMERA SETUP AUTO PAN END POS RUN AUTO PAN SLOW 3.
  • Page 39 0-9, A-Z, +, - and space. NOTE: The first character of the title must be 0-9 or A-Z. SET PATROL To edit data for a patrol/tour. Select sequence number of patrol by using the Joystick pan left or pan right, press OPEN button to select edit mode and edit using the up/down Joystick movement, setting the POS (preset number), the Joystick pan right to select the dome speed (SP) and the dwell time (TM) followed by the CLOSE button to save and exit.

  • Page 40: Pal/Ntsc Camera

    PAL CAMERA No sub-menu option for this. MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT PAL / NTSC CAMERA To switch from PAL to NTSC camera use the Joystick pan left or pan right.

  • Page 41: Cam Default Set

    No sub-menu option for this. CAM DEFAULT SET MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT CAM DEFAULT SET This option sets the camera default settings.

  • Page 42: Dome Reset

    DOME RESET MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT DOME RESET This option resets the DOME settings. The following display will be output OPERATION WILL Use the Joystick left or right pan to toggle between YES...

  • Page 43: Exit

    EXIT MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT Use the Joystick to select the option and press the CLOSE button to exit menu.

  • Page 44: System Installation

    System Installation 1. Type of Installation a) Wall Installation 103. 4 Figure 1 b) Ceiling Installation Figure 2 c) Indoor Ceiling Installation (Figure 3) Indoor Embedded Installation (Figure 4)
  • Page 45 2. Installation Procedure (using wall installation as an example) Preparation before installation --- Dome settings Turn the dome cover anti-clockwise (Figure 5) and remove it (Figure 6). open Figure 5 Figure 6 b) Set the dome protocol, baud rate and address as per earlier instructions. c) Refit the dome cover.
  • Page 46 Installation of the bracket a) Make four M8 holes in the wall, and put the four M8 bolts into the holes as Figure 8. b) Make a hole at the center of the four holes to connect the cable of the bracket as Figure 8.
  • Page 47 Lock the housing as Figure 12. Fit the dome retaining screws as Figure 13. Q1: M 4× 18 st ai nl ess st eel hexagon socket scr ew Figure 12 Figure 13 Connect the control cable as Figure 14 RED CONNECTOR RED LI NE(AC24V I N) ( POW ER I N) BLACK LI NE(AC24V I N)
  • Page 48 Indoor Ceiling Installation a) Install the pedestal on the base plate (as Figure 15). Figure 15 Figure 16 c) Fix the pedestal assembly on the ceiling (Figure 16). d) Match the “ MARK” on the ball with the notch on the pedestal, push the ball upward to the end and rotate clockwise until it clicks (as shown in Figure 17).
  • Page 49 Indoor embedded installation Note: To fit this dome into a ceiling, the thickness of the ceiling must be less than 1.65 inches (4.2 cm) but thicker than 0.38 inches (0. 8cm). The ceiling must withstand 4 times the load of the dome weight. Cut out the ceiling template supplied as per figure 19 and mark the centre point of the dome position on the ceiling.
  • Page 50 Cut out the ceiling material using an appropriate cutting tool (Figure 21) Figure 21 Fit the “ installation pedestal” with the embedded mount (Figure 22) Q1A: M 4× 12 count er sunk head scr ew ( 3 pcs) Pedestal Figure 22 For easy installation, adjust the three swing mounting clips so that the distance between the clips and the flange is a little longer than ceiling thickness.

  • Page 51: Alarm Input Cable Connections

    I ndoor dr op cel i ng i nst al l at i on br acket Sw i ng m ount i ng Cl i p Cei l i ng Fl ange Decoration Ring Figure 23 Alarm Input cable connections: Figure 24 RED( ALARM-1 IN(...

  • Page 52: Channel Alarm Input Activation & Single Channel Alarm Output

    Note: The alarm input must be a zero volt switch. Any voltage signals will damage the dome. When multiple alarm signals are triggered the dome will respond to them, one by one, and the response time interval will be 2 seconds. When more than one alarm signal is received, the dome will not respond to “...

  • Page 53: Connecting The Input Alarm Device

    Connecting the Input Alarm devices You will need to decide how many alarm channels will be utilised. For each alarm channel you will need a pair of cable connections and it is recommended that a CAT5 twisted pair be utilised. Connect one core to the selected input alarm channel and the other to the ground (GND) connection.

  • Page 54: Connecting The Output Alarm

    Connecting the Output Alarm In addition to the alarm inputs, this dome will activate an alarm output if an alarm input is triggered. There are two connections for the alarm output, a common and either a normally open or a normally closed connection. Again this is a 0 volt switch and could be used for example to close a circuit to an audible alarm, lighting or other warning devices.

  • Page 55: Appendix A: Lightning Proof And Surge Signal Proof

    Appendix A: Lightning Proof and Surge Signal Proof This product adopts TVS lightning proof technology to prevent damage by a lightning strike below 1500 W and surge impulse signals. However it is also necessary to ensure that the following precautions are taken to ensure electrical safety: Keep the communication cables at least 50 meters away from high voltage equipment or cables.

  • Page 56: Appendix B: General Information - The Cleaning Of Dome Cover/Troubleshooting

    Appendix B: General Information The Cleaning of Clear Dome Cover To obtain constant clear images, the user should clean the dome cover periodically. Be very careful when cleaning. Hold the dome cover ring only to avoid touching the acrylic dome cover. The acid from fingerprints will corrode the coating and any scratches on the dome cover may cause distorted or poor images.
