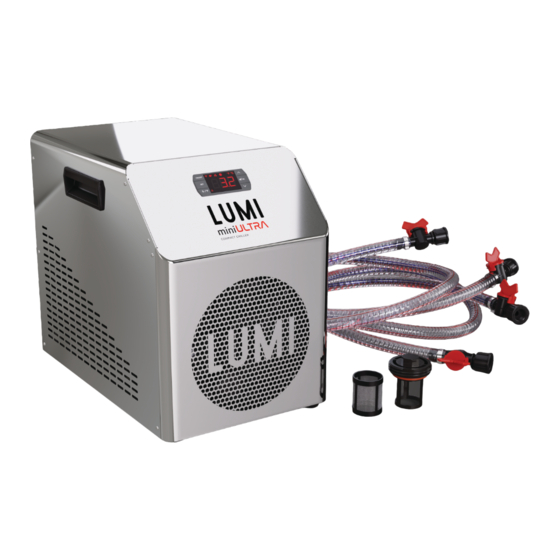

Compact chiller
Hide thumbs Also See for miniULTRA:

Advertisement

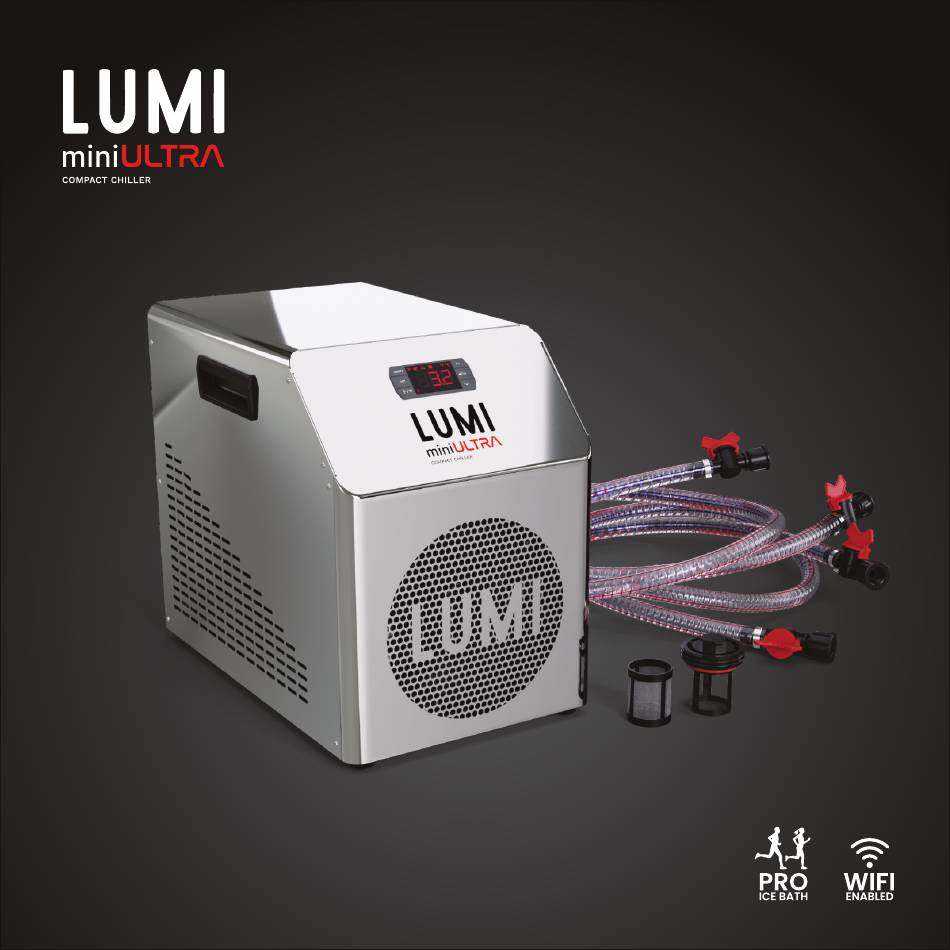

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the miniULTRA and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumi miniULTRA

  • Page 1 USER MANUAL...
  • Page 2 CAUTION Do not install the chiller in closets, cabinets, or other small unventilated places. ● Make sure there is 100cm clear space around the chiller vents when in use. ● Never cover the intakes or exhaust openings with clothes, towels, or other objects. ●...
  • Page 3 IP65 rated. Ensure the miniULTRA™ unit is kept dry at all times, do not immerse, splash or spray the unit with water. If the unit does get wet, unplug it immediately and do not use.
  • Page 4 USING THE WIFI CONNECTED MOBILE APP You can use the Tuya Smart or Smart Life mobile app to control your miniULTRA™ unit via WiFi. Download the app from the respective app store for your device. Use the QR Code below to start now.
  • Page 5: Customer Support

    1. First find a suitable ventilated area and flat solid surface to unpack and set up. 2. Complete the steps in the QUICK START GUIDE to assemble your LUMI miniULTRA™ unit. 3. Read carefully through this user manual before using the LUMI miniULTRA™ unit.
  • Page 6 TRUST THE PROCESS We always end up right where we are supposed to be, right when we are meant to be there. Sometimes we just need a little time to recover. #lumitherapy...
  • Page 7 5. Your LUMI Recovery™ ice bath can now be filled with cold or hot water. 6. Never fill your LUMI Recovery™ ice bath to more than ⅔ full so to compensate for your body mass and displacement of water when you enter. It's always best to start ½ full and then adjust afterwards.
  • Page 8: Water Filter

    The LUMI miniULTRA™ not only chills but helps keep your ice bath water clean with a washable water filter. PLUG & PLAY Quality built hoses easily connect between the LUMI miniULTRA™ and the LUMI Recovery PRO ice bath, circulating fresh, clean, cold water.
  • Page 9: Super Cooling

    QUALITY BUILD The LUMI miniULTRA™ unit is the industry's best mini chiller and filter combination, low maintenance, made to last, with insulated housing and quality built components. SUPER COOLING The LUMI miniULTRA™ unit can chill the water down to lows of 3°C (37°F).
  • Page 11 LCD CONTROL PANEL INTRODUCTION* Power ON/OFF WiFi ON/OFF Set temperature / Program menu Water pump Change units (°C or °F) / WiFi Up arrow key (+) Compressor Ok (save and exit) / lock screen Celsius or Fahrenheit units Down arrow key (-) Screen lock * LCD control panel may differ slightly in color, shape or functionality.
  • Page 12: Program Menu

    POWER ON AND OPERATION 1. Press the button to turn on the miniULTRA™ chiller (hold to turn off). ON/OFF 2. Press to adjust the required temperature (3°C - 45°C), press to confirm. 3. Press and hold the button for 3 seconds to lock and unlock the screen.
  • Page 13: Fault Codes

    Low water temperature alarm (below 0°). Water temperature alarm (above 55°). *Mobile phone not included. Tuya Smart & Smart Life mobile apps are both 3rd party apps, LUMI accepts no responsibility for incompatibility or issues when using this with your LUMI miniULTRA™ unit.
  • Page 14 PAIRING THE TUYA MOBILE APP TO THE miniULTRA™ CHILLER Ensure your mobile WiFi is switched on Open the Tuya app (or Smart Life) on your Apple iOS/Android phone Select 'Add device' (app auto-detects if the chiller is in pairing mode,...
  • Page 15: Maintenance, Cleaning & Storage

    Never clean your miniULTRA™ unit with strong bleach-based detergents. To empty your miniULTRA™ unit, use the drain tap located at the rear of the unit. Take care with the drain tap, don't force it and make sure it is fully closed after use.
  • Page 16: Specifications

    SPECIFICATIONS Model No. LUMI miniULTRA Chiller unit (LM-03-OC) Power Supply AC220-240V 50/60Hz Input Power 350W Compressor Power 250W Cooling Capacity 770W Cooling Function Heating function Refrigerant R134A Water Temp. 3 - 42°C / 37.4 - 107.6°F Water Filter Installed Circulation Pump...
  • Page 17 SPECIFICATIONS CONTINUED Model No. LUMI miniULTRA Chiller unit (LM-03-OC) 50 ≤ 3.0H Water Volume & Cooling Time 100 ≤ 5.5H (23°C to 5°C) 150 ≤ 9.0H For reference only Above data based on testing in closed insulated ice barrel, 28°C room temperature Suitable for indoor &...
  • Page 18 HOW LONG SHOULD YOU STAY IN COLD WATER? Cold water therapy works best with the right combination of time and temperature. For example, if you are in water with a temperature of 10°C, we would recommend you stay for no more than 10mins.
  • Page 19: Product Specifications

    R134A refrigerant Safety shutoff Specifications Portable 'all-in-one' contained unit WiFi enabled remote control system (mobile app) Self-priming circulation pump Washable particle water filter Cools water down to 3°C (37°F) Minimum working temperature -10°C (14°F) © Lumi Therapy Ltd. Made in China...
  • Page 20 THERE Access our library of free personal training videos and guides on our website to learn ARE NO how to get the most out of your LUMI product LIMITS and achieve the results you want. lumitherapy.co.uk @lumi.therapy @Lumitherapyuk...
