Summary of Contents for Lumi thermoCT2

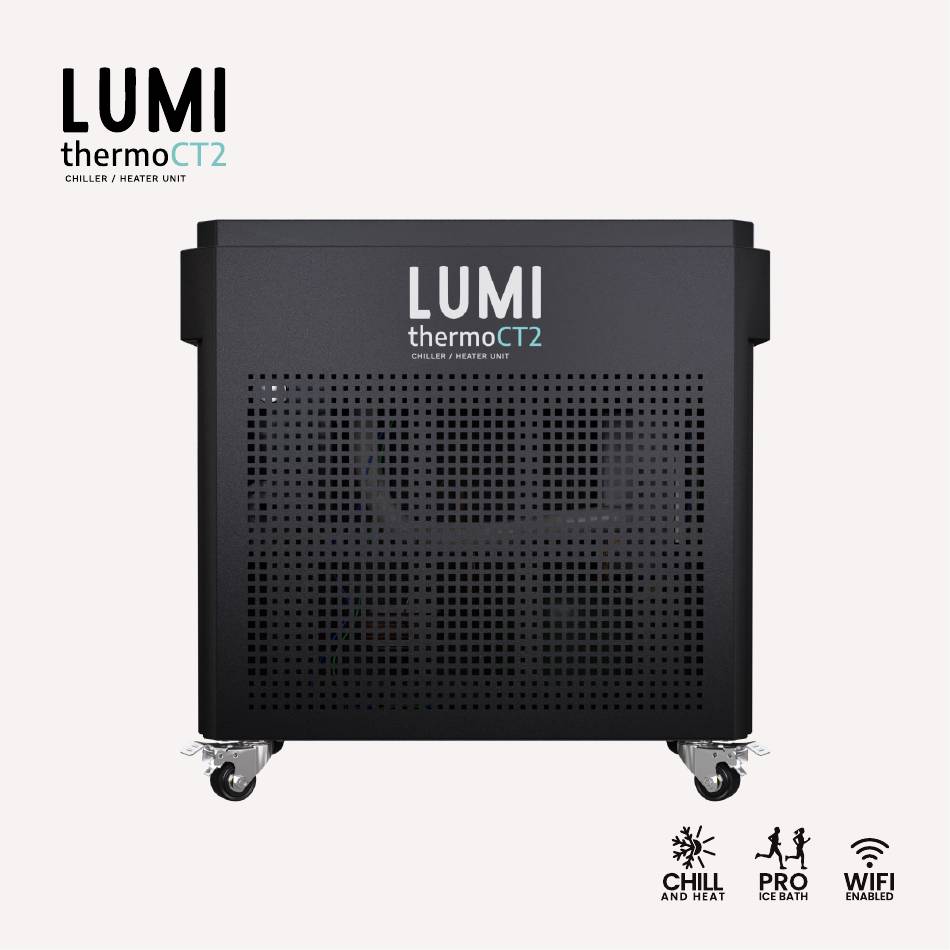

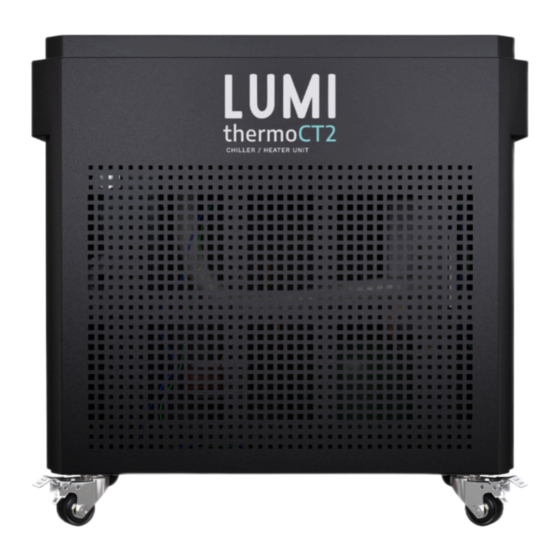

- Page 1 USER MANUAL...
- Page 2 CAUTION ● Do not install the chiller in closets, cabinets, or other small unventilated places. ● Make sure there is 100cm clear space around the chiller vents when in use. ● Never cover the intakes or exhaust openings with clothes, towels, or other objects. ●...
- Page 3 WARNING Electricity is very dangerous, in order to prevent accidents or death please pay attention to safety and ensure you fully read this instruction manual before use. During and after transportation, the Thermo CT2 Unit must stay upright on a stable surface at all times.
- Page 4 WiFi. Download the app from the respective app store for your device. Use the QR Code below to start now. Please note: As these are both 3rd party apps, we accept no responsibility for incompatibility or issues when using this with your LUMI Thermo CT2 unit. Tuya Smart Smart Life At present, Tuya Smart can only support 2.4G WiFi signal.
-
Page 5: Customer Support
1. First find a suitable ventilated area and flat solid surface to unpack and set up. 2. Complete the steps in the QUICK START GUIDE to assemble your LUMI Thermo CT2™. 3. Read carefully through this user manual before using the LUMI Thermo CT2™. - Page 6 TRUST THE PROCESS We always end up right where we are supposed to be, right when we are meant to be there. Sometimes we just need a little time to recover. #lumitherapy...
- Page 7 LUMI Recovery Pod™ gets closer to full. ● Never fill your LUMI Recovery Pod™ to more than ⅔ full so to compensate for your body mass and displacement of water when you enter. It's always best to start ½ full and then adjust afterwards.
- Page 8 PLUG & PLAY Quality built hoses easily connect between the LUMI Thermo CT2 and the LUMI Recovery PRO ice bath, circulating fresh, clean, cold water.
- Page 9 QUALITY BUILD The Lumi Thermo CT2 unit is the industry's best chiller/ heater and filter combination, low maintenance, made to last, with insulated housing and quality built components. SUPER COOLING & HEATING The LUMI Thermo CT2 unit keeps the water as cool as 3°C (37°F), and can warm the water up to 42°C (107.6°F).
- Page 11 THERMO CT2 OPERATION GUIDE 1. Press to turn the Thermo CT2 on/off. will be displayed if there is an failure. 2. Press to enter the second screen. 6. Displays the current water flow. 3. Press for 3-5 seconds to lock, or unlock. 10 &...
- Page 12 TOUCH PANEL INTRODUCTION Adjust the Ozone working time interval: 0 mins, max 5 mins Adjust the screen brightness: min 10%, max 100% Adjust the screen sleep time: 0 mins, max 5 mins Adjust the screen lock time: 0 mins, max to 5 mins Press to return to previous screen Long press to enter the WiFi function (connect to Tuya or Smart Life) Press to show the help QR code, scan this for technical support...
- Page 13 ENABLE WIFI REMOTE CONTROL PAIRING MODE Turn on the Thermo CT2™ chiller Press the Settings button Press and hold the WiFi button for 3-5 seconds, until the WiFi button starts flashing POWER ON SOUND TEMPERATURE 1min Ozone time Screen brightness 5min Screen sleep...
- Page 14 PAIRING THE TUYA MOBILE APP TO THE THERMO CT2 CHILLER Ensure your mobile WiFi is switched on Open the Tuya app (or Smart Life) on your Apple iOS/Android phone Select 'Add device' (app auto-detects if the chiller is in pairing mode, else choose manually) Tuya Smart Choose your WiFi connection and enter your WiFi password...
-
Page 15: Maintenance, Cleaning & Storage
SAFETY & USAGE NOTES MAINTENANCE, CLEANING & STORAGE Never install your Thermo CT2™ unit in closets, cabinets, or other small unventilated places. Ensure there is 100cm clear space around the Thermo CT2™ unit vents when in use. Never leave the Thermo CT2™ unit outside in temperatures below 1°C. Never clean your Thermo CT2™... -
Page 16: Specifications
SPECIFICATIONS Model No. LUMI Thermo CT2 Chiller / Heater unit (LM-06-HC) Power Supply AC100-127V 60Hz AC220-240V 50/60Hz Input Power 640W 610W Compressor Power 505W 480W Cooling Capacity 1520W 1450W Heating Function Optional Cooling Function Refrigerant R410A Water Temp. 3 - 42°C / 37.4 - 107.6°F... - Page 17 SPECIFICATIONS CONTINUED Model No. LUMI Thermo CT2 Chiller / Heater unit (LM-06-HC) 50 ≤ 1.5H 50 ≤ 1.9H Water Volume & Cooling Time 100 ≤ 3.1H 100 ≤ 1.7H (23°C to 5°C) 200 ≤ 5.2H 200 ≤ 5.6H For reference only Above data based on testing in closed insulated ice barrel, 30°C room temperature...
- Page 18 HOW LONG SHOULD YOU STAY IN COLD WATER? Cold water therapy works best with the right combination of time and temperature. For example, if you are in water with a temperature of 10°C, we would recommend you stay for no more than 10mins.
-
Page 19: Product Specifications
PRODUCT SPECIFICATIONS Unit 30kg weight 43(L) x 33(W) x 48(H) cm 220-240V AC input 1450W cooling 1550W heating R410A refrigerant Safety shutoff Specifications Portable 'all-in-one' contained unit WiFi enabled remote control system (mobile app) Self-priming circulation pump Washable high-density particle water filter Cools water down to 3°C (37°F) Heats the water up to 42°C (107.6°F) Minimum working temperature -10°C (14°F) - Page 20 THERE Access our library of free personal training videos and guides on our website to learn ARE NO how to get the most out of your LUMI product LIMITS and achieve the results you want. lumitherapy.co.uk @lumi.therapy @Lumitherapyuk...
