Summary of Contents for Lumi thermoCT1

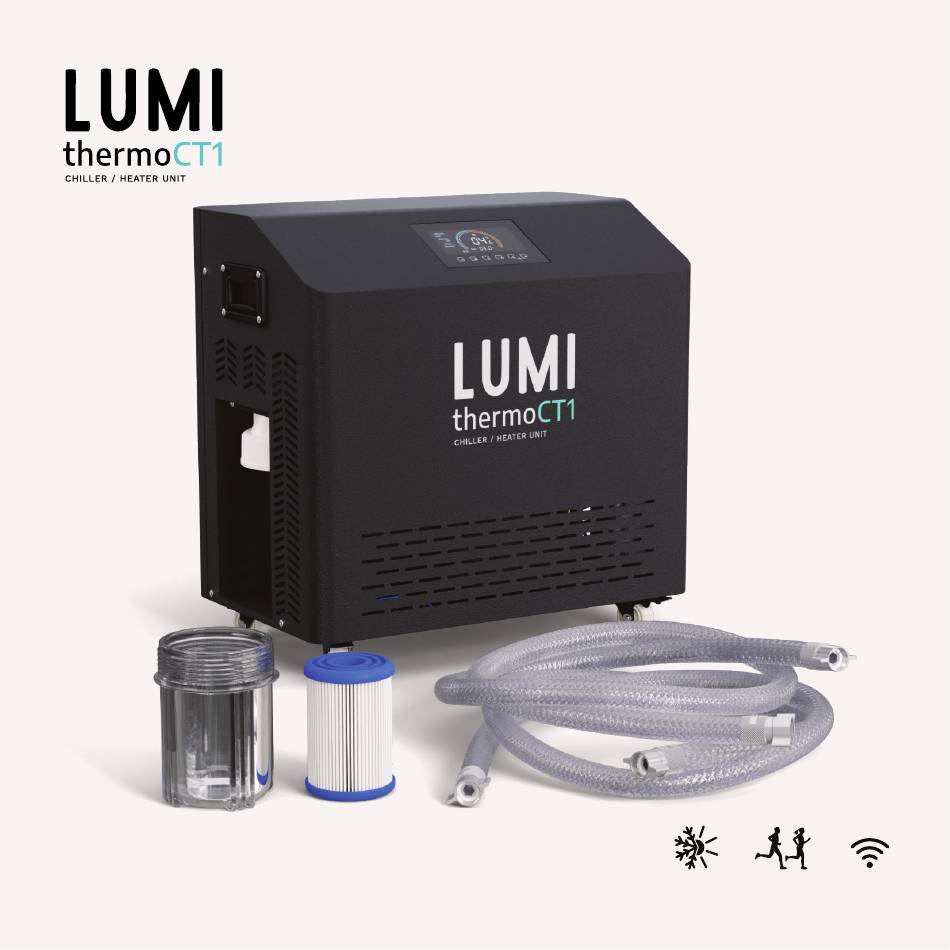

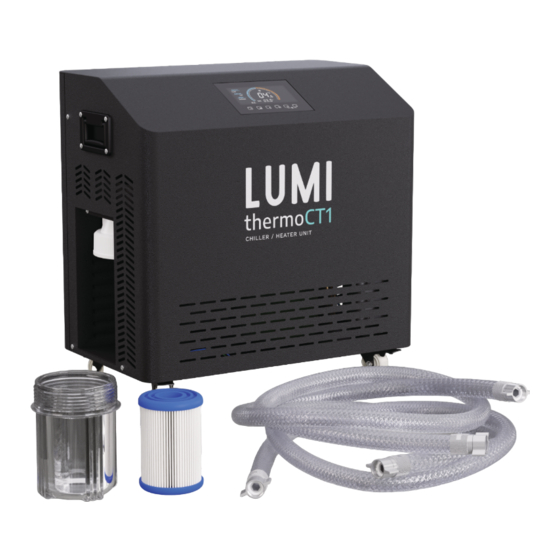

- Page 1 U S E R M A N U A L CHILL WIFI ICE BATH ENABLED A N D H E AT...
- Page 2 TRUST THE PROCESS We always end up right where we are supposed to be, right when we are meant to be there. Sometimes we just need a little time to recover. #lumitherapy...
- Page 3 Complete the steps in the QUICK START GUIDE to assemble your LUMI Thermo-CT1. CUSTOMER SUPPORT 24/7 If you have any questions about setting up or using your Lumi product, please visit our website for further information, faqs, troubleshooting and customer support.
- Page 4 WARNING! Electricity is very dangerous, in order to prevent accidents or death please pay attention to safety and ensure you fully read this instruction manual before use. During and after transportation, the Thermo-CT1 Unit must stay upright on a stable surface at all times.
- Page 5 Connect both the Inlet and Outlet pipes and ensure the valves are hand tight. You can now fill your Lumi Recovery PRO with 'cold water' using a hose until the water is roughly 15 cm (6 inches) below the underside of the top ring (not more than ⅔ full).
- Page 6 INSULATED BODY The insulated housing keeps the chiller working consistently regardless of the outside temperature. PLUG & PLAY Quality built hoses easily connect between the chiller and the Lumi Recovery PRO bath, circulating fresh, clean, cold water.
- Page 7 HIGH END BUILD The Lumi Thermo CT1 unit is the industry's best chiller/heater and filter combination, low maintenance, made to last, with insulated housing and quality built components. SUPER COOLING & HEATING The Lumi Thermo CT1 unit keeps the water as cool as 3°C (37°F), and can warm the water up to 42°C (107.6°F).
- Page 9 HOW LONG SHOULD YOU STAY IN COLD WATER? Cold water therapy works best with the right combination of time and temperature. For example, if you are in water with a temperature of 10°C, we would recommend you stay for no more than 10mins. Temperature to Time examples: 1°C = 1 minute submersion...
-
Page 10: Maintenance, Cleaning & Storage
SAFETY & USAGE NOTES MAINTENANCE, CLEANING & STORAGE ● Before using your Thermo-CT1 unit, please read this instruction manual carefully. ● Never clean your Thermo-CT1 unit with strong bleach-based detergents. ● To empty your Thermo-CT1 unit, use the drain tap located near the bottom of the unit. Take care with the drain tap, don't force it and make sure it is fully closed after use. - Page 11 THERMO-CT1 OPERATION GUIDE MAIN CONTROL PANEL INTERFACE...
- Page 12 THERMO-CT1 OPERATION GUIDE KEY PRESS FUNCTIONS Power on/off key: Press for 1 second to power on/off. The software version number o1.X. (x represents numbers 1-9) will be displayed when the machine starts. Mode key: (used mode key with the setup key together) Press for 3 seconds to convert temperature units between Celsius and Fahrenheit.
- Page 13 WIFI icon display: the status is as follow: WIFI display normal Machine is connected Temperature and other parameters can be adjusted on the APP WIFI flashing The machine is in Turn on the Tuya APP and the Bluetooth function of network configuration the mobile phone, and automatically prompt the connection...
- Page 14 FAULT CODE ANALYSIS AND SOLUTION Fault: If a fault occurs then an error code will be shown; A serious fault which stops the operation of the unit will be accompanied by an alarm sound, along with an error code. Error Alarm Reason Solution...
- Page 15 BOARD PIN DESCRIPTION Pins Description Pins Description Negative electrode 220V water pump Electronic expansion valve 24V water pump Solenoid valve power input:220V/24V 24V vacuum pump Compressor power input 24V negative electrode Compressor 24V Positive Protection output normally open pin Water temperature 1 sensor Protection output common pin Water temperature 2 sensor Protection output normally closed pin...
- Page 16 THERMO-CT1 MOBILE APP SETUP WIFI Scan the QR code to download and ENABLED install the app. Follow the prompts to register an account (recommended to register TUYA SMART with a mobile phone number). Turn on Bluetooth & WIFI on your mobile device and sure you are connecting via 2.4 GHz WIFI signal.
- Page 17 MOBILE APP OPERATION Start by renaming your connected Thermo-CT1 with the edit button. Temperature setting dial, drag the cursor point to adjust the set value. When the water 'flow rate' is abnormal, it will display red, and when the water 'flow rate' is normal, it will display green.
-
Page 18: Product Specifications
PRODUCT SPECIFICATIONS Unit 30kg weight 48(W) x 29(D) x 43(H)cm 220-240V AC input 1450W cooling 1550W heating R410A refrigerant Safety shutoff Specifications Portable 'all-in-one' contained unit WiFi-enabled remote control system (mobile app) Self-priming circulation pump Washable high-density particle water filter Cools water down to 3°C (37°F) Heats the water up to 42°C (107.6°F) Minimum working temperature -10°C (14°F) - Page 19 THERE Access our library of free personal training videos and guides on our website to learn how to get ARE NO the most out of your LUMI product and achieve LIMITS the results you want. lumitherapy.co.uk @lumi.therapy @Lumitherapyuk...
