Ref

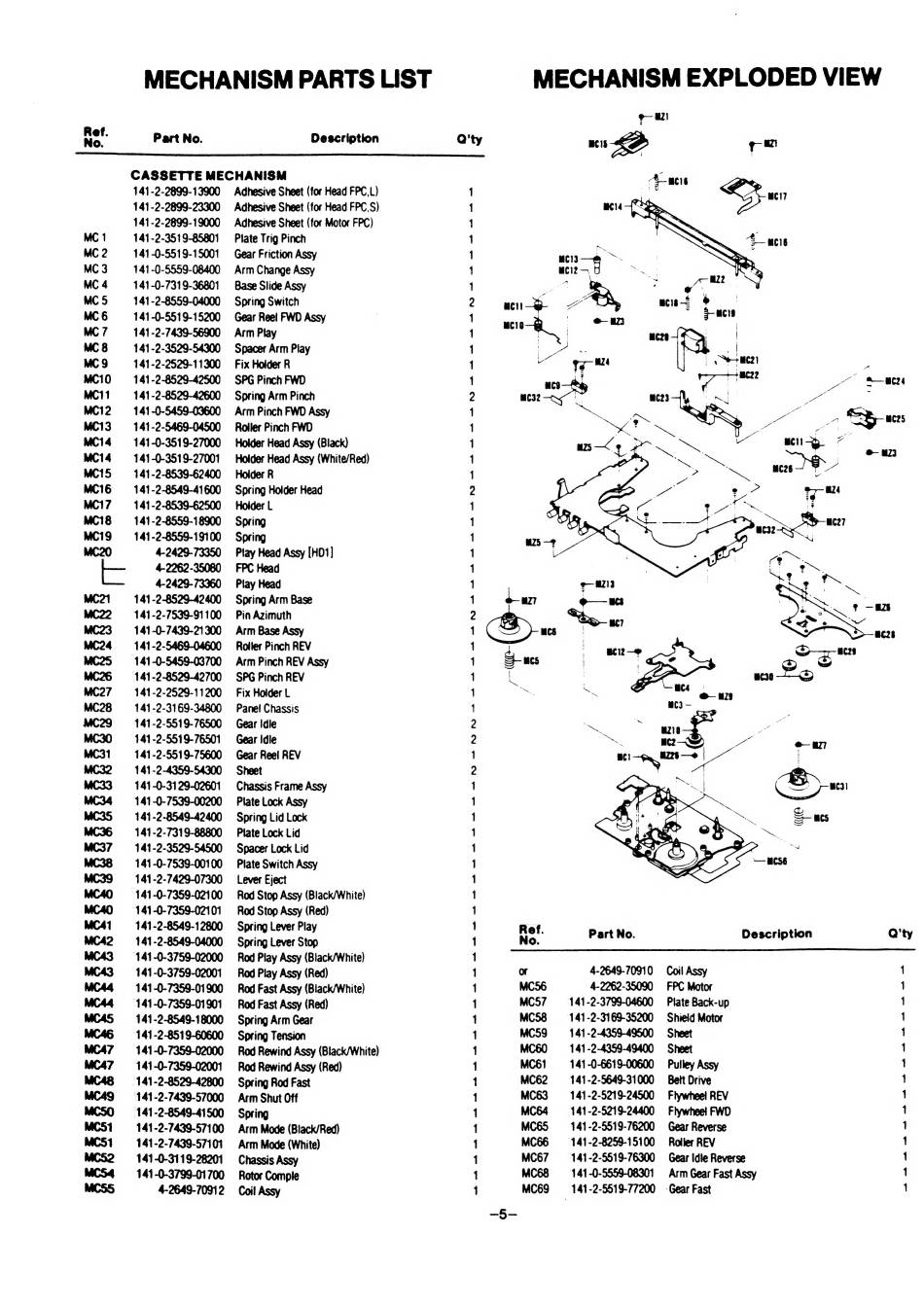

MECHANISM PARTS LIST
No.
Part No.
Description
Q'ty
CASSETTE MECHANISM
141-2-2899-13900
Adhesive Sheet (for Head FPC,L)
1
141-2-2899-23300
Adhesive Sheet (for Head FPC,S)
1
141-2-2899-19000
Adhesive Sheet (for Motor FPC)
1
MC 1
141-2-3519-85801
Plate Trig Pinch
1
MC 2
141-0-5519-15001
Gear Friction Assy
1
MC 3
141-0-5559-08400
Arm Change Assy
1
MC 4
141-0-7319-36801
Base Slide Assy
1
MC 5
141-2-8559-04000
Spring Switch
2
MC 6
141-0-5519-15200
Gear Reel FWD Assy
1
MC 7
141-2-7439-56900
Arm Play
1
MC 8
141-2-3529-54300
Spacer Arm Play
1
MC 9
141-2-2529-11300
Fix Holder R
1
MC10
141-2-8529-42500
SPG Pinch FWD
1
MC11
141-2-8529-42600
Spring Arm Pinch
2
MC12
141-0-5459-03600
Arm Pinch FWD Assy
1
MC13
= 141-2-5469-04500
Roller Pinch FWD
1
MC14
= 141-0-3519-27000
Holder Head Assy (Black)
1
MC14
= 141-0-3519-27001
Holder Head Assy (White/Red)
1
MC15
= 141-2-8539-62400
Holder R
1
MC16
141-2-8549-41600
Spring Holder Head
2
MC17
=: 141-2-8539-62500
Holder L
1
MC18
141-2-8559-18900
Spring
1
MC19
= 141-2-8559-19100
Spring
1
MC20
4-2429-73350
Play Head Assy [HD1]
1
4-2262-35080
FPC Head
1
4-2429-73360
Play Head
1
MC21
141-2-8529-42400
Spring Arm Base
1
MC22
=: 141-2-7539-91100
Pin Azimuth
2
MC23
= 141-0-7439-21300
Arm Base Assy
1
MC24
141-2-5469-04600
Roller Pinch REV
1
MC25
=: 141-0-5459-03700
Arm Pinch REV Assy
1
MC26
=: 141-2-8529-42700
SPG Pinch REV
1
MC27
= 141-2-2529-11200
Fix Holder L
1
MC28
141-2-3169-34800
Panel Chassis
1
MC29_—s«
141-2-5519-76500
Gear Idle
2
MC30
=: 141-2-5519-76501
Gear Idle
2
MC31
141-2-5519-75600
Gear Reel REV
1
MC32
141-2-4359-54300
Sheet
2
MC33—s«
141-0-3129-02601
Chassis Frame Assy
1
MC34
=: 141-0- 7539-00200
Plate Lock Assy
1
MC35
141-2-8549-42400
Spring Lid Lock
1
MC36
=: 141-2-7319-88800
Plate Lock Lid
1
MC37
= 141-2-3529-54500
Spacer Lock Lid
1
MC38
141-0-7539-00100
Plate Switch Assy
1
MC39
= 141-2-7429-07300 _ Lever Eject
1
MC40
=: 141-0-7359-02100
Rod Stop Assy (Black/White)
1
MC40
=: 141-0-7359-02101
Rod Stop Assy (Red)
1
MC41
141-2-8549-12800
Spring Lever Play
1
MC42
= 141-2-8549-04000
Spring Lever Stop
1
MC43
—s-: 141-0-3759-02000
Rod Play Assy (Black/White)
1
MC43.
= 141-0-3759-02001
Rod Play Assy (Red)
1
MC44
=: 141-0-7359-01900
Rod Fast Assy (Black/White)
1
MC44
=: 141-0-7359-01901
Rod Fast Assy (Red)
1
MCAS
= 141-2-8549-18000
Spring Arm Gear
1
MC4G
=: 141-2-8519-60600
Spring Tension
1
MC47
= 141-0-7359-02000
Rod Rewind Assy (Black/White)
1
MC47
=: 141-0-7359-02001
Rod Rewind Assy (Red)
1
MC48
=: 141-2-8529-42800
Spring Rod Fast
1
MC4Q =: 141-2-7439-57000
Arm Shut Off
1
MCSO
—-: 141-2-8549-41500
Spring
1
MCS1
= 141-2-7439-57100
Arm Mode (Black/Red)
1
MCS1
—-141-2-7439-57101
Arm Mode (White)
1
MCS2
= 141-0-3119-28201
Chassis Assy
1
MCS4
= 141-0-3799-01700
Rotor Compile
1
MC55
4-2649-70912 Coil Assy
1
o— a21
"BD
el
Part No.
Description
Q'ty
or
4-2649-70910
Coil Assy
1
MC56
4-2262-35090
FPC Motor
1
MC57
_—«- 141-2-3799-04600
Plate Back-up
1
MC58
=: 141-2-3169-35200
Shield Motor
1
MC59
= 141-2-4359-49500
Sheet
1
MC60
- 141-2-4359-49400
Sheet
1
MC61
= 141-0-6619-00600
Pulley Assy
1
MC62
141-2-5649-31000 _ Belt Drive
1
MC63_ —s- 141-2-5219-24500
Flywheel! REV
1
MC6&4 —-: 141-2-5219-24400
Flywheel FWD
1
MC65
= 141-2-5519-76200 _ Gear Reverse
1
MC66
=: 141-2-8259-15100
Roller REV
1
MC67
—-: 141-2-5519-76300
Gear Idle Reverse
1
MC68
—- 141-0-5559-08301
Arm Gear Fast Assy
1
MC69
= 141-2-5519-77200
-Gear Fast
1
