Sanyo MCD-ZX570M Instruction Manual

Cd portable radio cassette recorder
Hide thumbs

Advertisement

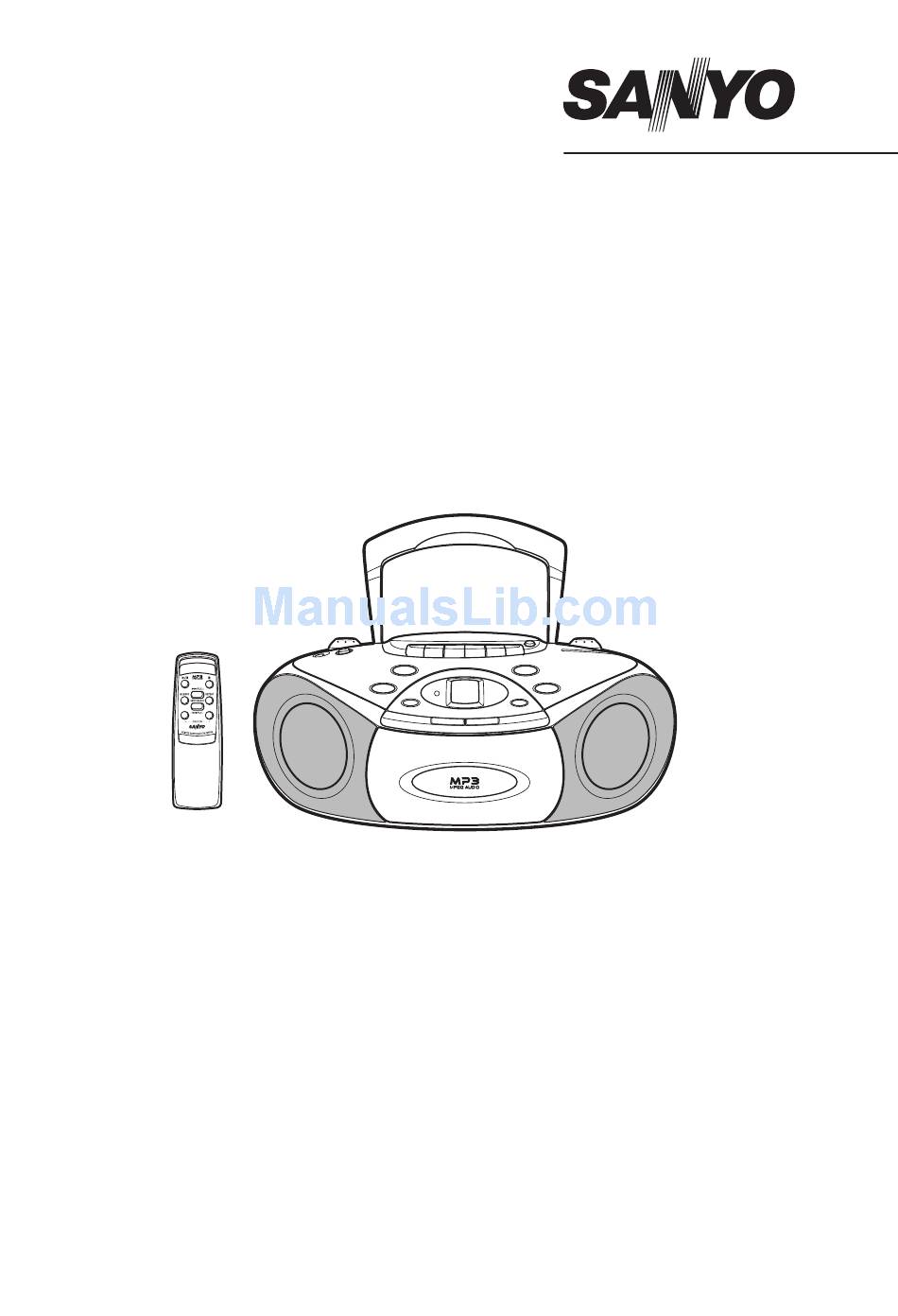

INSTRUCTION MANUAL
MCD-ZX570M
CD Portable Radio Cassette Recorder
56

Advertisement

loading

  Related Manuals for Sanyo MCD-ZX570M

  Summary of Contents for Sanyo MCD-ZX570M

  • Page 1 INSTRUCTION MANUAL MCD-ZX570M CD Portable Radio Cassette Recorder...
  • Page 2 PRECAUTIONS CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. CLASS 1 LASER PRODUCT ADVARSEL-USYNLIG LASER STRÅLING VED ÅBNING, NÅR LUOKAN 1 LASERLAITE SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ KLASS 1 LASERAPPARAT UDS ÆTTELSE FOR STRÅLING. VARNING-OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD.
  • Page 3 Fig. 1 Fig. 2...
  • Page 4 Remote control sensor win- Within approx. 7 meters Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig.7...
  • Page 5 Fig. 8 Fig.9 Fig. 10...
  • Page 6: Remote Control

    PRECAUTIONS The apparatus shall not be exposed to drip- 27. AC input socket (AC INPUT~) ping or splashing. 28. Battery compartment lid Do not use where there are extremes of tem- perature (below 5°C or exceeding 35°C). Because of the CD player’s extremely low REMOTE CONTROL noise and wide dynamic range, there might be a tendency to set the volume on the am-...
  • Page 7: Power Supply

    POWER SUPPLY CD PLAY AC POWER Use compact discs bearing the symbol shown in Fig 6. In addition to conventional 12 cm CDs, this Connect one end of the AC lead to the AC system can be used to play 8 cm CDs without an INPUT~ socket and the other end to an AC outlet.
  • Page 8 Notes on handling compact discs MP3 CD OPERATION This unit can play back the CD-R/RW as well. However ,some CD-R/RWs can not be This unit can play back the CD-R/RW that has played back depending on the recording recorded music data, MP3 files. conditions.
  • Page 9: Programmed Play

    MP3 CD directory sample: MP3 CD Play Playback order: song01 v song02 v … 1. Load the MP3 CD. v song14 The total number of folders and “MP3” ap- pear on the display. MP3 CD Folder number F01 There is no MP3 file. The unit skips it.
  • Page 10 Programmed playback [MP3 CD] LISTENING TO TAPES 1. Press the STOP button if necessary. 1. Set the FUNCTION switch to TAPE. 2. Press the MEMORY button. 2. Press the STOP/EJECT button. The cassette holder opens. 3. Load the cassette into the cassette holder (Fig.
  • Page 11: Listening To The Radio

    If you wish to re-record copyright material, per- mar the finish of the surfaces. mission from the copyright owner is necessary. SANYO does not approve of, and cannot be held Cleaning the CD player Iens responsible for, any unlawful use of this machine.
  • Page 12: Specifications

    FM: 87.5 - 108 MHz AM: 526.5 - 1606.5 kHz Cassette deck Track system: 4-track, 2- channel stereo Erasing system: Magnet erase Tape speed: 4.75 cm/sec. Frequency response: 80 - 12,000 Hz Fast forward/rewind time: Approx.110 sec. (C-60) (AU) 8601X57000050 SANYO Electric Co., Ltd.
