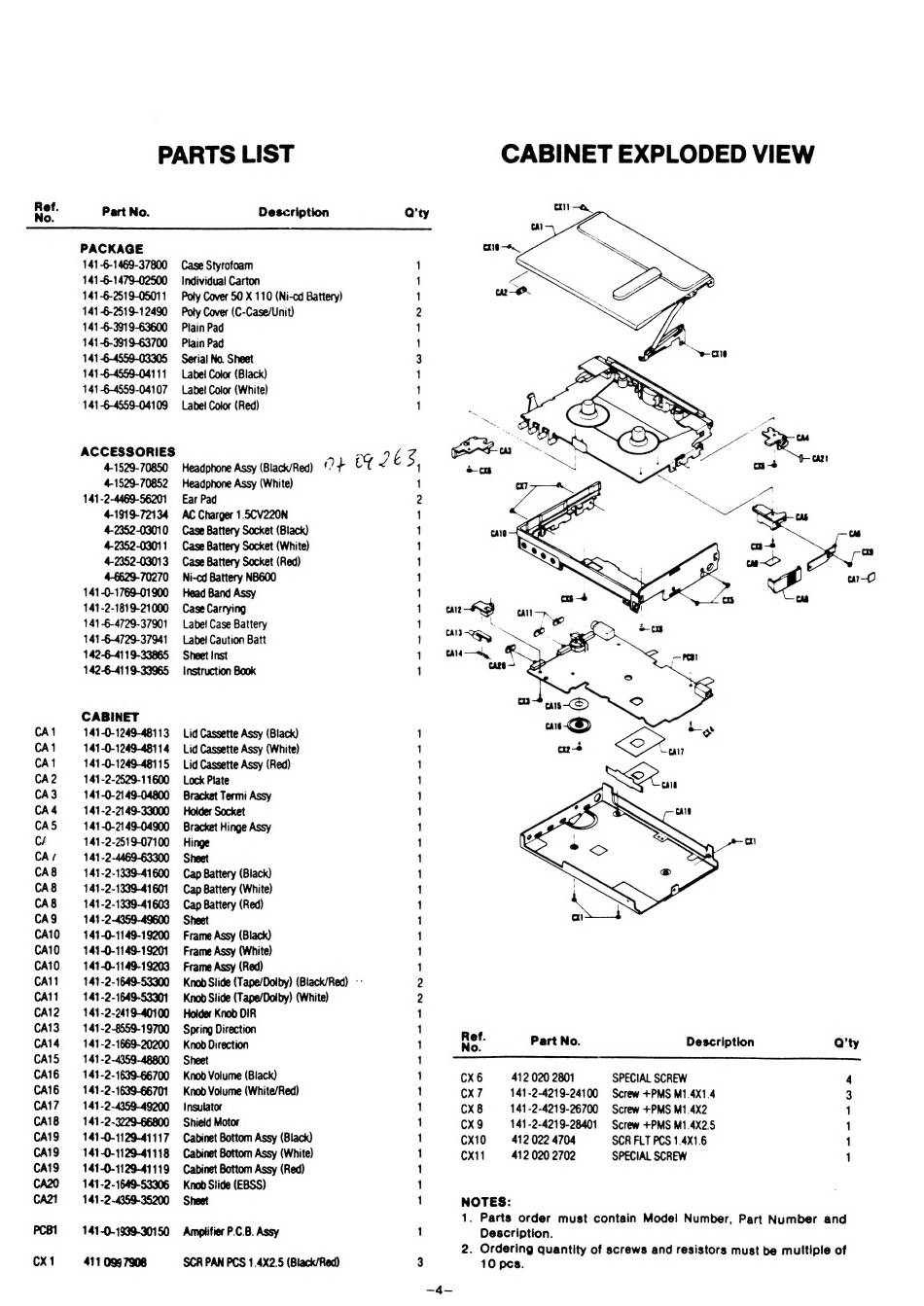

PARTS LIST
er Part No. Description Q'ty
PACKAGE
141-6-1469-37800 Case Styrofoam 1
141-6-1479-02500 Individual Carton 1
141-6-2519-05011 Poly Cover 50 X 110 (Ni-cd Battery) 1
141-6-2519-12490 Poly Cover (C-Case/Unit) 2
141 -6-3919-63600 Plain Pad 1
141-6-3919-63700 Plain Pad 1
141-6-4559-03305 Serial No. Sheet 3
141-6-4559-04111 Label Color (Black) 1
141-6-4559-04107 Label Color (White) 1
141-6-4559-04109 Labei Color (Red) 1
ACCESSORIES w n , 49
4-1529-70850 Headphone Assy (Black/Red) 2+ EY < és 1
4-1529-70852 Headphone Assy (White) 1
141-2-4469-56201 Ear Pad 2
4-1919-72134 AC Charger 1.5CV220N 1
4-2352-03010 Case Battery Socket (Black) 1
4-2352-03011 Case Battery Socket (White) 1
4-2352-03013 Case Battery Socket (Red) 1
4-6629-70270 Ni-cd Battery NB600 1
141-0-1769-01900 Head Band Assy 1
141-2-1819-21000 Case Carrying 1
141 -6-4729-37901 Label! Case Battery 1
141-6-4729-37941 Label Caution Batt {
142-6-4119-33865 Sheet Inst 1
142-6-4119-33965 Instruction Book 1
CABINET
CA 1 141-0-1249-48113 Lid Cassette Assy (Black) 1
CA 1 141-0-1249-48114 Lid Cassette Assy (White) 1
CA 1 141-0-1249-48115 Lid Cassette Assy (Red) 1
CA2 141-2-2529-11600 Lock Plate 1
CA3 141-0-2149-04800 Bracket Termi Assy 1
CA4 141-2-2149-33000 Holder Socket 1
CA5 141-0-2149-04900 Bracket Hinge Assy 1
C/ 141-2-2519-07100 Hinge 1
CA/ 141-2-4469-63300 Sheet 1
CA8 141-2-1339-41600 Cap Battery (Black) 1
CA8 141-2-1339-41601 Cap Battery (White) 1
CA8 141-2-1339-41603 Cap Battery (Red) 1
CA9 141-2-4359-49600
Sheet
1
CA10 = 141-0-1149-19200 Frame Assy (Black) 1
CA10 141-0-1149-19201 Frame Assy (White) 1
CAi0 141-0-1149-19203 Frame Assy (Red) 1
CA11 141-2-1649-53300 Knob Slide (Tape/Dolby) (Black/Red) -: 2
CA11 141-2-1649-53301 Knob Slide (Tape/Dolby) (White) 2
CA12 141-2-2419-40100 Holder Knob DIR 1
CA13 = 141-2-8559-19700 Spring Direction 1
CA14 141-2-1669-20200 Knob Direction 1
CA15 —- 141-2-4359-48800 Sheet 1
CA16 141-2-1639-66700 Knob Volume (Black) 1
CA16 141-2-1639-66701 Knob Volume (White/Red) 1
CA17 =141-2-4359-49200 _ Insulator 1
CA18 141-2-3229-66800 Shield Motor 1
CA19 141-0-1129-41117 Cabinet Bottom Assy (Black) 1
CA19 =—s- 141-0-1129-41118 | Cabinet Bottom Assy (White) 1
CA19 141-0-1129-41119 Cabinet Bottom Assy (Red) 1
CA20 = 141-2-1649-53306 Knob Slide (EBSS) 1
CA21 141-2-4359-35200 Sheet 1
PCB1 141-0-1939-30150 Amplifier P.C.B. Assy 1
Cx 1 411 099 7908 SCR PAN PCS 1.4X2.5 (Black/Red) 3
CX) a
CABINET EXPLODED VIEW
'de Part No. Description Q'ty
CX 6 412 020 2801 SPECIAL SCREW 4
Cx7 141-2-4219-24100 Screw +PMS M1.4X1.4 3
Cx8 141-2-4219-26700 Screw +PMS M1.4X2 1
Cx9 141-2-4219-28401 Screw +PMS M1.4X2.5 1
CX10 412 022 4704 SCR FLT PCS 1.4X1.6 1
Cx11 412 020 2702 SPECIAL SCREW 1
NOTES:
1. Parts order must contain Model Number, Part Number and
Description.
2. Ordering quantity of screws and resistors must be multiple of
10 pes.
