Teleste CXE180M Series Quick Start Manual

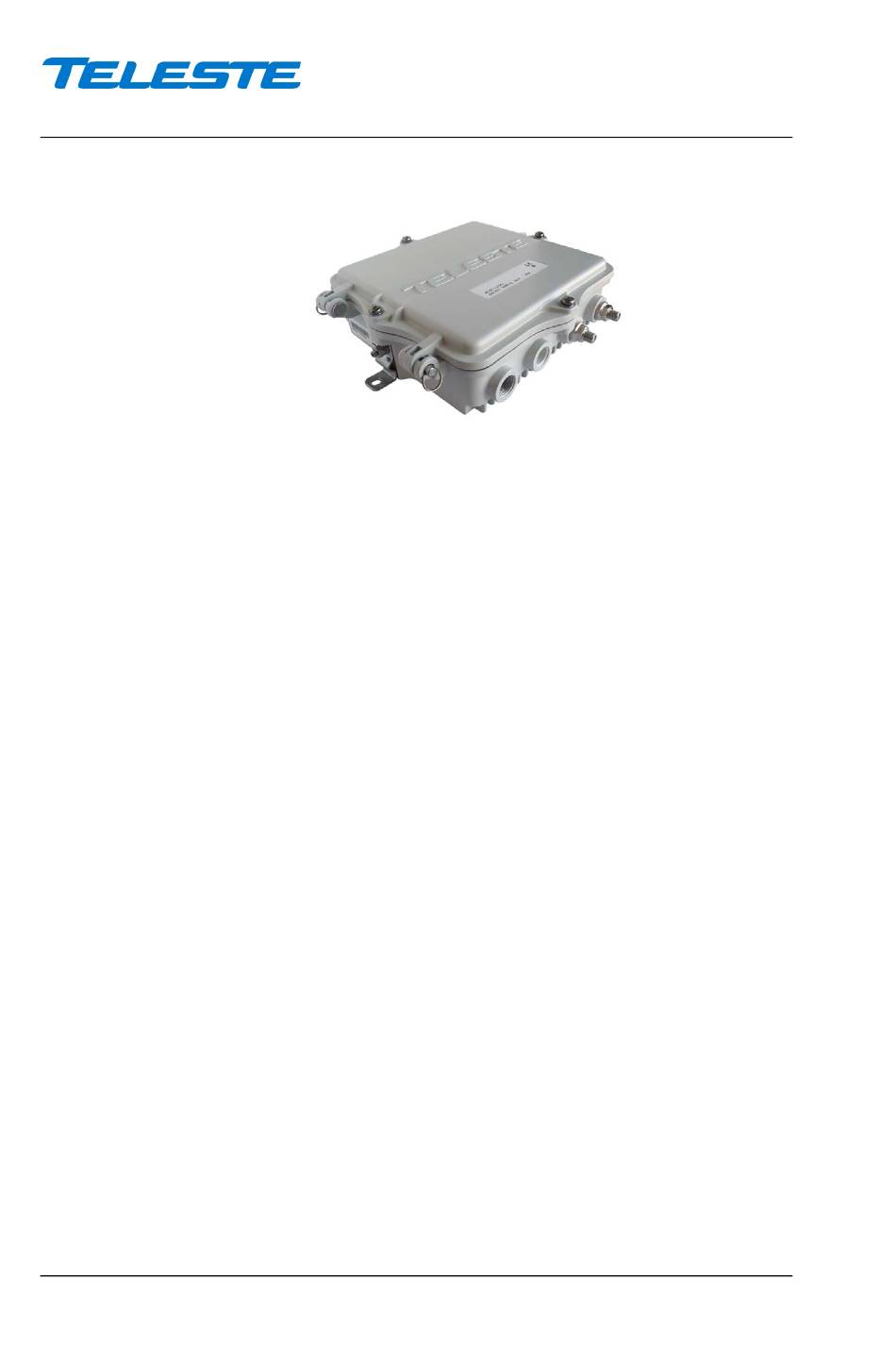

CXE180Mx 1.2 GHz Universal downstream amplifier

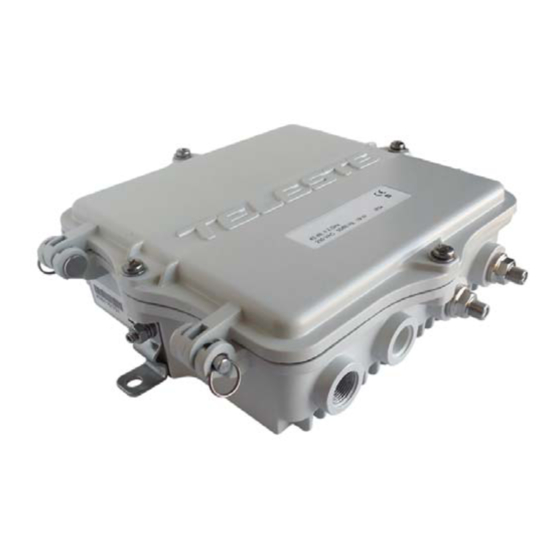

The CXE180Mx is a compact dual output amplifier. It is designed for cases
where only downstream signal transmission is needed.
It has two gain and slope modes that make this product universal. Output
performance meets the requirements of forward path DOCSIS 3.1 signals.
Adjustments are using electrical circuits that are controlled with push buttons.
Both mains 230 VAC and remote 65 VAC powered versions are available.
Key features include: electrical adjustments, 47...1.2 GHz forward path, GaN
technology, high gain/low gain selection, flat/sloped output selection, push
button and LED indication for adjustments, cable simulator option at input,
and 2 output ports.
Installation
Plan the installation with enough clearance to install the cable and cable
connectors. The amplifier should be installed vertically so that the external
cables are facing downwards. The CXElSOMx enclosure classification is IP67.
When installing the amplifier in its final location, make certain that it has
adequate ventilation on all sides. In particular, it is necessary to provide at
least 150 mm of room above and below the node for air circulation.
Wall mounting
Drill two mounting holes 233 mm apart in the mounting surface. Figure 1
depicts the locations of the wall mount brackets (Fig. 1, Pos. B). Select
appropriate length 5 mm mounting bolts (not supplied) and washers. Tighten
the mounting bolts. The amount of torque required depends on the mounting
surface.
The lid retaining bolts are fasten with a 10 mm hex nut driver. Use no more
than 3 Nm torque. Before closing the lid it should be checked that:
•
•
•
The CXE180Mx housing should be grounded from an approved earth point to
the housing ground lug (Fig. 1, Pos. A).
nothing is trapped between the lid and the case
all case gaskets are intact and in their correct positions
lid seats evenly on the rubber gasket
User Manual
59300657
15.9.2020
CXE180Mx
Rev.001
1(4)
