Doyson S 10 BT User Manual

S 10 BT USER MANUAL
Nr. of channels...................................1 stereo channel
Amplifier..............................................1.5+1.5W stereo
Bluetooth............................................A2DP transmission protocol
Minimum load impedance................8 ohms
Power supply......................................12Vcc/330mA
Stand-by power consumption........25mA
Operational power consumption..69mA
Connectors.........................................Strip terminals
Dimensions.........................................44 x 44 x 36mm depth

HOW TO SWITCH ON AND OFF THE CONTROL MODULE:

Press the control module On/Off key. The on/off led will light up
showing that the control module is on. Press again the on/off key to
switch the control module off.
GENERAL SYSTEM ON/OFF: Pressing simultaneously the on/off and
> keys all the control modules of the multiroom system will switch
on.
Pressing simultaneously the on/off and < keys all the control modules
of the multiroom system will switch off.
VOLUME CONTROL: While the control module is on press the >
key to turn the volume up and the < key to turn the volume down.
CALL RECEPTION: While the control module is on, calls from any
control module with built-in microphone can be received. The call
volume can be adjusted pressing the < > keys. The call volume is
independent from the program volume and will memorized by the
control module.
"DO NOT DISTURB" MODE: When the control module is on, press
the DO NOT DISTURB key to activate the "do not disturb" function.
The do not disturb led will light up to show this function is on. From
that moment the control module will not receive any call.
In the case of an incoming call when this function is on, the do not
disturb led will start flashing. Pressing the DO NOT DISTURB key this
function will be deactivated and the call will be received.
SLEEP MODE While the control module is on, press the On/Off

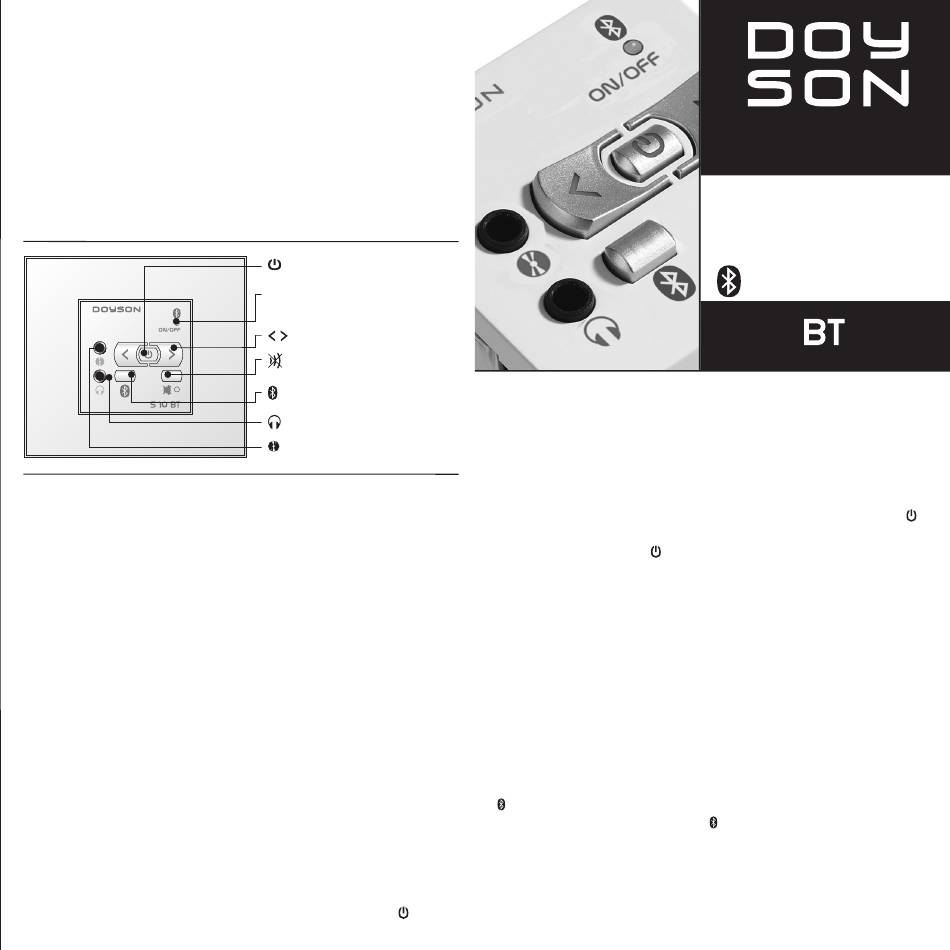

ON/OFF AND SLEEP KEY
BICOLOR LED: Channel (red)
and Bluetooth (blue) indicator
VOLUME CONTROL KEYS
"DO NOT DISTURB"
BLUETOOTH SELECTOR

HEADPHONE SOCKET

AUXILIARY AUDIO INPUT
key to
w w w. d oy s o n . c o m
program the switch off time. Time will increase in intervals of 15 minutes up
to 60 minutes. The channel in use led will flash every time the On/Off
is pushed and the switch off time increases 15 minutes. Once the sleep
function is on, the On/Off led will flash every 7 seconds as many times as
periods of 15 minutes are left for the switch off time.
To deactivate, keep the On/Off key pressed during 2 or 3 seconds.
HEADPHONE SOCKET: Connect the headphone jack in the control
module headphone socket. The loudspeakers will stop sounding and
music will come from the headphones. When the headphone jack is
disconnected form the headphone socket the speakers will start singing
again.
AUXILIARY AUDIO INPUT (IN): Connect the audio player jack in
the audio socket. Automatically the main audio program will stop and
the cd player, MP3, etc connected to the socket will be listened. When
the audio player jack is disconnected from the audio socket, the main
audio program will be listened again..
BLUETOOTH CONNECTION (CODE: 0000) While the control module
is on, press shortly several times the key until the blue led lights up. Then
keep the key hold for a few seconds until the led starts flashing. Now you have
a minute to search 'DOYSON+xxxxxx' on your device, select it to pair
them and enter the code 0000 to activate the Bluetooth connection.
For future occasions you only will need to connect from your mobile with the
desired zone, even when the control module is off.
S o u n d & H o m e
A u t o m a t i o n
CONTROL
MODULE WITH
BLUETOOTH
S 10
key
