Doyson S 300 FM BT User Manual

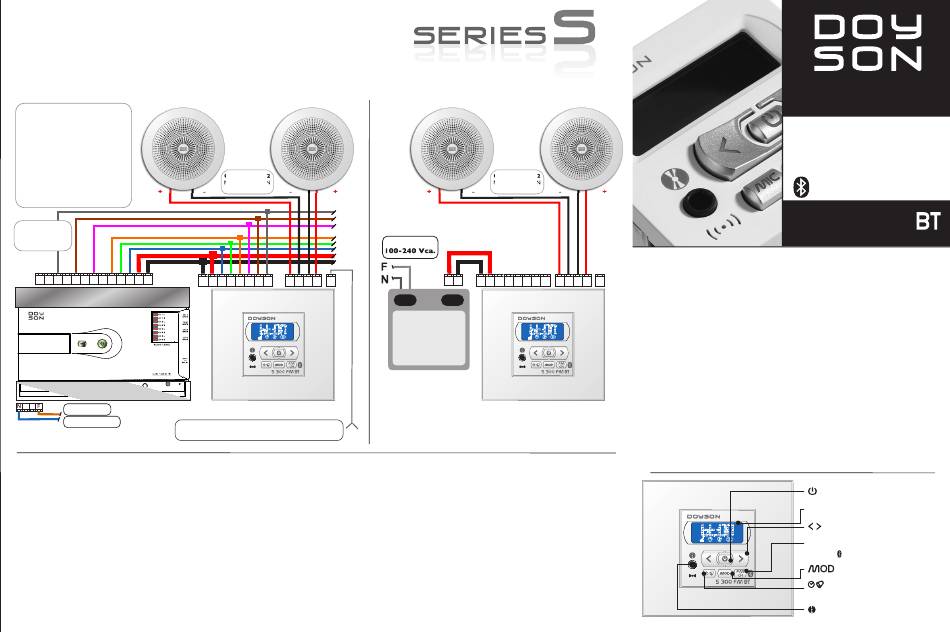

WIRING DIAGRAM FOR S 300 FM BT CONTROL
MODULE AND UC 400 S CENTRAL UNIT
System with central unit
0 = GROUND - Vcc
5 = POWER SUPPLY 12 +Vcc
8 = COMMUNICATIONS
9 = COMMUNICATIONS
MICROPHONE AUDIO
M =
C1 = CHANNEL 1
CHANNEL 2
C2 =
C3 = CHANNEL 3
+
CABLE REF. W-14
MINIMUM SECTION
2X1MM
12X0,25 MM
M 9 8 5 0
C4R C4L C3R C3L C2R C2L C1R C1L

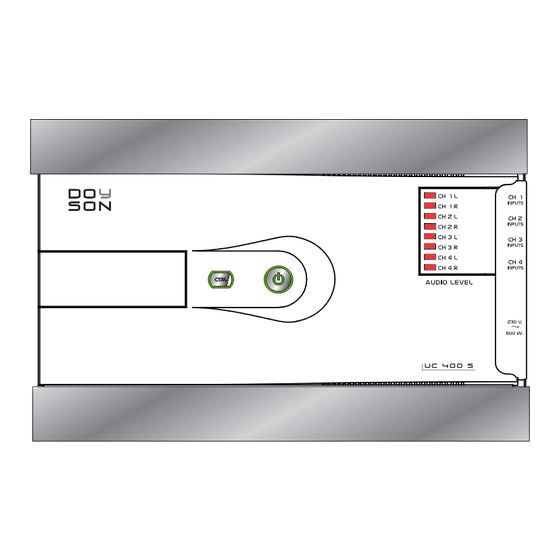

UC 400 S
2x0,75 mm.
MAINS 230 Vca.
ANTENNA CONNECTION: Conductor wire of 80 cm. In zones of
bad reception, connection to outdoor antenna it is highly recommended.
NOTE.- The UC 400 S supports a máximum of 10 sound control modules and a maximum distance of 100 mts.of cable to the last
element to be controlled. For higher installations, power supply units or a more powerful central unit would be required.
HOW TO PROGRAM THE SYSTEM:
Once all the system units are already installed, a zone number must be assigned to each control module as follows:
1st.- Keep the keys <> pressed during 4 seconds. The number "1" will be shown on the displays of ever y control module.
2nd.- Choose the control module you want to be the "zone 1" and press the On/Off key. The number "1" will be memorized as a zone number in
that control module.
3rd.- Now the rest of control modules will show the number "2" in their displays. Choose again which control module you want to be the "zone 2"
and press the On/Off key of that module.
4th- Repeat the process as many times as control modules/zones are in the installation.
5th- Once the zone assignment is finished, keep the control module on/off key pressed during 4 secondsin order to leave the "assingnment zone mode".
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
- - +
0 5 8 9 M C1 C2 C3 R+ R- L- L+ ANT
S 300 FM BT
System with power supply unit
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
+ - -
MAINS
5 0
0 5 8 9 M C1 C2 C3 R+ R- L- L+
Power supply
unit
FA 12 BI
S 300 FM BT
For AUXILIARY CONNECTION of audio, TV, PC, etc. please
use 0 (ground) and C1
+
w w w. d oy s o n . c o m
ANT
S 300 FM BT Technical characteristics
Nr. of channels...................................3 mono channel
Amplifier..............................................1.5+1.5W stereo
Bluetooth............................................A2DP transmission protocol
Minimum load impedance................8 ohms
Power supply......................................12Vcc/330mA
Stand-by power consumption........25mA
Operational power consumption..69mA
Connectors.........................................Strip terminals
Dimensions.........................................44 x 44 x 36mm depth
S o u n d & H o m e
A u t o m a t i o n
CONTROL
MODULE WITH
BLUETOOTH
S 300 FM
ON/OFF KEY
LCD DISPLAY
VOLUME, SCAN FM...
FM TURNER, AUDIO CHANNEL, AUX.
IN AND BLUETOOTH SELECTOR
MENU CONTROL KEY
ALARM CLOCK
AND PARENT FUNCTION
AUXILIARY AUDIO INPUT
