S 40 BT USER MANUAL
Nr. of channels...................................4 mono
Amplifier..............................................1.5+1.5W
Bluetooth............................................A2DP transmission protocol
Minimum load impedance................8 ohms
Power supply......................................12Vcc/330mA
Stand-by power consumption........25mA
Operational power consumption..69mA
Connectors.........................................Strip terminals
Dimensions.........................................44 x 44 x 36mm depth

HOW TO SWITCH ON AND OFF THE CONTROL MODULE

Press the control module On/Off
will light up showing that the control module is on. Press again the on/off key
to switch the control module off.

GENERAL SYSTEM ON/OFF

Pressing simultaneously the and keys all the control modules of the
multiroom system will switch on.
Pressing simultaneously the and keys all the control modules of the
multiroom system will switch off.

VOLUME CONTROL

While the control module is on press the key to turn the volume up and
the key to turn the volume down.

CALL RECEPTION

While the control module is on, calls from any control module with built-in
microphone can be received. The call volume can be adjusted pressing the
keys. The call volume is independent from the program volume and will
memorized by the control module.

"DO NOT DISTURB" MODE

When the control module is on, press the
disturb" function. The do not disturb green led will light up to show this function
is on. From that moment the control module will not receive any call.
In the case of an incoming call when this function is activated, the do not
disturb green led will start flashing. Pressing the
deactivated and the call will be received.

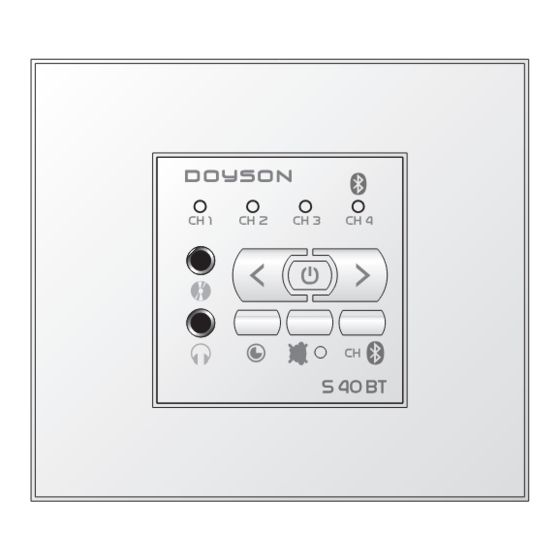

ON/OFF AND SLEEP KEY
BICOLOR LED: Channel (red)
and Bluetooth (blue) indicator
VOLUME CONTROL KEYS
"DO NOT DISTURB"
AUDIO CHANNEL.
BLUETOOTH SELECTOR

HEADPHONE SOCKET

AUXILIARY AUDIO INPUT
key. The led of the latest selected program
key to activate the "do not
key this function will be
w w w. d oy s o n . c o m

CHANNEL SELECTOR

Push the key to change the audio program. The corresponding program
led will light up.
BLUETOOTH CONNECTION (CODE: 0000) While the control module
is on, press shortly several times the key until the blue led lights up. Then
keep the key hold for a few seconds until the led starts flashing. Now you
have a minute to search 'DOYSON+xxxxxx' on your device, select it to
pair them and enter the code 0000 to activate the Bluetooth connection.
For future occasions you only will need to connect from your mobile with the
desired zone, even when the control module is off.
SLEEP MODE While the control module is on, press the On/Off
program the switch off time. Time will increase in intervals of 15 minutes up
to 60 minutes.
The channel in use led will flash every time the On/Off
the switch off time increases 15 minutes.
Once the sleep function is on, the On/Off
as many times as periods of 15 minutes are left for the switch off time.
To deactivate, keep the On/Off key pressed during 2 or 3 seconds.
HEADPHONE SOCKET Connect the headphone jack connector in

AUXILIARY AUDIO INPUT (IN)

Connect the audio player jack in
Automatically the cd player, MP3, etc connected to the socket will be listened.
When the audio player jack is disconnected from the audio socket, the 3rd
main audio program will be listened again.
S o u n d & H o m e
A u t o m a t i o n
CONTROL
MODULE WITH
BLUETOOTH
S 40
key is pushed and
led will flash every 7 seconds
and select the 3rd program (
key to
.
).
