Control module with bluetooth

Advertisement

Quick Links

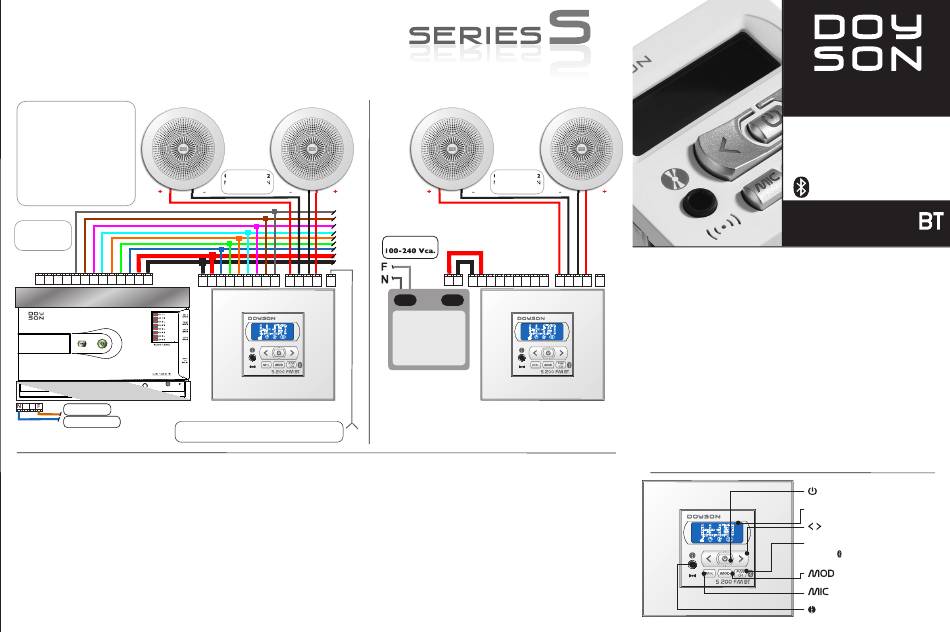

WIRING DIAGRAM FOR S 200 FM BT CONTROL
MODULE AND UC 400 S CENTRAL UNIT
System with central unit
0
=
GROUND - Vcc
5
=
POWER SUPPLY 12 +Vcc
8
=
COMMUNICATIONS
9
=
COMMUNICATIONS
MICROPHONE AUDIO
M
=
C1 R
=
RIGHT CHANNEL 1
LEFT CHANNEL 1
C1 L
=
RIGHT CHANNEL 2
C2 R
=
+
LEFT CHANNEL 2
C2 L
=
CABLE REF. W-14
MINIMUM SECTION
2X1MM
12X0,25 MM
M
9
8
5
0
C4R
C4L
C3R
C3L
C2R
C2L
C1R
C1L

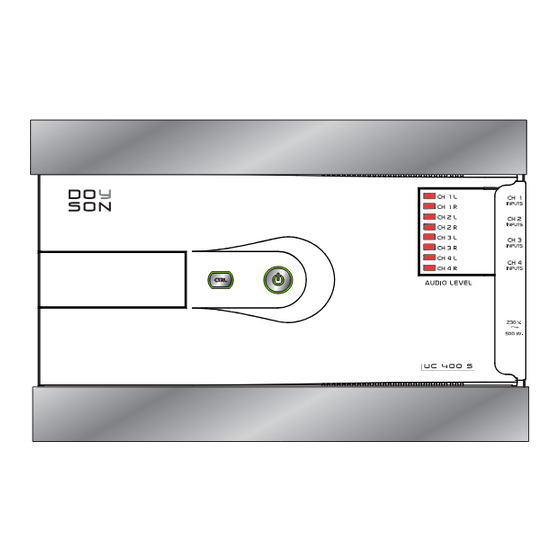

UC 400 S
2x0,75 mm.
MAINS 230 Vca.
ANTENNA CONNECTION: Conductor wire of 80 cm. In zones of
bad reception, connection to outdoor antenna it is highly recommended.
NOTE.- The UC 400 S supports a máximum of 10 sound control modules and a maximum distance of 100 mts.of cable to the last
element to be controlled. For higher installations, power supply units or a more powerful central unit would be required.

HOW TO PROGRAM THE SYSTEM:

Once all the system units are already installed, a zone number must be assigned to each control module as follows:
1st.- Keep the keys <> pressed during 4 seconds. The number "1" will be shown on the displays of ever y control module.
2nd.- Choose the control module you want to be the "zone 1" and press the On/Off key. The number "1" will be memorized as a zone number in
that control module.
3rd.- Now the rest of control modules will show the number "2" in their displays. Choose again which control module you want to be the "zone 2"
and press the On/Off key of that module.
4th- Repeat the process as many times as control modules/zones are in the installation.
5th- Once the zone assignment is finished, keep the control module on/off key pressed during 4 secondsin order to leave the "assingnment zone mode".
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
-
-
+
0 5 8 9 M C1L C1R
C2L
C2R
R+ R- L- L+
ANT
S 200 FM BT
System with power supply unit
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
+
-
-
MAINS
5
0
0 5 8 9 M C1L C1R
C2L
C2R
R+ R- L- L+
Power supply
unit
FA 12 BI
S 200 FM BT
For AUXILIARY CONNECTION of audio, TV, PC, etc. please
use 0 (ground) and C1L and C1R (Left and right channel 1)
+
w w w. d oy s o n . c o m
ANT

S 200 FM BT Technical characteristics

Nr. of channels...................................2 stereo channel
Amplifier..............................................1.5+1.5W stereo
Bluetooth............................................A2DP transmission protocol
Minimum load impedance................8 ohms
Power supply......................................12Vcc/330mA
Stand-by power consumption........25mA
Operational power consumption..69mA
Connectors.........................................Strip terminals
Dimensions.........................................44 x 44 x 36mm depth
S o u n d & H o m e
A u t o m a t i o n
CONTROL
MODULE WITH
BLUETOOTH
S 200 FM
ON/OFF KEY
LCD DISPLAY
VOLUME, SCAN FM...
FM TURNER, AUDIO CHANNEL, AUX.
IN AND BLUETOOTH SELECTOR
MENU CONTROL KEY
MICROPHONE
AUXILIARY AUDIO INPUT
