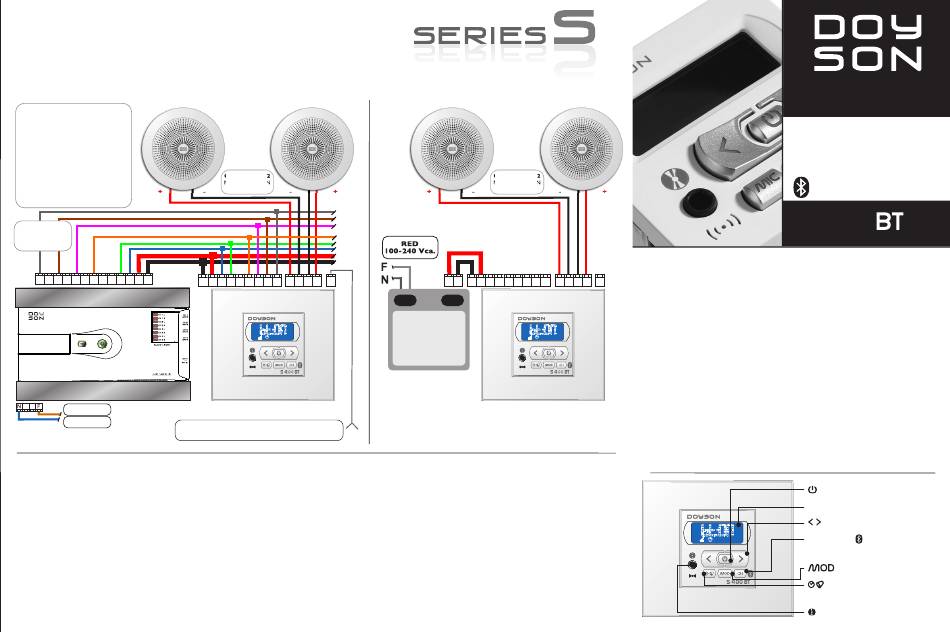

WIRING DIAGRAM FOR S 400 BT CONTROL
MODULE AND UC 400 S CENTRAL UNIT
System with central unit
0
=
GROUND - Vcc
5
=
POWER SUPPLY 12 +Vcc
8
COMMUNICATIONS
=
9
=
COMMUNICATIONS
CHANNEL 1
C1
=
C2
=
CHANNEL 2
CHANNEL 3
C3
=
CHANNEL 4
C4
=
+
CABLE REF. W-14
MINIMUM SECTION
2X1MM
12X0,25 MM
M
9
8
5
0
C1R
C4R
C4L
C3R
C3L
C2R
C2L
C1L
UC 400 S
2x0,75 mm.
RED 230 Vca.
ANTENNA CONNECTION: Conductor wire of 80 cm. In zones of
bad reception, connection to outdoor antenna it is highly recommended.
NOTE.- The UC 400 S supports a máximum of 10 sound control modules and a maximum distance of 100 mts.of cable to the last
element to be controlled. For higher installations, power supply units or a more powerful central unit would be required.

HOW TO PROGRAM THE SYSTEM:

Once all the system units are already installed, a zone number must be assigned to each control module as follows:
1st.- Keep the keys <> pressed during 4 seconds. The number "1" will be shown on the displays of ever y control module.
2nd.- Choose the control module you want to be the "zone 1" and press the On/Off key. The number "1" will be memorized as a zone number in
that control module.
3rd.- Now the rest of control modules will show the number "2" in their displays. Choose again which control module you want to be the "zone 2"
and press the On/Off key of that module.
4th- Repeat the process as many times as control modules/zones are in the installation.
5th- Once the zone assignment is finished, keep the control module on/off key pressed during 4 secondsin order to leave the "assingnment zone mode".
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
-
-
+
0 5 8 9
M
C1 C2 C3 C4
R+ R- L- L+
ANT
S 400 BT
System with power supply unit
STEREO
ZONE
Speaker
Ref. SP 5
CABLE REF. W-2
MINIMUM SECTION
2X0.50 MM
+
-
-
5
0
0 5 8 9
M
C1 C2 C3 C4
R+ R- L- L+
Power supply
unit
FA 12 BI
S 400 BT
For AUXILIARY CONNECTION of audio, TV, PC, etc. please
use 0 (ground) and C1
+
w w w. d oy s o n . c o m
ANT

S 400 BT Technical characteristics

Nr. of channels...................................4 mono channel
Amplifier..............................................1.5+1.5W stereo
Bluetooth............................................A2DP transmission protocol
Minimum load impedance................8 ohms
Power supply......................................12Vcc/330mA
Stand-by power consumption........25mA
Operational power consumption..69mA
Connectors.........................................Strip terminals
Dimensions.........................................44 x 44 x 36mm depth
S o u n d & H o m e
A u t o m a t i o n
CONTROL
MODULE WITH
BLUETOOTH
S 400
ON/OFF KEY
LCD DISPLAY
VOLUME.
SELECTOR
BLUETOOTH
CHANNEL AND AUX. IN
MENU KEY
ALARM CLOCK
AND PARENT FUNCTION
AUXILIARY AUDIO INPUT
