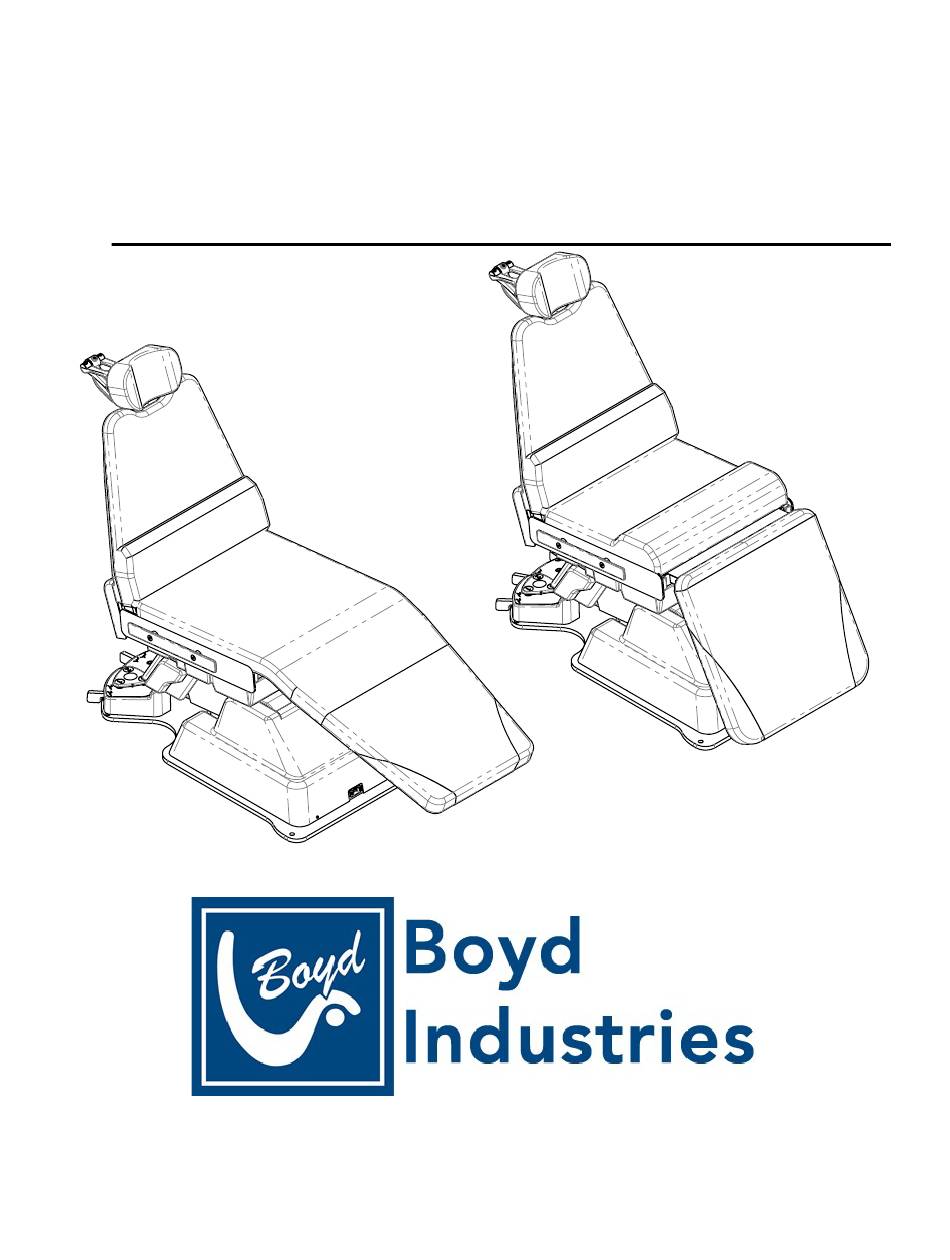

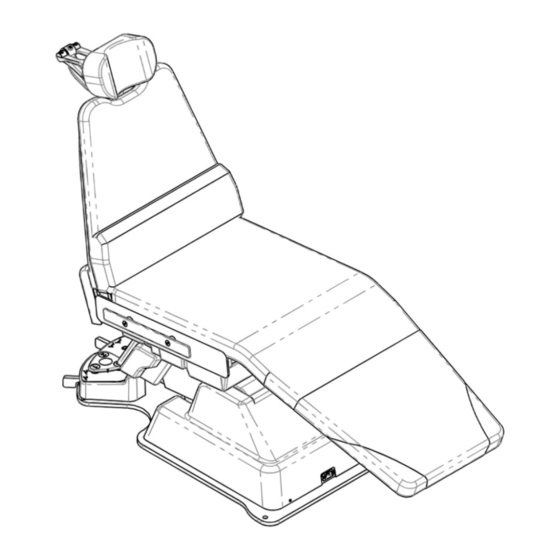

- Page 1 Product Information Manual S2614 & S2615 Surgery Chair S2614 S2615 12900 44th Street North Clearwater, Florida 33762 800-255-2693 * 727-561-9292 FAX: 727-561-9393 SALES SCHM-002 FAX: 727-573-1682 SERVICE Rev 2 www.boydindustries.com...
-
Page 2: Table Of Contents
Table of Contents Title Page Table of Contents Introduction Application of Product Warranty Information Safety Warning Symbols Safety Tips / Precautions About Your Chair Description of Product Line Standard Safety Features General Product Information Product Specifications Transport & Disposal Unpacking and Power Requirements Installation Instructions Chair Installation Initialization Procedure... -
Page 3: Introduction
All Boyd manufactured products are warranted against defects in material or workmanship only. No other warranties are expressed or implied. This warranty shall extend for three (3) years for parts and one (1) year for labor. The Boyd warranty only covers products manufactured by Boyd. -
Page 4: Safety Warning Symbols
Safety Warning Symbols Informational: Read Technical Main Power Off Manual Before Servicing Type B Equipment Main Power On General Warning Symbol Protective Earth Ground Light Caution SCHM-002 Rev 2... -
Page 5: Safety Tips / Precautions
7. Heed warnings: Adhere to all warnings labeled on equipment and in owner’s manual. 8. Accessories: Use only accessories from Boyd Industries, Inc. catalog on this chair. Third party accessories will void the warranty and may be unsafe. 9. Cleaning: Use mild detergent in water on all painted surfaces and plastic parts. -
Page 6: About Your Chair
About Your Chair Description of Product Line Model: S2614 & S2615 Features: Power Back Fixed Toe (S2615) & Adjustable Toe (S2614) Cantilever Style Lift Base Hand Controls (Optional) Foot Control with Programming Standard Safety Features 1. Power Supply Chair is circuit breaker protected. -
Page 7: General Product Information
Note: Do not sit on back, foot end of seat or adjustable toe section. These sections are not designed to support the full weight of patient. Do not lift or slide chair using back section or seat upholstery. Warning: Do not modify this equipment without authorization from Boyd Industries, Inc. SCHM-002 Rev 2... -
Page 8: Product Specifications
About Your Chair (continued) Product Specifications S2614 & S2615 30.75 with optional rail mount arms 64.00 63.88 TOP VIEW Note: Headrest height is adjustable Note: S2614 approximately 6" plus articulating movement. 29.25 29.30 with optional compensating arms 22.75 22.86 no arms 69.50... - Page 9 Disposal of Boyd equipment: Boyd chairs are designed and built to last and provide efficient and safe service for many years. The expected service life of this chair is 15 years. When the time finally comes to retire the chair, please dispose of the equipment according to statutory and regulatory requirements.
-
Page 10: Unpacking And Power Requirements
Socket GFI Outlet is a low amperage circuit not designed to handle heavy loads which can result in breaker shut down and reduced safety when higher amperage circuits are applied. This dual outlet is designed for use with Boyd Light Accessory only. SCHM-002... -
Page 11: Installation Instructions
Run the tilt motor to its full tilt position. Run the toe motor (S2614 only) to its full up position. Press and release HOME button and allow both motors to fully return to the patient exit position (back full up, base full down, tilt up and toe down (S2614 only)). -
Page 12: Operation Instructions
Outlet Chair should be turned OFF at main power switch (C1) any time it is not being used. 115V Outlet for use with Boyd Light Accessory Outlet Only and may not be repositioned. Active Improper use could lead to injury or Outlet equipment damage. - Page 13 Operating Instructions (continued) Model: S2614 & S2615 Chairs Hand & Foot Control Note: Chair movement can be stopped by depressing any directional control (i.e. back up / back down, base up / base down, or any programmed position). Adjustments to chair positioning can be made anytime using the “Up / Down” buttons or pedals.
- Page 14 Operating Instructions (continued) Model: S2614 & S2615 Chairs Headrest Release (All Models) Headrest height adjustment: To lower or raise the headrest; support the headrest with one hand and push the release lever down with the other. Lower or raise the headrest to desired height.
- Page 15 Operating Instructions (continued) Model: S2614 & S2615 Chairs Armrest Adjustment and Release (All Models) Armrest Positioning (both armrest styles): Adjust armrest by squeezing the Armrest Release Knob (See Below) upward toward armrest pad. This releases the armrest to move freely for positioning.
-
Page 16: General Maintenance And Care
Use only cleaners and disinfectants approved for cleaning vinyl. Do not use strong or harsh cleaners as they may cause the vinyl color to fade. Apply the cleaner to a towel, not directly to the vinyl. Refer to vinyl manufacturer’s data on Boyd’s website for cleaning products. -
Page 17: Upholstery Installation And Removal
Installation: S2614 & S2615 Upholstery S2614 / S2615 Back Upholstery – Place the Hangers located near the top of the Back Upholstery into the slots on the Back Frame and slide upholstery downward until it stops on Hangers. Then, press the Bullets located near the bottom of the upholstery into the Receiving Clips on the Back Frame. -
Page 18: Troubleshooting Guide
Trouble Shooting Guide Symptoms: Appropriate Action: Chair will not operate Check the main ON/OFF switch (C1) to ensure that it is ON, it will be illuminated if it is on. Chair will not operate Check the A/C outlet that the chair is plugged into to insure that there is power going to the chair. Also check the building’s circuit breakers. - Page 19 Boyd Industries, Inc 12900 44th Street N Clearwater, FL 33762 U.S.A SCHM-002 Rev 2...
