Summary of Contents for Boyd S2914

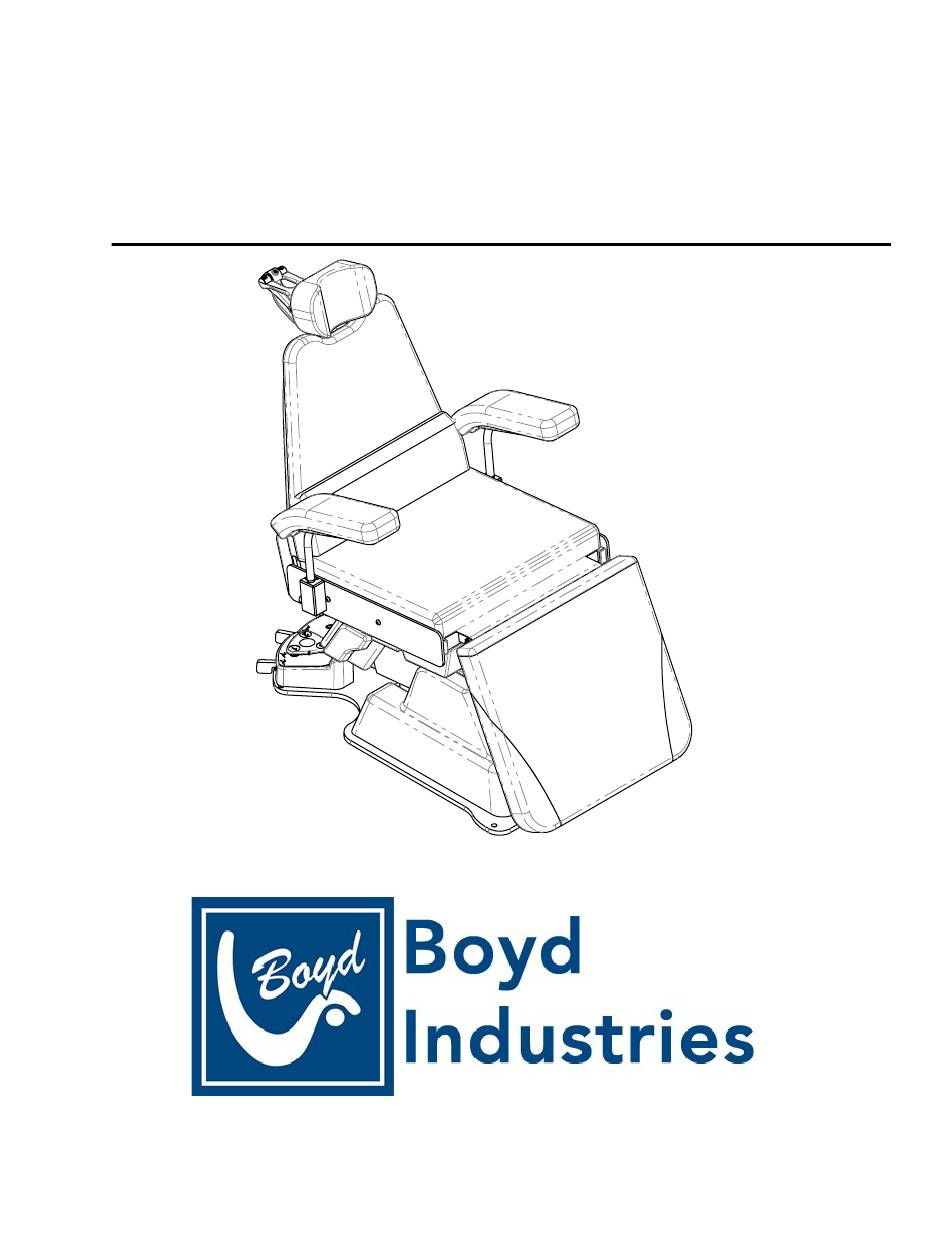

- Page 1 Product Information Manual S2914 Surgery Chair S2914 12900 44th Street North Clearwater, Florida 33762 800-255-2693 * 727-561-9292 FAX: 727-561-9393 SALES FAX: 727-573-1682 SERVICE SCHM-003 Rev 2 www.boydindustries.com...
-
Page 2: Table Of Contents
Table of Contents Title Page Table of Contents Introduction Application of Product Warranty Information Safety Warning Symbols Safety Tips / Precautions About Your Chair Description of Product Line Standard Safety Features General Product Information Product Specifications Transport & Disposal Unpacking and Power Requirements Installation Instructions Chair Installation Initialization Procedure... -
Page 3: Introduction
All Boyd manufactured products are warranted against defects in material or workmanship only. No other warranties are expressed or implied. This warranty shall extend for three (3) years for parts and one (1) year for labor. The Boyd warranty only covers products manufactured by Boyd. -
Page 4: Safety Warning Symbols
Safety Warning Symbols Informational: Read Technical Main Power Off Manual Before Servicing Type B Equipment Main Power On General Warning Symbol Protective Earth Ground Light Caution SCHM-003 Rev 2... -
Page 5: Safety Tips / Precautions
7. Heed warnings: Adhere to all warnings labeled on equipment and in owner’s manual. 8. Accessories: Use only accessories from Boyd Industries, Inc. catalog on this chair. Third party accessories will void the warranty and may be unsafe. 9. Cleaning: Use mild detergent in water on all painted surfaces and plastic parts. -
Page 6: About Your Chair

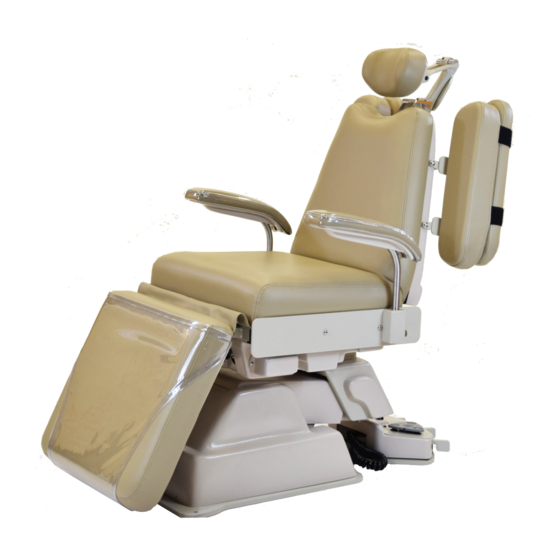

About Your Chair Description of Product Line Model: S2914 Features: Power Back Power Toe Power Tilt Cantilever Style Lift Base Hand Controls (Optional) Foot Control with Programming Standard Safety Features 1. Power Supply Chair is circuit breaker protected. 2. Hand Controls Hand Controls are optional and connected using a coiled cable. -
Page 7: General Product Information
Note: Do not sit on back, foot end of seat or adjustable toe section. These sections are not designed to support the full weight of patient. Do not lift or slide chair using back section or seat upholstery. Warning: Do not modify this equipment without authorization from Boyd Industries, Inc. SCHM-003 Rev 2... -
Page 8: Product Specifications
About Your Chair (continued) Product Specifications S2914 64.00 63.90 29.50 29.60 23.25 TOP VIEW Note: Headrest height is adjustable approximately 6” plus articulating movement 33.90 to 34.00 Raised top of seat frame Lowered 20.00 19.90 to top of seat frame... - Page 9 Disposal of Boyd equipment: Boyd chairs are designed and built to last and provide efficient and safe service for many years. The expected service life of this chair is 15 years. When the time finally comes to retire the chair, please dispose of the equipment according to statutory and regulatory requirements.
-
Page 10: Unpacking And Power Requirements
Socket GFI Outlet is a low amperage circuit not designed to handle heavy loads which can result in breaker shut down and reduced safety when higher amperage circuits are applied. This dual outlet is designed for use with Boyd Light Accessory only. SCHM-003... -
Page 11: Installation Instructions
Installation Instructions Chair Installation Model: S2914 Location: Full size templates are available upon request for laying out location of chair and utilities (if required) prior to actual installation. Caution: Base must be anchored to floor. Failure to do so may result in serious bodily injury to operator and/or patient and could cause unwarranted product damage. -
Page 12: Operation Instructions
Chair should be turned OFF at main power switch (C1) any time it is not Active being used. Outlet Outlet for use with Boyd Light Accessory Only and may not be repositioned. Improper use could lead to injury or equipment damage. - Page 13 Operating Instructions (continued) Model: S2914 Hand & Foot Control Note: Chair movement can be stopped by depressing any directional control (i.e. back up / back down, base up / base down, or any programmed position). Adjustments to chair positioning can be made anytime using the “Up / Down” buttons or pedals.
- Page 14 Operating Instructions (continued) Model: S2914 Headrest Release (All Models) Headrest height adjustment: To lower or raise the headrest; support the headrest with one hand and push the release lever down with the other. Lower or raise the headrest to desired height.
- Page 15 Armrest Positioning: ‘Enter/Exit’ Position Armrest Assembly The armrest for the S2914 has two (2) set positions. One position is for patient use, holding arms parallel to seat and the second position is to help with ease of entering Locking Pin and exiting the chair.
-
Page 16: General Maintenance And Care
Use only cleaners and disinfectants approved for cleaning vinyl. Do not use strong or harsh cleaners as they may cause the vinyl color to fade. Apply the cleaner to a towel, not directly to the vinyl. Refer to vinyl manufacturer’s data on Boyd’s website for cleaning products. -
Page 17: Upholstery Installation And Removal
Upholstery Installation and Removal Installation: S2914 Upholstery Back Upholstery – Place the Hangers located near the top of the Back Upholstery into the slots on the Back Frame and slide upholstery downward until it stops on Hangers. Then, press the Bullets located near the bottom of the upholstery into the Receiving Clips on the Back Frame. -
Page 18: Troubleshooting Guide
Trouble Shooting Guide Symptoms: Appropriate Action: Chair will not operate Check the main ON/OFF switch (C1) to ensure that it is ON, it will be illuminated if it is on. Chair will not operate Check the A/C outlet that the chair is plugged into to insure that there is power going to the chair. Also check the building’s circuit breakers. - Page 19 Boyd Industries, Inc 12900 44th Street N Clearwater, FL 33762 U.S.A SCHM-003 Rev 2...
