Summary of Contents for Laney IRONHEART BCC-IRT30-112

  • Page 2: Table Of Contents

    CONTENTS CONTROLS ............................. 3 FRONT PANEL ........................... 3 REAR PANEL ..........................6 HOW TO CONNECT BCC-IRT30-112 ..................8 ONBOARD LOUDSPEAKER WITH FS4 FOOTSWITCH REMOTE ........8 ONBOARD LOUDSPEAKER, EXTENSION CABINET WITH FX LOOP AND AUXILARY INPUT ............................. 8 USING THE D.I. OUT ......................9 EXAMPLE SETTINGS........................

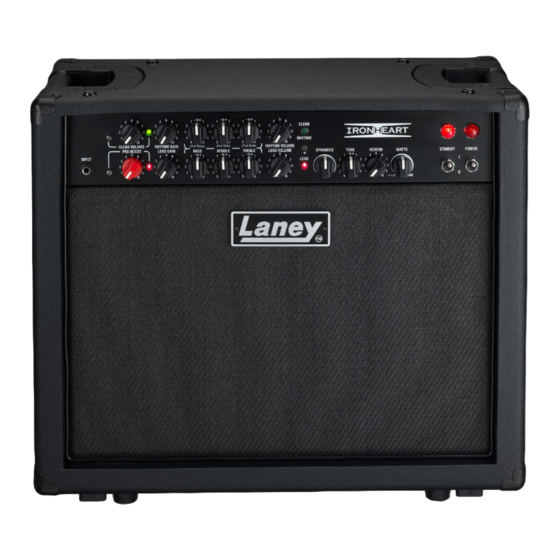

  • Page 3 INTRODUCTION Handcrafted in the UK, our Black Country Customs IRT30-112 is a 30-Watt, super flexible, modern sounding 1 x 12” combo. Delivering lots of smooth, high gain guitar tones and packed full of top end features, the IRT30-112 is an extremely versatile, aggressive sounding unit delivering plenty of low-end growl and punch.
  • Page 4: Controls

    CONTROLS FRONT PANEL INPUT SOCKET Plug in the input jack from your guitar here, suits any standard 6.3mm mono jack. PRE-BOOST CONTROL The switchable and variable PRE-BOOST control is an additional gain setting to increase the input signal to the preamp tubes, just like placing a boost pedal in the signal path. This drives the preamp tubes harder, resulting in more distortion and works on both channels.
  • Page 5 LED VOLUME Controls the Lead channel volume. Experiment with different combinations of the GAIN and VOLUME controls to achieve different sounds. Reducing the GAIN while increasing the VOLUME will result in a warm, open, overdriven sound as the power amp is driven harder, while reducing the VOLUME and increasing the GAIN will give a tighter, more modern sound with more distortion.
  • Page 6 Midway (0) is a good starting point. The sonic outcome when using the TONE and DYNAMICS controls depend greatly on the speaker cabinet connected to the amplifier. REVERB Controls the level of the built in Laney-designed digital reverb. WATTS The WATTS acts like an overall Volume control for the amplifier, allowing the user to retain similar tonal qualities, unique to a valve amplifier, but at reduced output levels, ideal in a practice environment.
  • Page 7: Rear Panel

    REAR PANEL 1. MAINS INLET and FUSE Make sure the voltage indicated on the rear panel is correct for your country! This drawer contains the main safety fuse for the unit. The fuse protects the amplifier from damage in the event of fault by disconnecting the mains power supply. USE ONLY THE CORRECT SIZE AND RATING SPECIFIED ON THE REAR PANEL, also detailed in the Specifications table of this manual.
  • Page 8 b. LEVEL switch • -30dB - PA/Desk level • +4dB - Line level - for driving an active cabinet directly. c. GROUND LIFT In the unlikely event of ground hum when connecting to other equipment, simple select the D.I. GROUND LIFT. 4.
  • Page 9: How To Connect Bcc-Irt30-112

    HOW TO CONNECT BCC-IRT30-112 Plug the speaker jack into the 8Ω socket and set the Impedance selector to 8Ω. The included FS4 footswitch is connected to provide remote switching of the BOOST, CLEAN, CHANNEL and REVERB controls. When using an additions extension cabinet set the Impedance selector to 4Ω as shown. Connect your effects pedalboard to the FX loop with the FX loop FX Loop level set to 0dB.
  • Page 10: Using The D.i. Out

    The high quality, IR loaded, speaker emulated D.I. output can be connected to any balanced/unbalanced line level input device such as a PA or audio interface to DAW. Toggle off the cabinet emulation should you want to use your own in the DAW. In the examples below the SPEAKER outputs must be connected to a suitable cabinet or speaker load box.
  • Page 11: Example Settings

    EXAMPLE SETTINGS The best way to get started with your BCC-IRT30-112 is to experiment with the controls to find your favourite sounds. However, for a head start, here are a few example tone settings to try out: CLEAN ROCK METAL DETUNED METAL BLUES JAZZ...
  • Page 12: Block Diagram

    BLOCK DIAGRAM Page 11...
  • Page 13: Specifications

    SPECIFICATIONS MODEL BCC-IRT30-112 SUPPLY VOLTAGE ~100V, ~120V, ~220V, ~240V 50/60Hz MAINS FUSE ~100V/~120V: T1.6A L 250V (FACTORY PRESET) ~220V/~230V/250V: T630mA L 250V HT FUSE T315mA L POWER CONSUMPTION 100 Watts OUTPUT POWER RATING 30 Watts LOUDSPEAKER 12” H1280 8Ω LOUDSPEAKER OUTPUTS INTERNAL: 8Ω...
  • Page 14: Dimensions (In Mm)

    DIMENSIONS (in mm) Page 13...
  • Page 15: Safety And Warnings

    1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer.
  • Page 16 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
  • Page 17 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V1.0 Page 16...
