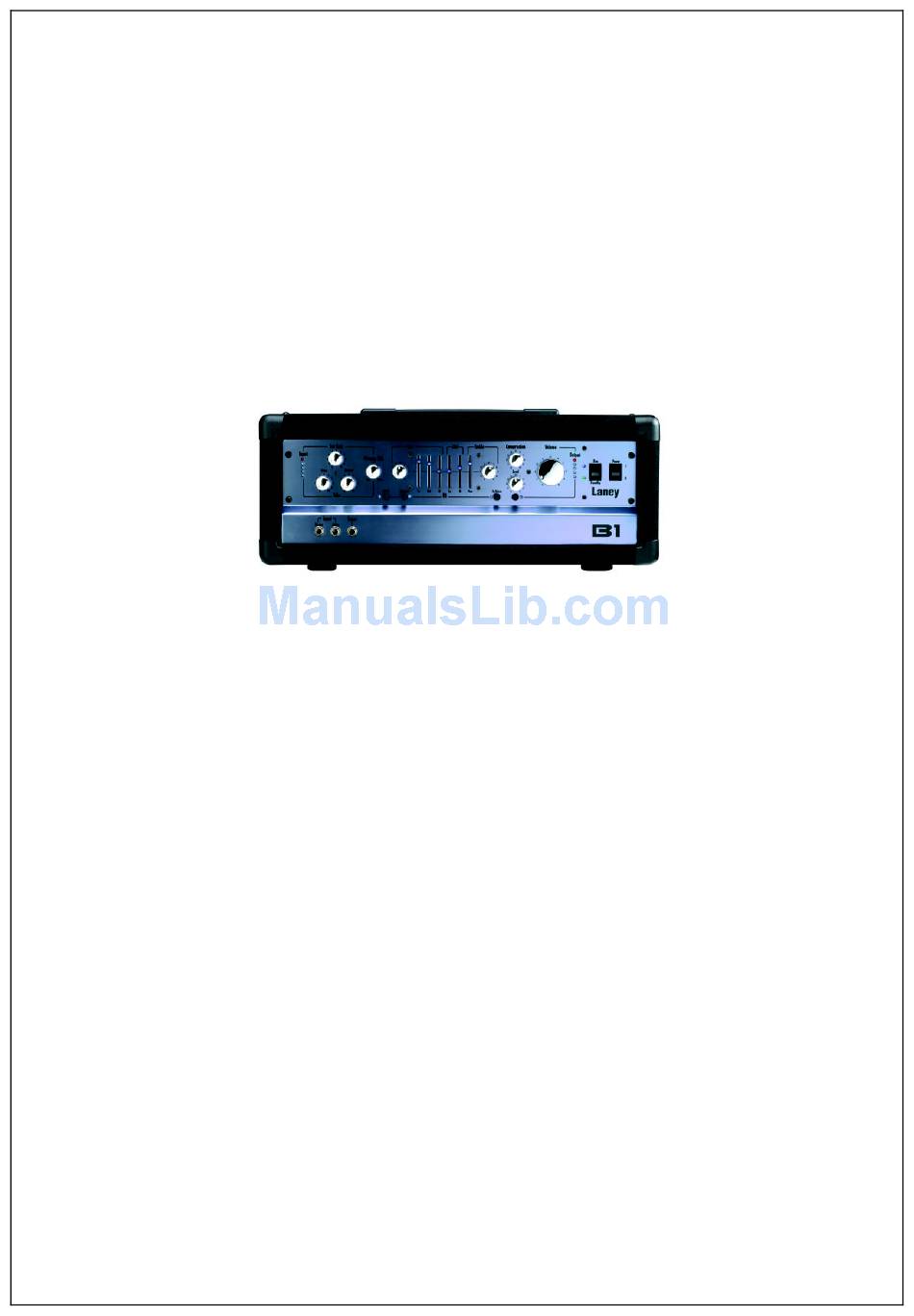

- Page 1 Series Service Manual Laney www.laney.co.uk...
- Page 4 To Internal / Hi Socket To Internal / Hi Socket Bi-Amp/Hi Warning This equipment must be earthed. Warning This equipment must be earthed. Active Crossover Active Crossover Power Consumption Power Consumption Min Load Min Load - + 0 - + 0 750Watts ~50-60Hz 750Watts ~50-60Hz 2 Ohms...
- Page 10 B Series Bass Amplifiers Traditionally, Class A and Class A-B amplifiers have dominated the amplifier marketplace. These purely analogue devices have low power efficiency and most integrated circuit Class A-B amplifiers fall short of true high-fidelity audio quality. Class D amplifiers however, solve the efficiency problem by using switching pulse-width modulation technology. However, this produces audio quality that is far inferior to class A or AB, so efficiency is gained at the expense of audio fidelity.
- Page 11 B1 FACIA DWG NO 3057 ->8P-9245 B1 REAR DWG NO 3135 ->8P-9246 B1 CHASSIS DWG NO 3107 ->8P-9248 B1 HEATSINK EXTR DWG NO 3148 ->8T-6142A B1 MAINS TX + CRIMPS ->->8T-6142 B1 MAINS 115/230 TX ->007905 B1 PREAMP ASSY PCB 9331 ->->001046...
- Page 12 ->->009331 B1 PREAMP ISSUE 6 ->->521010 SSM2018P VOLT'CONTROL AMP' ->->541004 HC25/50 4.8 FASTON ->->588006 POP RIVET (BLACK) ->007907 B1 EFFECTS LOOP ASSY PCB 9332 ->->001300 ORO SHORTING LINK ->->001301 10R 5% RESISTOR ->->001302 47R 5% RESISTOR ->->001303 100R 5% RESISTOR ->->001306...
- Page 13 16A 24V RELAY ->->005610 2 POLE 2 WAY (MX) ->->005624 XLR SKT MALE 90DEG ->->005686 4.8MM TERMINAL SPADE ->->009332 B1 FX LOOP PCB ARRAY ->->530023 4P 3W SLIDE SWITCH ->->571014 10 TURN CHOKE ->007906 B1/CA OUTPUT ASSY PCB 9333 ->->001068 5R6 1W 5% WW RESISTOR ->->001069...
- Page 14 ->->543508 SHORTING LINK (IDC) ->->581018 3*20mm PAN POZI ->->588006 POP RIVET (BLACK) ->->588058 M3*10mm HEX TAPPED ->->8P-9243 CA/B1 OUTPUT TRAY DWG NO 3130 ->->8P-5071 CA1500/600/B1 FET CLAMPING BAR B2 CABINET 005560 SPST MINI ROCKER 2.000 008645 DB X'VER PCB 1.000...
- Page 15 2.000 41522 CS115 LOUDSPEAKER 1.000 541004 HC25/50 4.8 FASTON 2.000 541051 1/4" SML RECEPTACLE 20.000 582007 4*10mm SMALL F/H 6.000 80050 B2 CHASSIS(USE B1) 1.000 8G-B3 GRILL 1.000 8P-5034 WING 2.000 8P-5084 SPEAKER PLATE 1.000 8P-8502 CABINET VENT PLATE 1.000...
