Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........................2 FEATURES ..........................3 CONTROLS ............................. 4 FRONT PANEL ........................... 4 REAR PANEL ..........................7 HOW TO CONNECT BCC-IRT60H/120H ..................9 INTO A PASSIVE CAB ......................9 WITH AN FX LOOP ......................9 USING THE D.I. OUT ......................10 EXAMPLE SETTINGS........................ -
Page 3: Introduction
Since its launch in 2012 the IRONHEART range has been a consistent and much-loved member of the Laney amp family. So it is with great happiness that we are pleased to announce that one of our most successful tube amp ranges has been brought back home to where it was created. -
Page 4: Features
FEATURES • High Power All tube heads, featuring four ECC83 preamp tubes and either two or four 6L6 Power tubes • Full 60 Watts RMS (BCC-IRT60H) or 120 Watts RMS (BCC-IRT120H) • 3 Independent Channels o CH1 – Clean o CH2 – Rhythm, with Gain, Volume and passive 3 band Tone stack o CH3 –... -

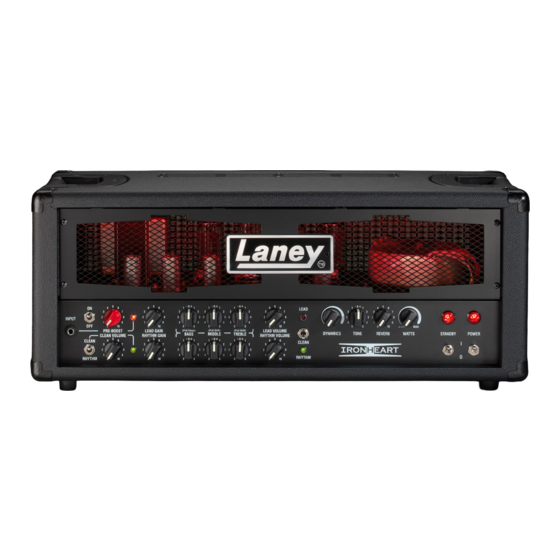

Page 5: Controls
CONTROLS FRONT PANEL INPUT SOCKET Plug in the input jack from your guitar here, suits any standard 6.3mm mono jack. PRE-BOOST CONTROL The switchable and variable PRE-BOOST control is an additional gain setting to increase the input signal to the preamp tubes, just like placing a boost pedal in the signal path. This drives the preamp tubes harder, resulting in more distortion and works on both channels. - Page 6 LEAD VOLUME Controls the Lead channel volume. Experiment with different combinations of the GAIN and VOLUME controls to achieve different sounds. Reducing the GAIN while increasing the VOLUME will result in a warm, open, overdriven sound as the power amp is driven harder, while reducing the VOLUME and increasing the GAIN will give a tighter, more modern sound with more distortion.
- Page 7 REVERB Controls the level of the built in Laney-designed digital reverb. WATTS The WATTS acts like an overall Volume control for the amplifier, allowing the user to retain similar tonal qualities, unique to a valve amplifier, but at reduced output levels, ideal in a practice environment.
-
Page 8: Rear Panel
REAR PANEL 1. MAINS INLET and FUSE Make sure the voltage indicated on the rear panel is correct for your country! This drawer contains the main safety fuse for the unit. The fuse protects the amplifier from damage in the event of fault by disconnecting the mains power supply. USE ONLY THE CORRECT SIZE AND RATING SPECIFIED ON THE REAR PANEL, also detailed in the Specifications table of this manual. - Page 9 Five 1/4" mono jack sockets are provided for the connection of a variety of speaker cabinets. The Laney GS range of cabinets (including the GS112FE / GS212FE / GS412IA and GS412IS) are recommended for use with the BCC-IRT Heads. Always ensure you use the correct impedance socket to match your chosen cabinet/s total impedance.
-
Page 10: How To Connect Bcc-Irt60H/120H
HOW TO CONNECT BCC-IRT60H/120H Plug directly into a passive cabinet using the 4 Ω loudspeaker output. Connect your effects pedalboard to the FX loop with the FX loop FX Loop level set to 0dB. In this example the 8 Ω loudspeaker output is used. Page 9... -
Page 11: Using The D.i. Out
The high quality, IR loaded, speaker emulated D.I. output can be connected to any balanced/unbalanced line level input device such as a PA or audio interface to DAW. Toggle off the cabinet emulation should you want to use your own in the DAW. In the examples below the SPEAKER outputs must be connected to a suitable cabinet or speaker load box. -
Page 12: Example Settings
EXAMPLE SETTINGS The best way to get started with your BCC-IRT HEAD is to experiment with the controls to find your favourite sounds. However, for a head start, here are a few example tone settings to try out: CLEAN ROCK METAL DETUNED METAL JAZZ... -
Page 13: Block Diagram
BLOCK DIAGRAM Page 12... -
Page 14: Specifications
SPECIFICATIONS MODEL BCC-IRT60H BCC-IRT120H SUPPLY VOLTAGE ~100V, ~120V, ~220V, ~240V 50/60Hz MAINS FUSE ~100V/~120V: T5A L 250V (FACTORY PRESET) ~220V/~230V/250V: T2A L 250V HT FUSE T500mA L T1A L POWER CONSUMPTION 200 Watts 300 Watts OUTPUT POWER RATING 60 Watts 120 Watts LOUDSPEAKER OUTPUTS 4 Ω, 8 Ω, or 16 Ω... -
Page 15: Dimensions (In Mm)
DIMENSIONS (in mm) Page 14... -
Page 16: Safety And Warnings
1) Unpacking: On unpacking your product, please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. - Page 17 1) This device may not cause harmful interference. 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
- Page 18 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V1.0 Page 17...
