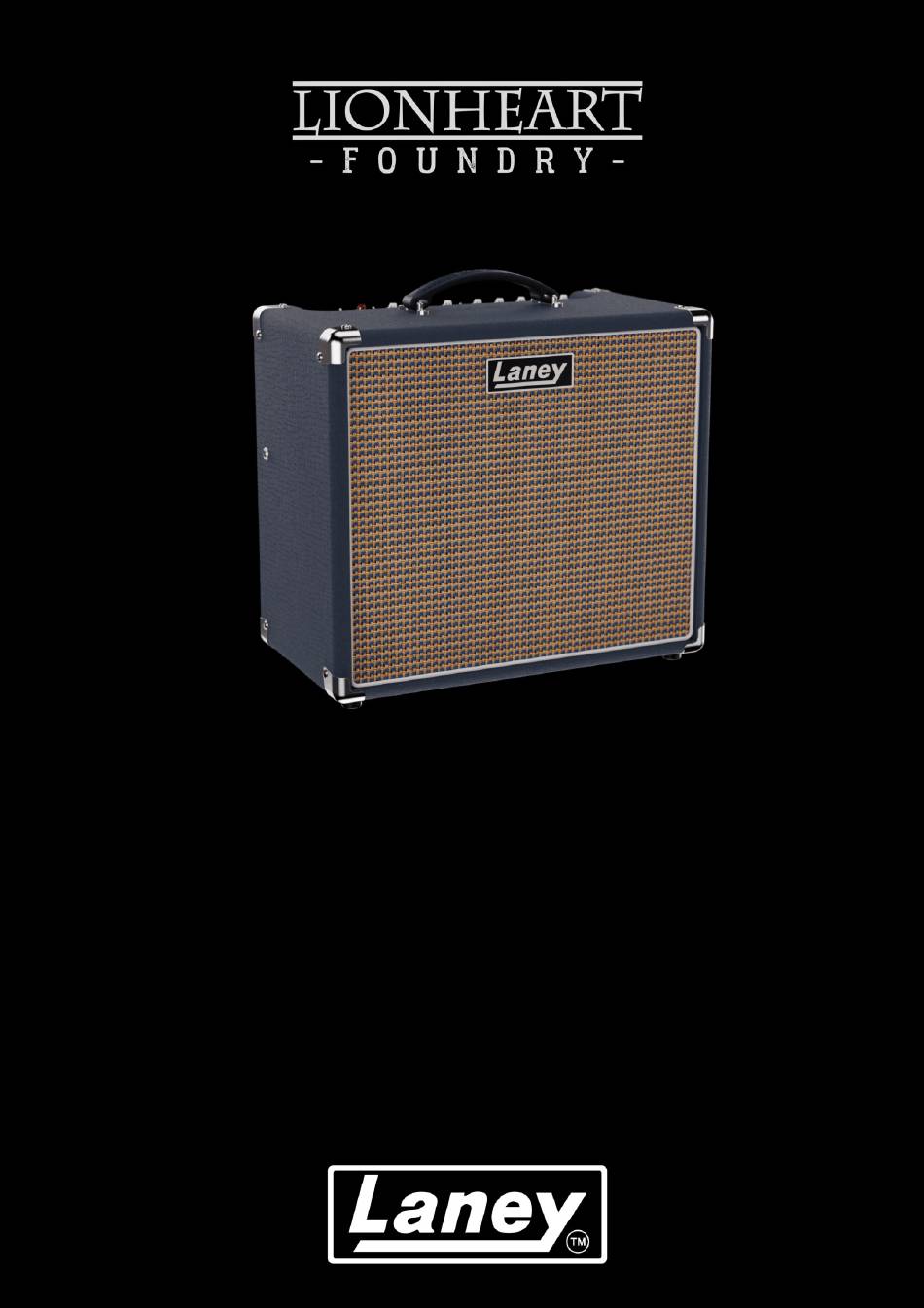

- Page 1 LF60-112 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................2 FEATURES ..............................2 CONTROLS ................................. 3 FRONT PANEL ............................... 3 BACK PANEL ..............................4 HOW TO CONNECT THE LF60-112 ........................ 5 ONBOARD LOUDSPEAKER WITH FX LOOP ..................5 AUX IN AND HEADPHONES OUT ......................5 FOOTSWITCH CONNECTIONS ......................6 EXAMPLE SETTINGS ............................ -
Page 3: Introduction
Great tone is everything and the LIONHEART-FOUNDRY series is everything you need and nothing you don’t! For more information about the complete range of Laney amplifiers please visit our website www.laney.co.uk FEATURES •... -
Page 4: Controls
CONTROLS FRONT PANEL 1. INPUT SOCKET 6.3mm jack socket for the main audio signal input. 2. BOOST CONTROL Pre-channel boost control with on/off switch. 3. CHANNEL 1 + 2 SETTINGS Individual controls for channels 1+2 with a tone switch for each as well as the channel select switch. 4. -
Page 5: Back Panel
BACK PANEL 6. POWER SWITCH Main power switch for the unit. 7. POWER SOCKET Universal IEC input socket to connect the provided mains inlet. 8. AMP POWER CONTROL Switch the power output of the amplifier between full power and <1W for quiet playing. 9. -
Page 6: How To Connect The Lf60-112
HOW TO CONNECT THE LF60-112 Simply connect your guitar to the input socket via a 6.3mm jack and you’re ready to play. To incorporate your effects pedalboard, plug the input and output to the FX send/return sockets respectively. Connect your backing track via the 3.5mm aux in from any media player device such as a mobile phone. -
Page 7: Footswitch Connections
The two remote sockets on the LF60-112 can be connected to FS-1/2 Minis to allow for remote control of the reverb, boost and channel select. The left socket (reverb) should connect to an FS-1, where the control signal will connect to the tip of the jack. -
Page 8: Example Settings
EXAMPLE SETTINGS While the EQ on the LF60-112 is designed to always sound musical, here are a few starters to help you find some familiar tones: Page 7... -
Page 9: Clean
SPECIFICATIONS Model No LF60-112 Name Lionheart Foundry 60-112 Type Guitar Amplifier Combo Input Impedance 1MΩ Amplifier Power 60W RMS or Low Power <1W bedroom mode Channels Clean and Drive (Footswitchable) Bass, Middle Treble (Passive tone stack) Overall Tone Control, plus Bright switch (Clean Channel) and Tone character Switch (Drive Channel) Effects... -
Page 10: Dimensions (In Mm)
DIMENSIONS (in mm) Page 9... -
Page 11: Safety And Warnings
1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. - Page 12 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
- Page 13 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V0.1 Page 12...
