Related Manuals for Topmodel T-28
Summary of Contents for Topmodel T-28

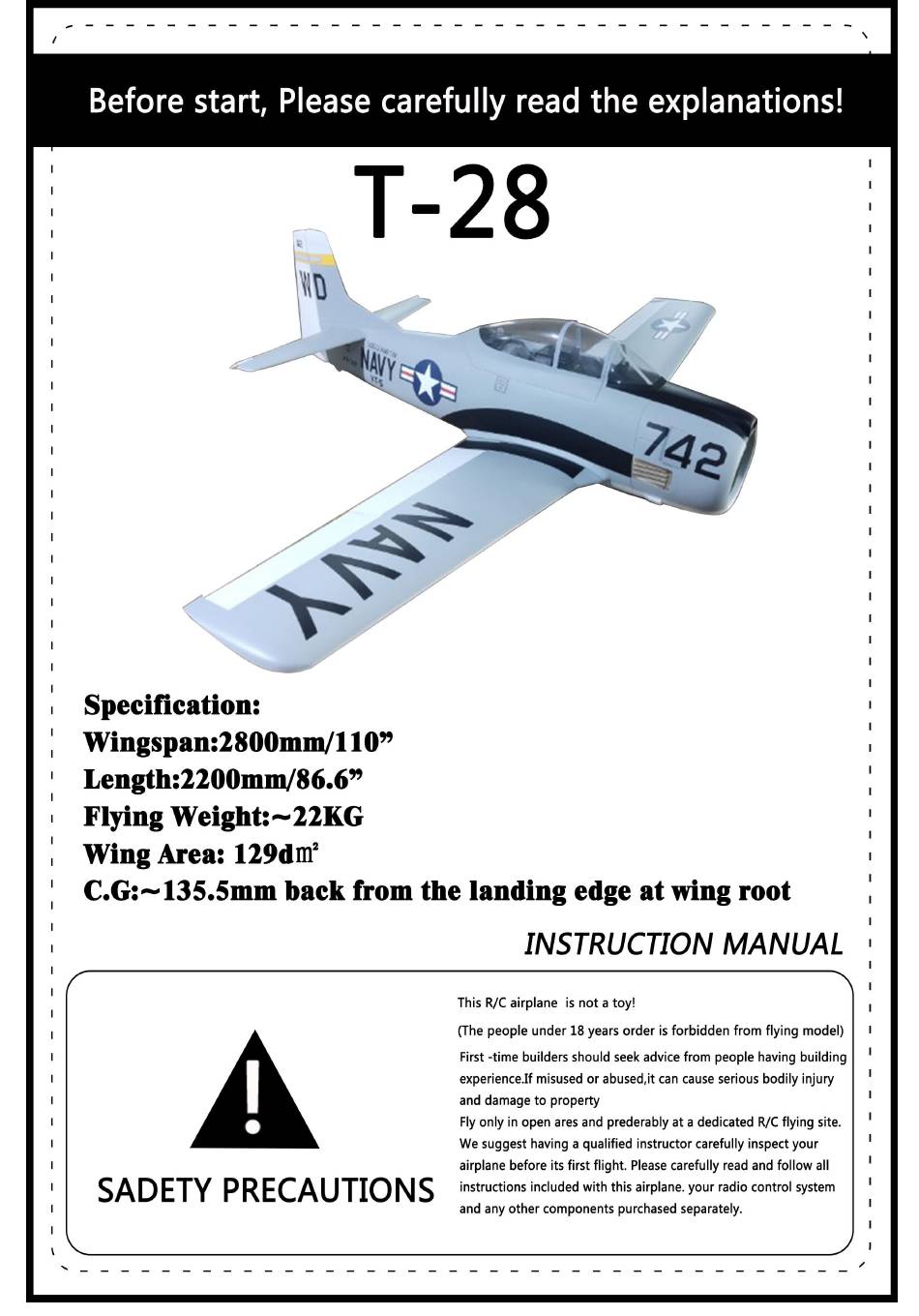

- Page 1 第 1 页...
- Page 2 第 2 页...
- Page 3 第 3 页...
- Page 4 1. Fix the flap fiber horn into the slot of the flap with AB 3.1 As shown in the figure glue and screw 2. Assemble the aileron fiber horn with 2mm screw and ball joint. And then make a slot on the flap , the position is front 4.
- Page 5 6 Assemble the aileron. Prepare the servos of aileron, trim 9. Assemble the cover of midden wing ，Fix the servo on slots to appropriate position in outer wing and flap. make midden wing. Connect the the aluminum parts and servo the push rod go through the inner slot of the flap .
- Page 6 13 Apply AB glue to the slots in the rudder, assemble the 11.1 More picture about Main gear cover C rudder to the vertical fin of the plane, connect the rudder and servo by linkage . 14 assemble the servo into the stab. assemble stab to the fuselage throught the stab tube, assemble another 11.2 More picture about the Main gear cover B stabilizer to the fuselage and lock the stabilizer with...
- Page 7 16 More picture about cowl and engine size 19. More picture about the fixed nose gear 17 It's 22 cm from fire-proof plate to edge of cowl 20. More picture about the fixed main gear 18 The widest sides of the cowling is 33.5 cm 20.1.
- Page 8 18.Adjust the travel of each control surface to the values 19.Adjust the travel of each control surface to the values in the diagrams. These values fit general flight in the diagrams. These values fit general flight capabilities.Readjust according to your needs and flight capabilities.Readjust according to your needs and flight level.
- Page 9 Instructions ： 1. After power on, press the test button for the first time. All hatch LIDS must be open and all landing gear must be open. If any hatch not be opened, the positive and negative of the related servo should be set;...
