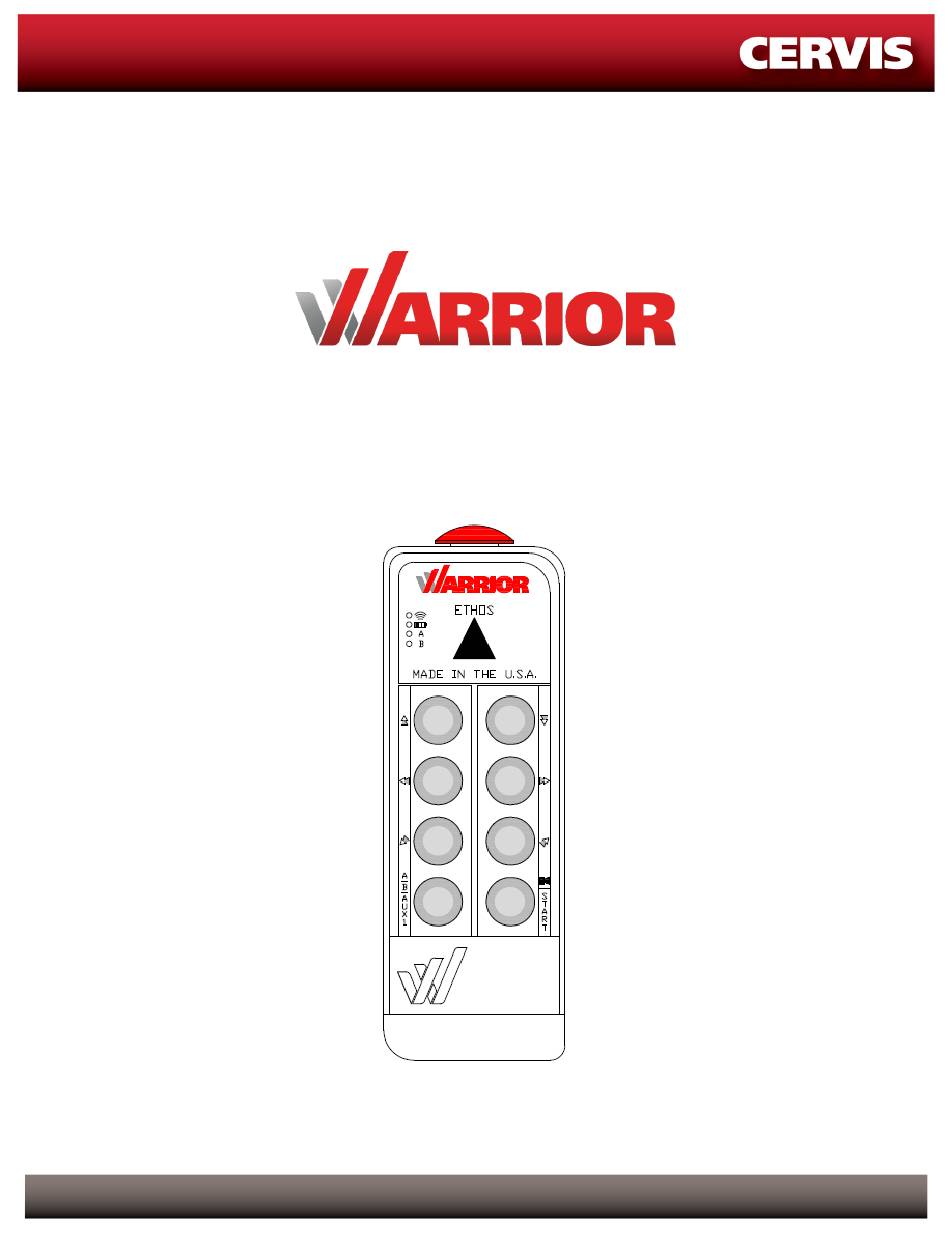

- Page 1 HHMS-9XW08 ETHOS (No Display) Transmitter Manual U129.1.0 Ó2021 Cervis, Inc.
- Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
-
Page 3: Table Of Contents
Table of Contents ......................... i List of Figures ..........................i List of Tables ..........................i Cervis, Inc. Safety Precautions ....................ii 1.0 Warrior HHMS-9XW08 Transmitter Introduction .............. 1 2.0 HHMS-9XW08 Battery Installation ..................3 2.1 HHMS-9XW08 Battery Warning and Shutdown ............. 4 3.0 System Startup ........................ -
Page 4: Cervis, Inc. Safety Precautions
User Manual Cervis, Inc. Safety Precautions Read and follow all instructions. ü ü Failure to abide by Safety Precautions may cause equipment failure, loss of authority to operate the equipment, and personal injury. ü Use and maintain proper wiring. Follow equipment manufacturer instructions. -
Page 5: Warrior Hhms-9Xw08 Transmitter Introduction
Note: Refer to the Warrior receiver manual being used or specific project documentation for relay operation details. IMPORTANT NOTE: This manual only references information for most standard systems. Refer to project drawings for system-specific information and configurations. ©2021 Cervis, Inc. -
Page 6: Figure 2. Warrior Hhms-9Xw08 Transmitter Warnings And Precautions
User Manual Figure 2 is the label that is permanently attached to the unit’s back side. This label describes warnings and precautions that must be followed when using the transmitter. Figure 2. Warrior HHMS-9XW08 Transmitter Warnings and Precautions U129.1.0... -
Page 7: Hhms-9Xw08 Battery Installation
(Solid Red = charging. Solid Green = charged. Maximum charging time = Five hours from zero charge.) 4. When the battery has finished charging, unplug the charger from the wall socket, remove the battery from the charger base, and insert it into the transmitter. Ó2021 Cervis, Inc. -
Page 8: Hhms-9Xw08 Battery Warning And Shutdown
User Manual Figure 3. HHMS-9XW08 Battery Installation 2.1 HHMS-9XW08 Battery Warning and Shutdown The HHMS-9XW08 will alert you if the remaining battery life is getting low or is too low for normal operation. LOW BATTERY The BATTERY LED flashes once per second, indicating a LOW BATTERY (6.6V or less) situation is present. -
Page 9: System Startup
3.1 System Shutdown Push the STOP switch down. The transmitter will shut down. The receiver will retain power but all receiver relay outputs will return to their inactive state. Ó2021 Cervis, Inc. -
Page 10: Hhms-9Xw08 Leds
User Manual 4.0 HHMS-9XW08 LEDs The HHMS-9XW08 has four red light-emitting diodes (LEDs) that indicate transmitter status and are also used for troubleshooting. Table 1. HHMS-9XW08 LEDs Indication Meaning Lit Solid Transmitter searching for receiver or a button is being pressed Flashing Transmitting and receiving messages Radio... -
Page 11: Associate A Transmitter With A Receiver
The system and any spare transmitters sold with the system will be associated with the radio receiver for first-come/first-serve operation before being shipped from Cervis, Inc. However, for any newly added or repaired transmitters, follow these steps to associate a transmitter with the receiver (if it is not communicating with the receiver): ü... - Page 12 User Manual To Associate the HHMS-9XW08 to a Warrior Receiver: 1. Turn the transmitter on. (See Section 3.0) 2. Enter Maintenance Mode as described in Section 5.0 above. 3. To enter Association Mode, press and hold buttons B3 and B4 for five seconds. 4.
- Page 13 RF link with target receiver. Press button B10 again to energize the crane by pulling in the receiver’s MLC and begin normal operation. ü Note: Both receivers must be associated in a Tandem system for the system to operate. Ó2021 Cervis, Inc.
-
Page 14: Clearing Hhms-9Xw08 Stored Receiver Id (Factory Reset)
User Manual ü Note: For additional diagnostic information, observe the receiver LEDs as noted: LED A: flashing strobe once per second during communication LED B: slow flash indicating normal Health LED C: fast flashing TX indicator LED D: fast flashing RX indicator ü... -
Page 15: Hhms-9Xw08 Tandem Operation
B10 to confirm selection. RX A is selected RX B is selected Both selected Following receiver selection confirmation, the target receiver(s) MLC relay(s) will be energized. NOTE that all receiver outputs are enabled at this time. Ó2021 Cervis, Inc. -
Page 16: Hhms-9Xw08 Tandem Operation Receiver Select Mode
User Manual Be sure to observe crane/machine to ensure that the target receiver(s) have been selected. ü Note: The system is First come, First serve. If a second transmitter is turned on, and the first transmitter is turned off, the system will return to Receiver Select Mode, and the receiver(s) must be selected again as indicated in Steps 1-4 above. -
Page 17: Hhms-9Xw08 Accessories
Battery charger kit (includes battery, charger and 15201500 power supply) HHMS Top Label (standard) 15205421 HHMS Top Label (tandem) 15205423 HHMS Rail Labels (standard) 15205422 Carrying Strap 2101004 Boot 15205135 Strap Kit (Includes carrying strap and boot) 15205398 Ó2021 Cervis, Inc. -
Page 18: Hhms-9Xw08 Transmitter Specifications
User Manual 8.0 HHMS-9XW08 Transmitter Specifications Table 2. HHMS-9XW08 Transmitter Specifications Item Description Power +6V to +8.4V Source Rechargeable Lithium Ion Battery Pack Low Battery Warning 6.6V – batteries should be immediately replaced Low Battery Shutdown 6.1V – batteries must be replaced to operate Environment Operating Temp -4°F to 140°F (-20°C to 60°C) -
Page 19: Appendix A: Exposure To Radio Frequency Energy
Required Training All installers and operators of host applications that include an SRF310 FT module must be trained to use proper RF safety precautions as presented in this Appendix. Ó2021 Cervis, Inc. -
Page 20: Appendix C: Agency Identification Label Locations
User Manual Appendix C: Agency Identification Label Locations ü Note: The Agency ID label for all Warrior HHMS-9XW08 base units can be found in the position shown. Figure 5. Agency Identification Label Locations U129.1.0... - Page 21 HHMS-9XW08 Transmitter Ó2021 Cervis, Inc.
