HHMS-9XW08
Transmitter Manual
U121.1.0
2019 Cervis, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Warrior HHMS-9XW08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cervis Warrior HHMS-9XW08

Summary of Contents for Cervis Warrior HHMS-9XW08

  • Page 1 ™ HHMS-9XW08 Transmitter Manual U121.1.0 2019 Cervis, Inc.
  • Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.

  • Page 3: Table Of Contents

    Appendix B: RF Exposure Considerations ................13 Appendix C: Agency Identification Label Locations .............. 14 List of Figures Figure 1. Warrior HHMS-9XW08 LED and Button Descriptions ..........1 Figure 2. Warrior HHMS-9XW08 Transmitter Warnings and Precautions ........ 2 Figure 3. HHMS-9XW08 Battery Installation ................5 Figure 4.

  • Page 4: Cervis, Inc. Safety Precautions

    User Manual Cervis, Inc. Safety Precautions  Read and follow all instructions.  Failure to abide by Safety Precautions may cause equipment failure, loss of authority to operate the equipment, and personal injury.  Use and maintain proper wiring. Follow equipment manufacturer instructions.

  • Page 5: Warrior Hhms-9Xw08 Transmitter

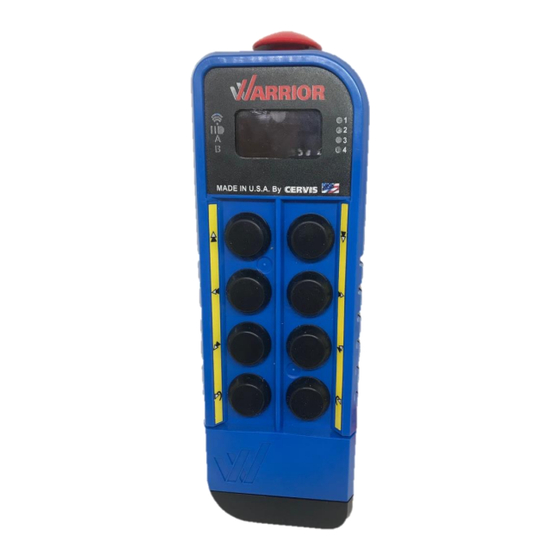

    HHMS-9XW08 Transmitter 1.0 Warrior HHMS-9XW08 Transmitter The Warrior HHMS-9XW08 transmitter is a compact transmitter that interfaces with all Warrior receivers. The HHMS-9XW08 has two standard green pushbuttons on the unit’s back side and eight multi-step actuators on its front. These eight actuators are performance-rated at 2.3 lbf (10.23 N) for more than two million operations and available in three different configurations:...

  • Page 6: Hhms-9Xw08 Leds

    Figure 2 is the label that is permanently attached to the unit’s back side. This label describes warnings and precautions that must be followed when using the transmitter. Figure 2. Warrior HHMS-9XW08 Transmitter Warnings and Precautions 1.1 HHMS-9XW08 LEDs The HHMS-9XW08 has eight red light-emitting diodes (LEDs) that indicate transmitter status and are also used for troubleshooting.

  • Page 7: Hhms-9Xw08 Oled Display On-Screen Icons

    S9 and S10 to select/initialize. A Select Indicates that the A Select relay is on. B Select Indicates that the B Select relay is on. Transmitter Reset While in Maintenance Mode, this icon displays when Mode resetting the transmitter ID. RESET 2019 Cervis, Inc.

  • Page 8: Hhms-9Xw08 Battery Installation

    User Manual Icon Indication Meaning Stop Switch Prompts the operator to pull or push the Stop switch. Prompt 1.3 HHMS-9XW08 Battery Installation A rechargeable Lithium Polymer (LiPO) battery pack powers HHMS-9XW08 transmitters. When installed and fully charged, the battery supplies power to the transmitter for 80 continuous operating hours.

  • Page 9: Hhms-9Xw08 Battery Warning And Shutdown

    Shutdown Low Battery Lights solid for Flashes 1x/sec 1.25 seconds! until Auto- Transmitter then Shutdown shuts down and occurs. can’t be used until the depleted battery is recharged. Figure 4. HHMS-9XW08 Remote Low Battery Warning and Auto-Shutdown 2019 Cervis, Inc.

  • Page 10: System Startup

    User Manual 1.5 System Startup 1. Press the Start button on the rear of the transmitter. START 2. After the “Warrior SN” message briefly flashes: The LEDs on the left side flash in the following pattern: And the display indicates to push the STOP button/switch either down or up (depending on its current position).
  • Page 11 HHMS-9XW08 Transmitter 4. When the connected link icon appears on the display (with receiver number displayed): Press the Start button again to energize the crane by pulling in the receiver’s main line contact (MLC) relays. START 2019 Cervis, Inc.

  • Page 12: Associate A Transmitter With A Receiver

    User Manual 2.0 Associate a Transmitter with a Receiver Warrior HHMS-9XW08 transmitters are associated with their respective system receivers at the factory before the system is shipped. A receiver will only communicate with the transmitters it is associated with. Other Warrior HHMS-9XW08 transmitters can be associated with the receiver when necessary, either as additional spares or to replace damaged transmitters.
  • Page 13 Note: If the B LED goes out before you press the buttons, restart the process from Step 1. 3. The LEDs begin to scroll, indicating that the transmitter is in Maintenance Mode. The OLED screen also displays the following icon: 2019 Cervis, Inc.
  • Page 14 User Manual 4. Press and hold actuators S3 and S4 for five seconds. 5. LED A begins blinking; release actuators S3 and S4. The OLED screen also displays the following icon: The transmitter is now in Association Mode. U121.1.0...
  • Page 15 S9 (if you don’t want to use that receiver). Repeat this action until you find the correct receiver. 6. When the closed link icon appears on the display (with receiver number displayed): Press the Start button to energize the crane by pulling in the receiver’s MLC. START 2019 Cervis, Inc.

  • Page 16: Hhms-9Xw08 Transmitter Specifications

    User Manual 3.0 HHMS-9XW08 Transmitter Specifications Table 3. HHMS-9XW08 Transmitter Specifications Item Description Power +6V to +8.4V Source Rechargeable Lithium Ion Battery Pack 6.6V – batteries should be immediately replaced Low Battery Warning 6.1V – batteries must be replaced to operate Low Battery Shutdown Environment Operating Temp...

  • Page 17: Appendix A: Exposure To Radio Frequency Energy

    Required Training All installers and operators of host applications that include an SRF310 FT module must be trained to use proper RF safety precautions as presented in this Appendix. 2019 Cervis, Inc.

  • Page 18: Appendix C: Agency Identification Label Locations

    User Manual Appendix C: Agency Identification Label Locations  Note: The Agency ID label for all Warrior HHMS-9XW08 base units can be found in the position shown. Figure 5. Agency Identification Label Locations U121.1.0...
  • Page 19 HHMS-9XW08 Transmitter ™ www.cervisinc.com Visit our Web site at:  2019 Cervis, Inc. All rights reserved. Content is subject to change without notice. 2019 Cervis, Inc.
