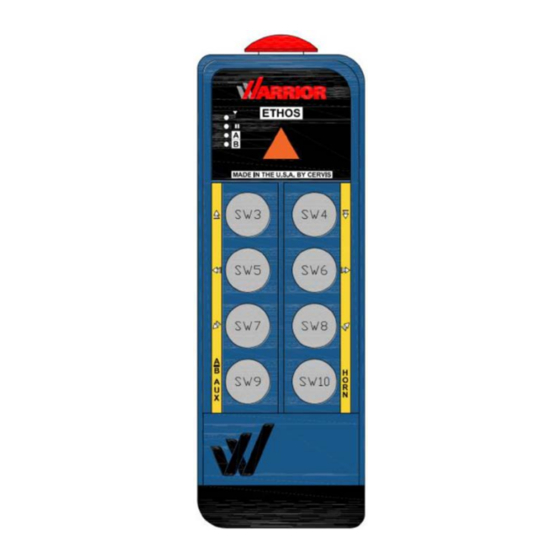

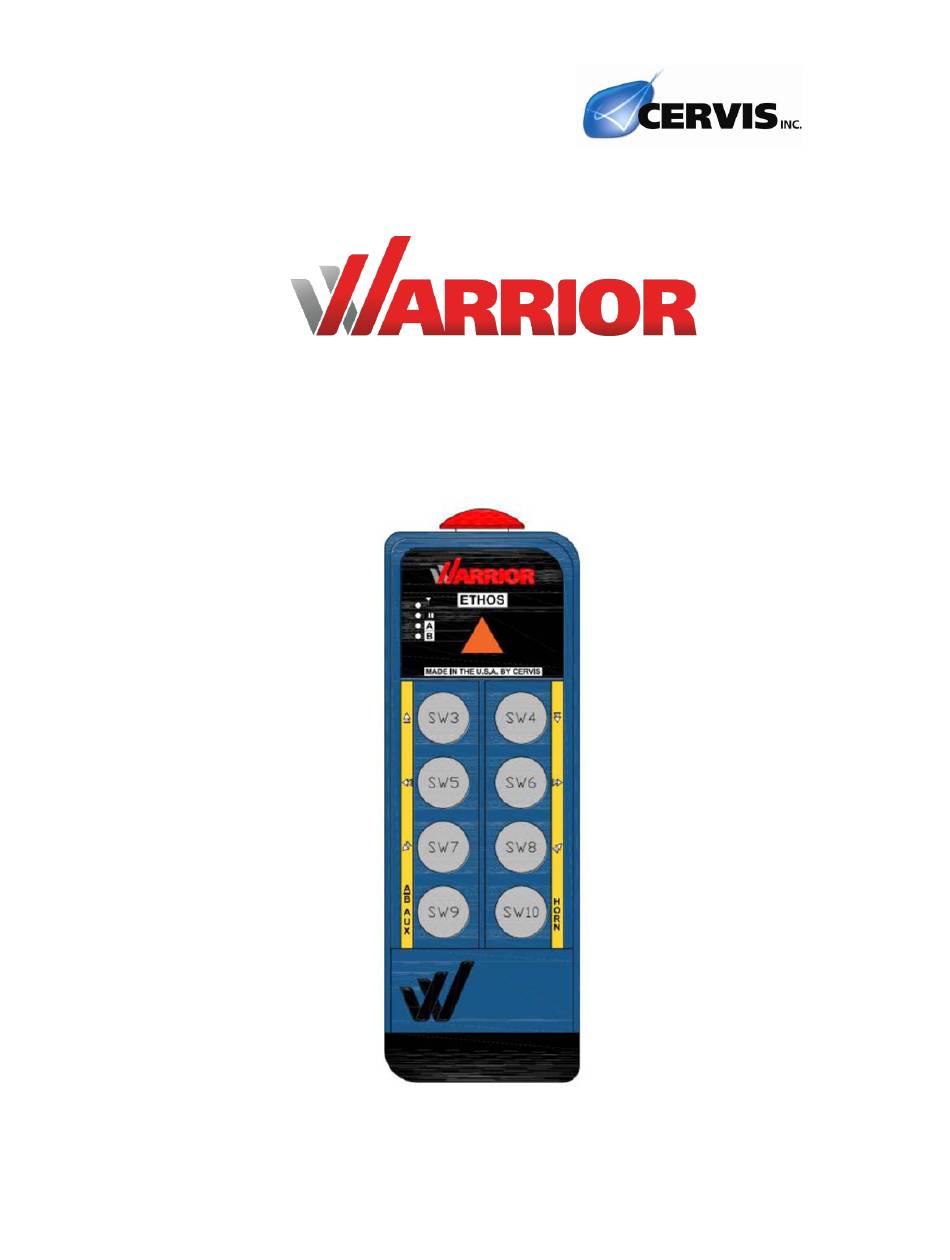

- Page 1 ™ ETHOS HHMS-9XW08-ND Model Transmitter Manual 2020 Cervis, Inc.
- Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
-
Page 3: Table Of Contents
Table of Contents Table of Contents .......................... i List of Figures ..........................i List of Tables ..........................i Cervis, Inc. Safety Precautions ....................ii 1.0 ETHOS Model Transmitter ....................1 1.1 LED Indications ......................... 2 1.2 Battery Installation ......................3 1.3 Battery Warning and Shutdown .................. -
Page 4: Cervis, Inc. Safety Precautions
User Manual Cervis, Inc. Safety Precautions Read and follow all instructions. Failure to abide by Safety Precautions may cause equipment failure, loss of authority to operate the equipment, and personal injury. Use and maintain proper wiring. Follow equipment manufacturer instructions. -
Page 5: Ethos Model Transmitter
(B1) (B2) Custom Start Hoist Up Hoist Down Trolley Forward Trolley Reverse Bridge Reverse Bridge Reverse WARNING/START A/B Select/AUX Figure 1.Switch Assignments Note: Refer to receiver manual for relay sequence relationships and DIP switch configuration options. ©2020 Cervis, Inc. -
Page 6: Led Indications
User Manual Figure 2 is the label that is permanently attached to the unit’s back side. This label describes warnings and precautions that must be followed when using the transmitter. Figure 2. Warrior Transmitter Warnings and Precautions 1.1 LED Indications The ETHOS model has four LEDs that indicate transmitter status and are also used for troubleshooting. -
Page 7: Battery Installation
(Solid Red = charging. Solid Green = charged. Maximum charging time = Five hours from zero charge.) 4. When the battery has finished charging, unplug the charger from the wall socket, remove the battery from the charger base, and insert it into the transmitter. 2020 Cervis, Inc. -
Page 8: Battery Warning And Shutdown
User Manual Figure 3. Battery Installation 1.3 Battery Warning and Shutdown The ETHOS transmitter will alert you if the remaining battery life is getting low or is too low for normal operation. LOW BATTERY The BATTERY LED flashes once per second, indicating a LOW BATTERY situation is present, recharge the battery pack. -
Page 9: System Startup
4. Once a link is established and the main contactor of the crane is closed you may commence operation. At anytime during operation you may press the STOP switch down to STOP all motion commands. If unsure of anything during operation press STOP and remove battery and consult factory for support. 2020 Cervis, Inc. -
Page 10: How To Associate A Transmitter To A Receiver
User Manual 2.0 How to Associate a Transmitter to a Receiver Warrior transmitters are associated (or paired) with the receiver at the factory before the system is shipped. A receiver will only communicate with the transmitters it is associated with. In the event that you need to ‘move’... - Page 11 If at any time during the process you become unsure of the activity you are seeing press the STOP switch, remove the battery and contact the factory for support. 2020 Cervis, Inc.
- Page 12 User Manual 2.1 How to clear a transmitter memory of association You can erase the transmitters association with a receiver. If this process is completed the transmitter will not work with any receivers until it is re-associated with a receiver using the process outlined above.
- Page 13 ETHOS Model Transmitter 2020 Cervis, Inc.
-
Page 14: Transmitter Specifications
User Manual 3.0 Transmitter Specifications Table 2. Transmitter Specifications Item Description Power +6V to +8.4V Source Rechargeable Lithium Ion Battery Pack Low Battery Warning 6.6V – batteries should be immediately replaced Low Battery Shutdown 6.1V – batteries must be replaced to operate Environment Operating Temp -4°F to 140°F (-20°C to 60°C) -
Page 15: Appendix A: Exposure To Radio Frequency Energy
Required Training All installers and operators of host applications that include an SRF310 FT module must be trained to use proper RF safety precautions as presented in this Appendix. 2020 Cervis, Inc. -
Page 16: Appendix C: Agency Identification Label Locations
User Manual Appendix C: Agency Identification Label Locations Figure 5. Agency Identification Label Locations U129.0.0... - Page 17 ETHOS Model Transmitter ™ www.cervisinc.com Visit our Web site at: 2019 Cervis, Inc. All rights reserved. Content is subject to change without notice. 2020 Cervis, Inc.
