OCEANAIRE OWC Series Engineering, Installation And Service Manual

Deluxe portable water-cooled spot cooler

Advertisement

Quick Links

OWC series
Deluxe Portable Water-Cooled Spot Cooler
ENGINEERING, INSTALLATION AND SERVICE MANUAL
052-004
OA-EISM-OWC 06012023

Advertisement

Table of Contents
loading

Summary of Contents for OCEANAIRE OWC Series

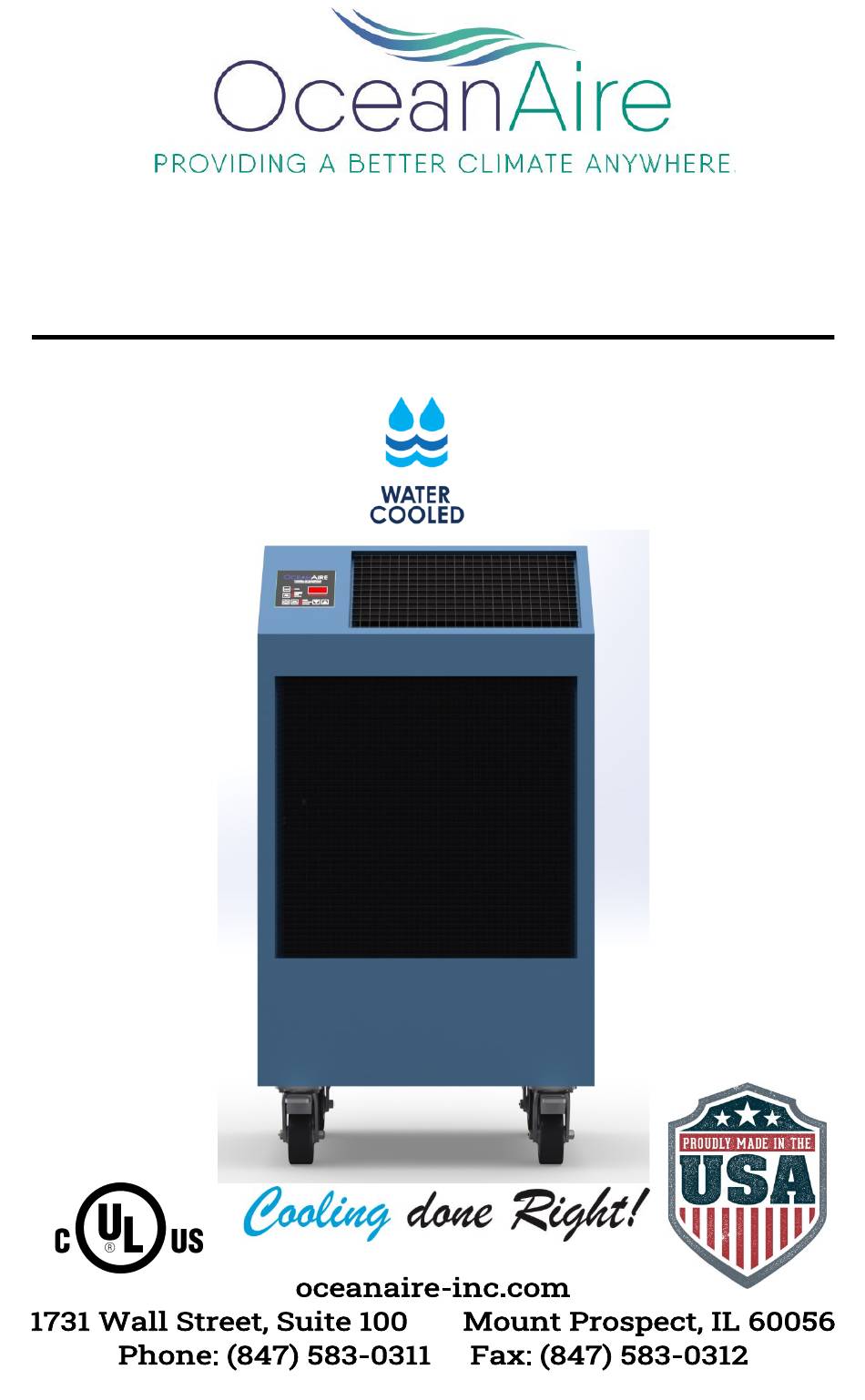

  • Page 1 OWC series Deluxe Portable Water-Cooled Spot Cooler ENGINEERING, INSTALLATION AND SERVICE MANUAL 052-004 OA-EISM-OWC 06012023...
  • Page 2: Table Of Contents

    FORWARD This manual provides the user with basic details for the installation and operation of the OceanAire OWC spot cooler. It is recommended to read and fully understand the instructions outlined within this manual, before operating the OWC unit. As with all commercial air conditioning equipment, it is recommended to have the OWC sized and installed by a licensed specifying engineer and contractor, in accordance with all local and state codes.
  • Page 3: General Information

    GENERAL INFORMATION The OceanAire OWC is a portable water-cooled air conditioner designed for perma- nent or temporary spot cooling applications. The entire unit has been built in a pre- mium sheet metal cabinet, equipped with heavy-duty casters for mobility. All OWC models come with a 10-foot power cord for electrical connection and added mobility in service.
  • Page 4 SPECIFICATIONS MODEL: OWC 1211 1811 2412 3612 3632 3634 6012 6032 6034 COOLING CAPACITY 11,800 18,000 23,950 36,100 60,100 VOLTAGE (V/Phase) at 60Hz 115/1 208-230/1 208-230/3 460/3 208-230/1 208-230/3 460/3 AMPS 11.3 23.7 16.5 TOTAL WATTS 1300 2100 2700 5000 IN-RUSH CURRENT (AMPS) PLUG TYPE 5-15P LCDI 5-15P LCDI 6-20P LCDI 6-20P LCDI...
  • Page 5: Standard Features

    STANDARD FEATURES CABINET The OWC-Series cabinet is constructed of 18 gauge steel with a gray and blue polyester powder coated finish that will compliment any decor. The entire cabinet is insulated with sound absorbing insulation for cool, quiet comfort. All units come equipped with swivel casters for portability and convenient set-up.
  • Page 6 APPLICATIONS SPOT COOLER The OWC can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning where cooling the entire space is impractical. Cool air is discharged from the unit and is directed where it is needed.
  • Page 7: Electrical Configurations

    ELECTRICAL CONFIGURATION All OWC Series units are equipped with a standard 10-foot long service cord with plug configurations and receptacle requirements as shown in this chart. OWC1211, OWC1811, OWC2412 and OWC3612 units come with LCDI (Leakage Current Detection & Interruption) devices that serve as a means of electrical protection.
  • Page 8: Use Of Extension Cords

    USE OF EXTENSION CORDS CAUTION FOR MODELS OWC1211 AND OWC1811 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODELS OWC2412 and OWC3612 AN EXTENSION CORD CAN BE USED PROVIDED IT IS RATED AT LEAST 20 AMPS @ 250 VOLTS WITH GROUNDING- TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
  • Page 9 OWC Optional ACCESSORIES NOZZLE KIT NK-1 (2 X 4-Inch) OWC12 2NK-2 (2 X 6-Inch) OWC18, 24 2NK-3 (2 X 8-Inch) OWC36, OWC60 EVAPORATOR RETURN AIR PLENUM DEP-10 (10-Inch Round) OWC12 2DEP-12 (12-Inch Round) OWC18, 24 DEP-16 (16-Inch Round) OWC36, 60 DISCHARGE DUCT ADAPTER DDA-6 (6-Inch Round)
  • Page 10: Accessories

    ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concentrating the airflow, the nozzles increase the air velocity towards production lines to cool personnel and/or equipment. In server rooms, the nozzles can be used to direct the airflow through the rack to remove the hot air from the area of the equipment.
  • Page 11 ACCESSORIES EVAPORATOR RETURN AIR PLENUM Evaporator return air plenums are available for installations where it is required to duct air to the inlet of the evaporator. The evaporator return air plenums allow the user to connect round duct (flexible or rigid) to the return air intake to reduce air noise and increase the number of options for solving difficult cooling problems.
  • Page 12 ACCESSORIES DISCHARGE DUCT ADAPTER Discharge duct adapters are available for applications where ducted evaporator discharge is required. The adapters can be easily installed on the unit without fasteners, and be installed for either vertical or horizontal ducting. The standard discharge grille is removed and the adapter is attached in the grille opening. DDA-6 for OWC12, converts the evaporator discharge to a 6-inch diameter round duct.
  • Page 13 ACCESSORIES HOSE KIT Hose kits are available in lengths of 10, 25, and 40 feet. Each hose kit allows for con- venient installation of the OWC, while allowing for portability within the allowable space. NOTICE —When using these hoses in applications with water pressures exceed- ing 50 PSIG, a water pressure reducing valve must be installed in the water supply line prior to the hose kit;...
  • Page 14 SPECIAL ORDER ITEMS In some applications, units can be manufactured with optional components for add- ed performance and longevity. Below are a few of the OWC options that are availa- ble. Consult your distributor for pricing and availability. CUPRO-NICKEL CONDENSER When chemically treated water, salt water or brine, is used in the condenser coil, it is recommended that the OWC be equipped with a 90/10 Cupro-Nickel condenser coil.
  • Page 15: Installation

    BEFORE INSTALLING Check the unit for any damage. All OceanAire products are thoroughly inspected at the factory and carefully packaged. If any damage is evident, contact OceanAire IMMEDIATELY.
  • Page 16 POWER BUTTON OCEANAIRE DELUXE ELECTRONIC CONTROLLER When power is connected, the controller will display “888” momentarily, and then disappear. Press the POWER button, then scroll drown to the TEMP SELECT button until the SET POINT is displayed. Adjust the SET POINT to the desired temperature, and the unit will cool as required.
  • Page 17 FAN SPEED —The operator can select between AUTO or MANUAL fan speed con- trol. Pressing the FAN SPEED button will switch speed from AUTO to MANUAL. In MANUAL mode, pressing the FAN SPEED button will change fan speed from low to high.
  • Page 18 P1 = 85, P2 = 40 OWC60 P1 = 85, P2 = 45 NOTICE Program Parameters are NOT controller default values. They are OceanAire Factory Settings DISPLAY FAULTS LAC………………... Low AC line power AAA or - - -……. Failed Air Sensor (unit will not run) CON………………..
  • Page 19 WATER VALVE ADJUSTMENT Each OCEANAIRE WATER-COOLED unit is equipped with an automatic water regulating valve to control the condenser water flow rate. The water valve will open when the unit is in the cooling mode and adjust the gallon per minute flow rate based on the entering water temperature (EWT).
  • Page 20: Electronic Controller

    REPLACEMENT PARTS PROCEDURE IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A LICENSED TECHNICIAN WARNING —TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING A. FAN MOTOR 1. Remove cabinet left-side panel (when looking at the front of the unit).
  • Page 21: Troubleshooting Guide

    TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI (if equipped) and reset.
  • Page 22: Preventive Maintenance

    5. Check the inlet and outlet piping. Clean as necessary. Be sure there are no kinks in the lines that would inhibit flow. GENERAL Oceanaire products are NOT approved for outdoor use. Therefore, off-season storage should be indoor, protected from weather conditions. When necessary maintenance steps outlined above are followed, the air conditioner will provide long and reliable service.
  • Page 23: Piping Schematic

    PIPING SCHEMATIC EVAPORATOR COIL SUCTION LINE EVAPORATOR BLOWER CAPILLARY TUBES WATER OUT FILTER/DRIER ACCESS VALVES HP RESET CONDENSER COIL DISCHARGE LINE WATER IN WATER VALVE COMPRESSOR PIPING SCHEMATIC Water-Cooled Spot Cooler...
  • Page 24 WIRING SCHEMATIC FOR OWC1211, 1811 and 2412...
  • Page 25 WIRING SCHEMATIC FOR OWC3612...
  • Page 26 WIRING SCHEMATIC FOR OWC6012...
  • Page 27: Three Phase Monitor

    THREE PHASE MONITOR...
  • Page 28 WIRING SCHEMATIC FOR OWC3632...
  • Page 29 WIRING SCHEMATIC FOR OWC6032...
  • Page 30 WIRING SCHEMATIC FOR OWC3634 and 6034...
  • Page 31 LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer,...
  • Page 32: Warranty

    SERIAL NUMBER: _____________________________ Date Purchased: ______________________________ Purchased from: _______________________________ Date Installed: _________________________________ For Technical Support or service parts, contact our Keep Cool Team at 847-583-0311 In order to receive the benefits of our warranty, please register on-line at www.oceanaire-inc.com 052-004 OA-EISM-OWC 06012023...
