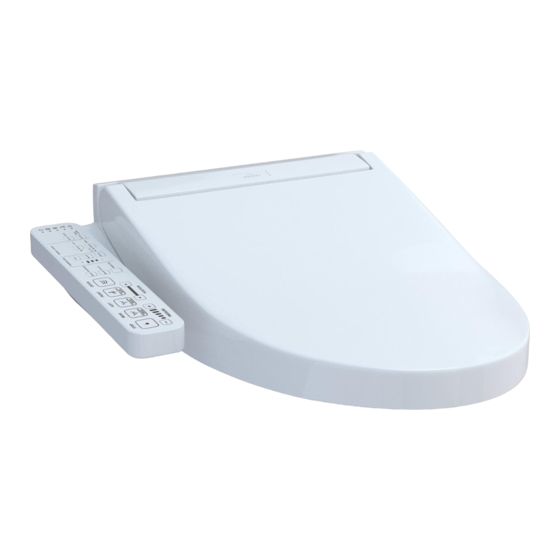

WASHLET C2
lBefore installation, be sure to read this installation manual. Mount parts properly according to the directions.
lกรุ ณ าอ่ า นคู ่ ม ื อ ก่ อ นการติ ด ตั ้ ง และติ ด ตั ้ ง อย่ า งถู ก ต ้อง
lTrước khi lắp đặt, hãy chắc chắn rằng đã đọc bản hướng dẫn này để lắp đặt sản phẩm đúng cách.
Safety Precautions / Precautions before installation .......................................................................... (EN) 2
Chú ý về an toàn / Chú ý trước khi lắp đặt ...........................................................................................(VI) 6
Included parts / ชิ ้ น ส่ ว นที ่ ใ ห ้มาด ้วย / Phụ kiện đóng kèm ............................................................................. 8
Part diagram / แผนผั ง แสดงชิ ้ น ส่ ว น / Bản vẽ hoàn thiện .............................................................................. 9
Installation procedure / ขั ้ น ตอนการติ ด ตั ้ ง / Trình tự lắp đặt ........................................................................ 10
Trial run / การทดสอบการทํ า งาน / Vận hành thử ........................................................................................ 14
After trial run / หลั ง ทดสอบการทํ า งาน / Sau khi vận hành thử ................................................................... 15
Information for the installer / ข ้อมู ล สํ า หรั บ ผู ้ติ ด ตั ้ ง / Thông tin dành cho cửa hàng lắp đặt......................... 15
2021.10.18
D07D02
Installation Guide
คํ า แนะนํ า ในการติ ด ต ั ้ ง
Sách hướng dẫn lắp đặt
Table of contents / สารบ ัญ / Mục lục

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WASHLET C2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toto WASHLET C2

  • Page 1: Table Of Contents

    Installation Guide คํ า แนะนํ า ในการติ ด ต ั ้ ง WASHLET C2 Sách hướng dẫn lắp đặt lBefore installation, be sure to read this installation manual. Mount parts properly according to the directions. lกรุ ณ าอ่ า นคู ่ ม ื อ ก่ อ นการติ ด ตั ้ ง และติ ด ตั ้ ง อย่ า งถู ก ต ้อง...
  • Page 2: Safety Precautions / Precautions Before Installation

    Safety Precautions Safety Precautions (Continued) Be sure to carefully read this “Safety Precautions” document before beginning installation. WARNING Please comply with all safety warnings and precautions. Symbols and Meanings Check that the product is electrically grounded appropriately. For a ground, use copper wire with a ground resistance of 100 Ω max. and a diameter of 1.6 mm min. This symbol indicates misuse This symbol indicates misuse WARNING...
  • Page 3: ข ้อควรระวั ง ด ้านความปลอดภั ย / ข ้อควรระวั ง ก่ อ นการติ ด ตั ้ ง

    ข้ อ ควรระว ังด้ า นความปลอดภ ัย ข้ อ ควรระว ังด้ า นความปลอดภ ัย (ต่ อ ) กรุ ณ าอ่ า น "ข ้อควรระวั ง เพื ่ อ ความปลอดภั ย " นี ้ อ ย่ า งละเอี ย ดก่ อ นการติ ด ตั ้ ง รวมถึ ง ปฏิ บ ั ต ิ ต ามคํ า เตื อ นและข ้อควรระวั ง เพื ่ อ ความ คํ...
  • Page 4: Chú Ý Về An Toàn / Chú Ý Trước Khi Lắp Đặt

    Chú ý về an toàn Chú ý về an toàn (Tiếp tục) Trước khi lắp đặt, hãy chắc chắn rằng đã đọc chú ý về an toàn này để có thể tuân theo đúng các hạng mục chú ý, Cảnh báo cảnh báo về...
  • Page 5: Included Parts / ชิ ้ น ส่ ว นที ่ ใ ห ้มาด ้วย / Phụ Kiện Đóng Kèm

    Included parts / ช ิ ้ น ส ่ ว นที ่ ใ ห้ ม าด้ ว ย / Phụ kiện đóng kèm. Required items / รายการที ่ ต ้ อ งใช ้ / Các dụng cụ cần chuẩn bị Use B-4 to prevent damage to the product.
  • Page 6: Installation Procedure / ขั ้ น ตอนการติ ด ตั ้ ง / Trình Tự Lắp Đặt

    Symbols and their meanings / ส ั ญล ักษณ์ แ ละความหมาย / Ý nghĩa của biểu tượng Tasks that must be conducted by the installer. Work flow direction. งานที ่ ผ ู ้ติ ด ตั ้ ง ต ้องทํ า ขั...
  • Page 7 Insert C-1 into A-3 until a click sound is heard. (After C-1 is mounted, make sure that it can not be removed even if it is pulled.) ใส่ C-1 ลงใน A-3 จนกระทั ่ ง ได ้ยิ น เสี ย งคลิ ก (หลั...
  • Page 8: Trial Run / การทดสอบการทํ า งาน / Vận Hành Thử

    Trial run / การทดสอบการทํ า งาน / Vận hành thử After trial run / หล ังการทดสอบกาารทํ า งาน / Sau khi vận hành thử Open the water shutoff valve (C-4). เปิ ด วาล์ ว ปิ ด นํ ้ า (C-4) Mở...
