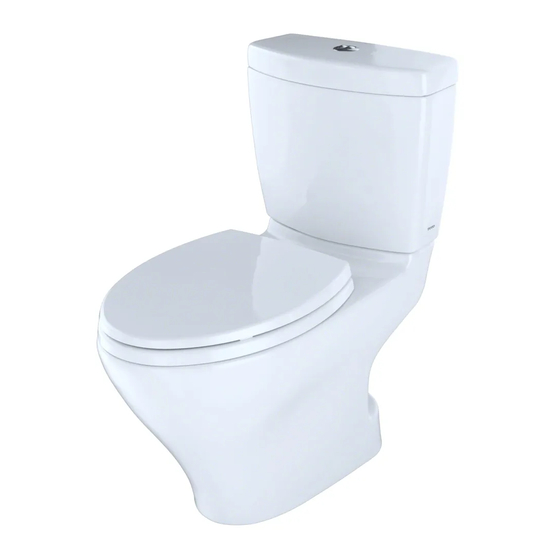

Toto CST412MF Installation Instructions Manual

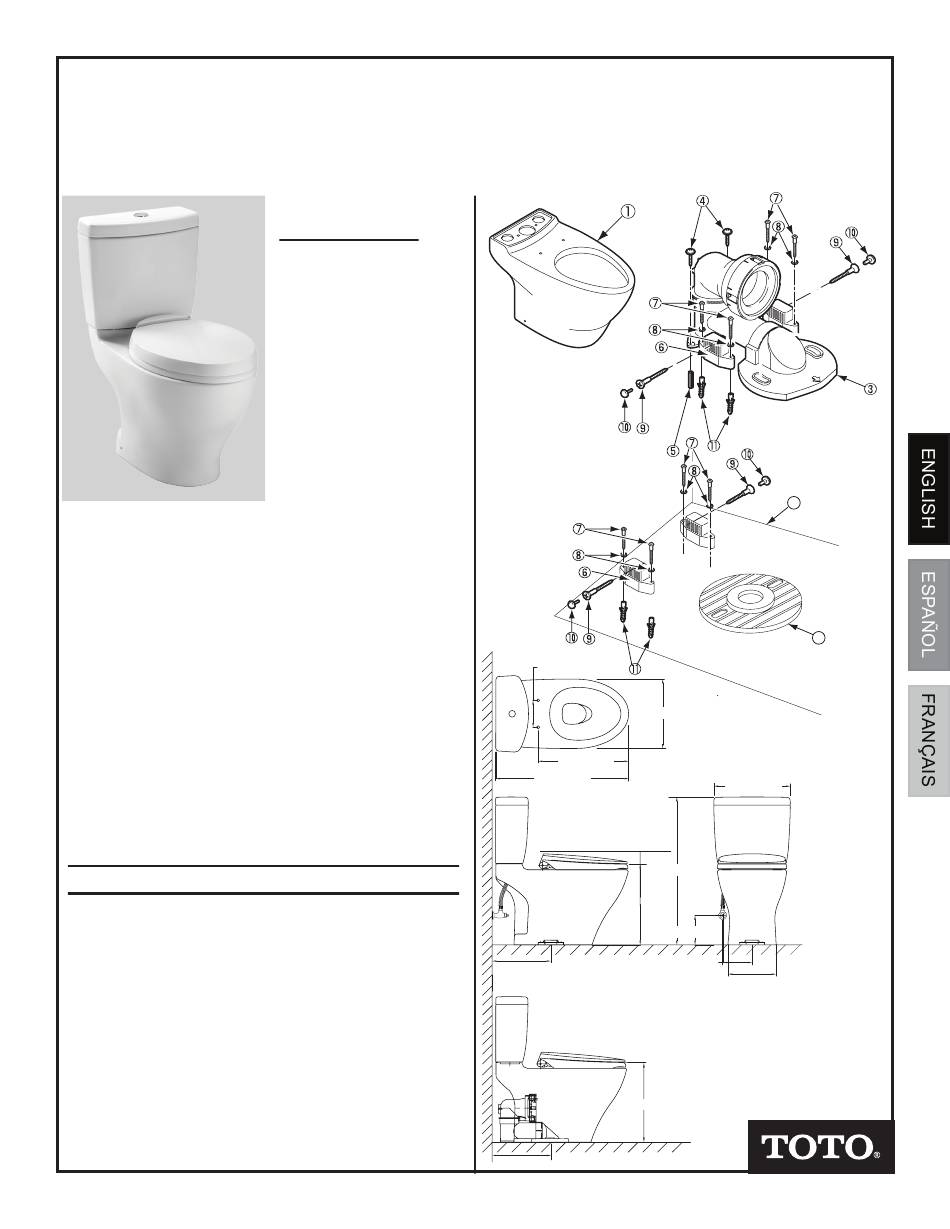

INSTALLATION INSTRUCTIONS
Dual Flush Toilets: CST412MF, CST412MF.10,
CST414M, CST416M & CST464MF
COMMON TOOLS NEEDED:
• 12" pipe wrench
• Carpenter's level
• Plier
• Putty knife
• For wood floor installation
³⁄ " drill bit for Modular Rough In
³²
⁄
" drill bit for Mounting Block
11
64
• For concrete/tile installation
⁄
" drill bit for Modular Rough In
9
32
⁄
" drill bit for Mounting Block
11
32
MATERIALS REQUIRED:
• Flexible supply tube / connector
• Supply Stop Valve
• Mounting (T) bolts & nut (2pc)
• Wax ring / seal
Package Content (bowl portion):
No. Item
1. Vitreous china bowl
2. Top mount bolt set (for seat)
3. Modular rough-In (THU216)
4. Screw with washer
5. Green anchor
6. Mounting block
7. Screw for mounting block installation
8. Washer for mounting block installation
9. Side screw for mounting block
10. Side screw cap
11. White anchors
12. Socket (for 412, 416 & 464 models)
13. Socket Template
I M P O R T A N T
Read these instruction thor-
oughly before installation.
You have purchased one
of the best working toilet
available today, backed by
TOTO's world wide finest
reputation.
• 10" adjustable wrench
• Tape measure
• Screwdriver
• Drill
Quantity
1
1
1
2
2
2
4
4
2
2
4
1
1
5-½" (140mm)
14-¼" (362mm)
18-½" (470mm)
27-½" (700mm)
17-¼" (440mm) for CST412 & CST464
16-¼" (413mm) for CST416
31-¼" (794mm)
CST412, CST416
& CST464
MODELS
7-¾" (197mm)
12" (305mm)
or 10" (254mm) for
CST414MF.10 minimum
*NOTE: Water supply
rough-in significantly
wider than standard 5"
rough-in, consult your
builder or contractor
CST414 MODEL
16-¼" (413mm)
12" (305mm)
0GU031-3
Aug 2009
13
1 3
12
1 2
15-¼" (388mm)
6" (470mm)
10" (254mm)
1
