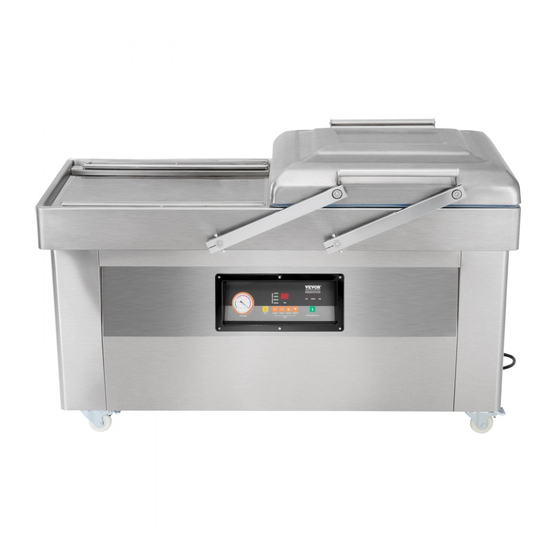

VACUUM PACKING MACHINE
USER MANUAL
Model:
DZ600-2S-V1
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR DZ600-2S-V1
Summary of Contents for VEVOR DZ600-2S-V1
- Page 1 VACUUM PACKING MACHINE USER MANUAL Model: DZ600-2S-V1 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: General Safety Rules
1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES Please read the entire operating instructions before using the products for the first time;... - Page 4 Dropping,falling,pressure or tensile forces could destroy or at least limit the function of the product. Never position the device in the vicinity of combustible or easily inflammable materials. Always make sure that the rotary table on which the object is placed is located in the center of the housing! This machine uses plastic film or plastic aluminum film as materials to vacuum package paste foods, fruits, sauce vegetables, chemicals,...
- Page 5 MODEL AND PARAMETERS Model DZ-600-2S-V1 Seal Length 600mm Chamber Dimensions 670*550*40mm Vacuum Pump Type Oil Pump Pumping Speed of Vacuum Pump 19.8m³/h Voltage AC 120V 60Hz Max. Power 4500W Vacuum Pump Power 900W Machine Material 201 Stainless Steel - 4 -...
-
Page 6: Structure Diagram
STRUCTURE DIAGRAM Vacuum cover Heating strip handle Tension spring Swing arm Circuit board Vacuum gauge Heating transformer Control panel Oil filler Bag pressing rod Vacuum pump Silicone strip Oil drain port Air Switch Exhaust solenoid valve Sealing strip Air release solenoid valve Spring circuit board - 5 -... -
Page 7: Parts List
PARTS LIST Model Parts DZ-600-2S-V1 Heating Wire ×2 Teflon Cloth ×2 Vacuum Pump Oil ×2 Vacuum Bag ×60 Chamber Sealing Strip ×1 Vacuum Pump Oil Seal ×2 User Manual ×1 OPERATING INSTRUCTIONS 2.Unscrew the oil mist filter of the 1.Push the door latch towards the vacuum pump and fill it with oil. - Page 8 3.PANEL OPERATION INSTRUCTIONS 1）: ①Time and status display. Display "_" as standby mode; Display "00" as the deflation status; The displayed numbers indicate the status of vacuum, sealing, permanent tem, or cooling (with decimal points). 2） : ②Emergency stop button. Use when there is a problem with the machine ， operation or when it is need to stop urgently.
- Page 9 requirements, press ⑥INCREASED to increase the time/⑦ECREASE to reduce the time, generally normal bags for about 2 seconds. It is strictly prohibited to set the sealing time too long or burn out the sealing heating strip. Step 5: Press the ⑤SEALING TEMPERATURE button twice, point the indicator light to ⑨MIDDLE, and the general items are recommended to use the medium temperature state.
-
Page 10: Circuit Diagram
7.When the machine needs to change oil or is not used for a long time, loosen the screw under the oil window and drain the vacuum pump oil. Suggest replacing the vacuum pump oil after the machine has been working continuously for 800 hours CIRCUIT DIAGRAM - 9 -... -
Page 11: Maintenance
MAINTENANCE 1. After using , the surface of the machine should be cleaned and residual materials inside the machine should be removed. 2. When storing, keep in a clean, dry, and safe location away from children. 3. All maintenance, service, and repairs not discussed in the manual should only be performed by qualified service technicians. - Page 12 5.Reinstall the original screws 6.Completing the Installation. Replace the Chamber Sealing Strip 1. Remove the Chamber Sealing Inject new glass glue into the Strip track to ensure air tightness 3.Replace the Chamber Sealing 4. Completing the Installation Strip with a new one - 11 -...
-
Page 13: Troubleshooting And Solutions
TROUBLESHOOTING AND SOLUTIONS Problem Possible Cause Solution The machine doesn't 1.No connection of the 1.Check whether the work and the control power supply. plug and socket are panel shows nothing. 2.The contact of the effectively connected. power switch looses. 2.Check whether the wiring of the power input part inside the machine is loose or detached. -
Page 14: Correct Disposal
CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. - Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
