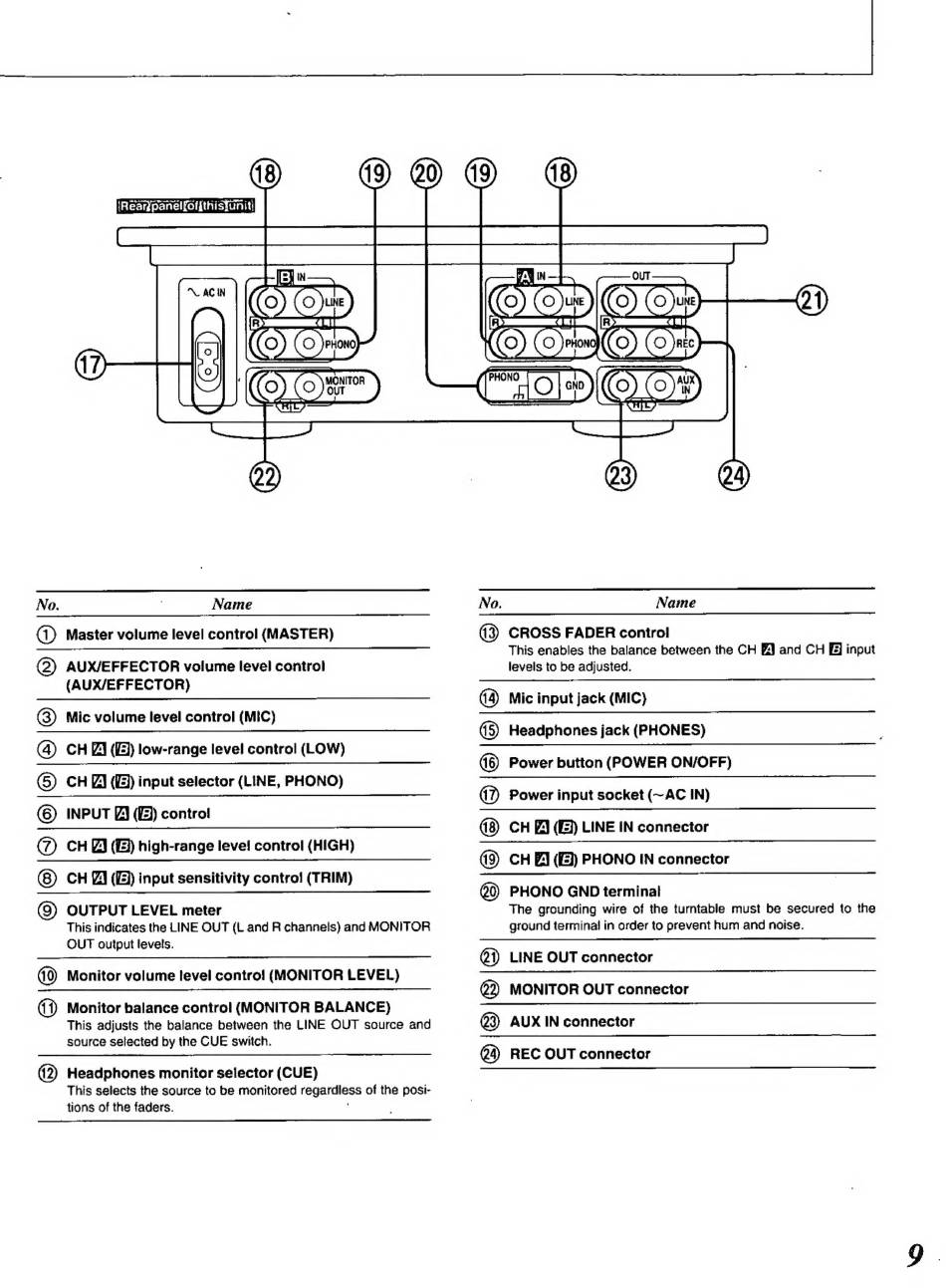

Name
Master volume level control (MASTER)
AUX/EFFECTOR volume level control
(AUX/EFFECTOR)
Mic volume level control (MIC)
CH EI (E) low-range level control (LOW)
CH RI (E) input selector (LINE, PHONO)
INPUT Й (EH contro!
CH Й (E) high-range leve! control (HIGH)
CH Й (E) input sensitivity contro! (TRIM)
OUTPUT LEVEL meter
This indicates the LINE OUT (L and R channels) and MONITOR
OUT output levels.
Monitor volume level contro! (eMONITOR LEVEL)
Monitor balance control (MONITOR BALANCE)
This adjusts the balance between the LINE OUT source and
source selected by the CUE switch.
Headphones monitor selector (CUE)
This selects the source to be monitored regardless of the posi-
tions of the faders.
i
ә
ө
ӘӘ.
elis
Name
CROSS FADER control
This enables the balance between the CH Ед and CH В input
levels to be adjusted.
Mic input jack (MIC)
Headphones jack (PHONES)
Power button (POWER ON/OFF)
Power input socket (~AC IN)
CH Й (E) LINE IN connector
CH EI (f) PHONO IN connector
PHONO GND terminal
The grounding wire of the turntable must be secured to the
ground termina! in order to prevent hum and noise.
LINE OUT connector
MONITOR OUT connector
AUX IN connector
REC OUT connector
