OUTPUT LEVEL
Већ
MONITOR
о PHONES
MONITOR
OUT
REC OUT
LINE OUT

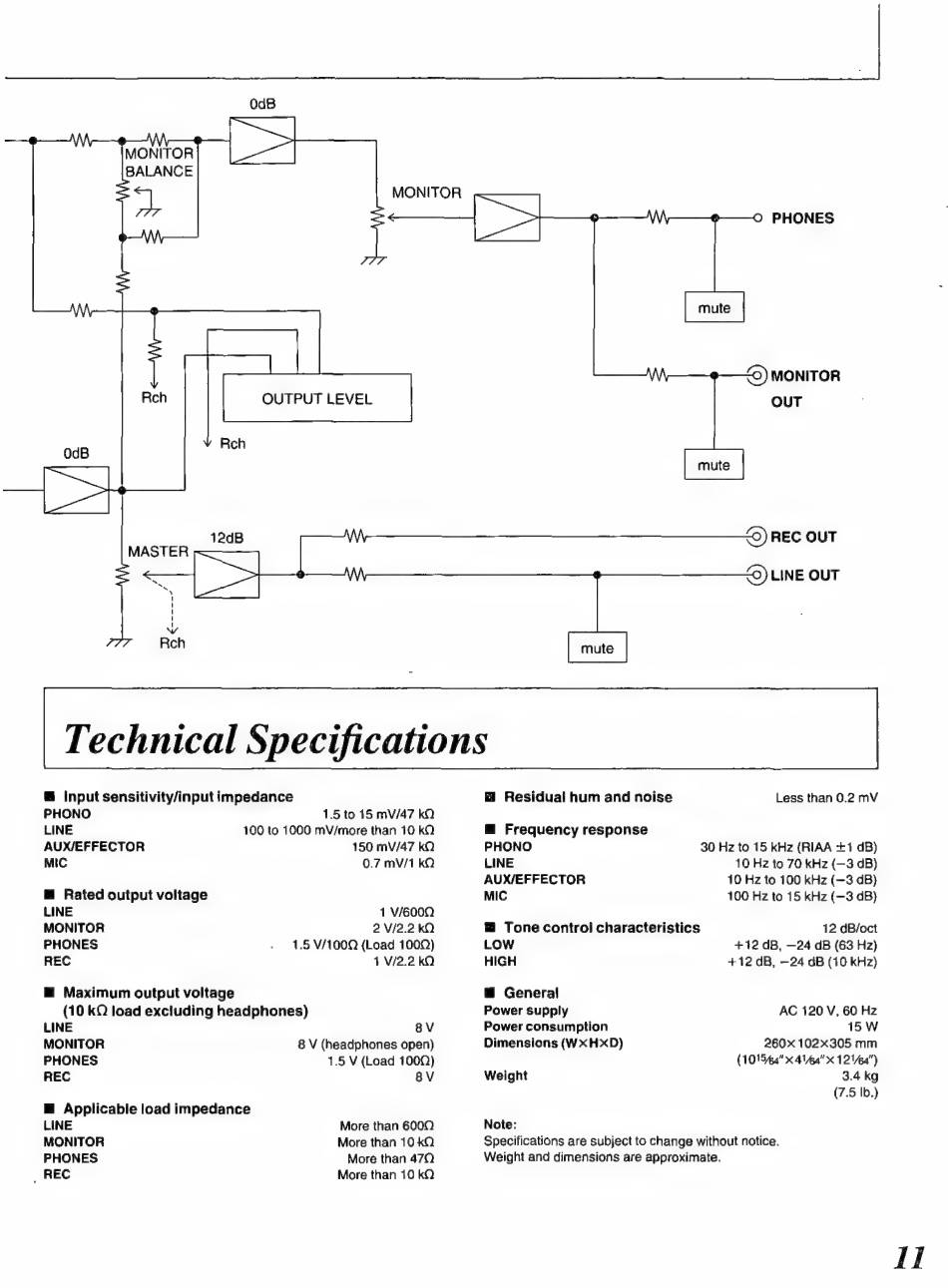

Technical Specifications
8 Input sensitivity/input impedance
PHONO 1.5 to 15 mV/47 КО
LINE 100 to 1000 mV/more than 10 КО
AUX/EFFECTOR 150 mV/47 КО
MIC 0.7 mV/1 КО
Ш Rated output voltage
LINE 1 V/600Q
MONITOR 2 V/2.2 КО
PHONES 1.5 V/100Q {Load 1000)
REC 1 V/2.2 kO
Ш Maximum output voltage
(10 kQ load excluding headphones)
LINE av
MONITOR 8 V (headphones open)
PHONES 1.5 V (Load 1000)
REC BV
B Applicable load impedance
LINE More than 6000
MONITOR More than 10 КО
PHONES More than 470
_ REC More than 10 КО
B Residual hum and noise Less than 0.2 mV
B Frequency response
PHONO 30 Hz to 15 kHz (RIAA +1 dB)
LINE 10 Hz to 70 kHz (—3 dB)
AUX/EFFECTOR 10 Hz to 100 kHz (—3 dB)
MIC 100 Hz to 15 kHz (—3 dB)
Ш Tone control characteristics 12 dB/oct
LOW +12 dB, —24 dB (63 Hz)
HIGH +12 dB, —24 dB (10 kHz)
@ General
Power supply AC 120 V, 60 Hz
Power consumption 15 W
Dimensions (WXHXD) 260x 102х305 mm
(101554" x 4164" X 121/64")
Weight 3.4 kg
(7.5 Ib.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
