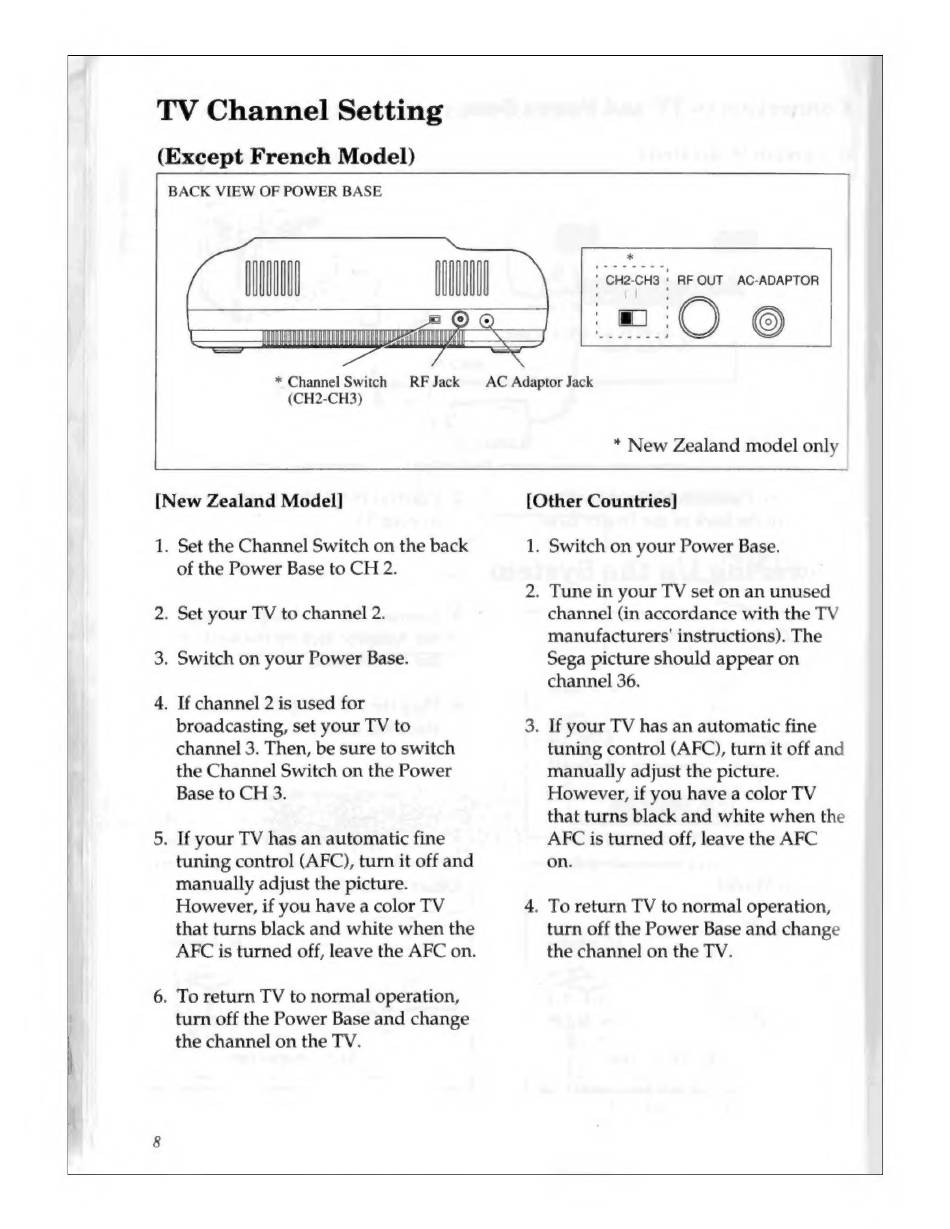

TV Channel Setting
(Except French Model)
BACK VIEW OF POWER BASE
* Channel Switch RF Jack
(CH2-CH3)
[New Zealand Model]
1.
Set the Channel Switch on the back
of the Power Base to CH 2.
. Set your TV to channel 2.
. Switch on your Power Base.
. If channel 2 is used for
broadcasting, set your TV to
channel 3. Then, be sure to switch
the Channel Switch on the Power
Base to CH 3.
. If your TV has an automatic fine
tuning control (AFC), turn it off and
manually adjust the picture.
However, if you have a color TV
that turns black and white when the
AFC is turned off, leave the AFC on.
. To return TV to normal operation,
turn off the Power Base and change
the channel on the TV.
AC Adaptor Jack
* New Zealand model only
[Other Countries]
L;
2.
Switch on your Power Base.
Tune in your TV set on an unused
channel (in accordance with the TV
manufacturers' instructions). The
Sega picture should appear on
channel 36.
. If your TV has an automatic fine
tuning control (AFC), turn it off and
manually adjust the picture.
However, if you have a color TV
that turns black and white when the
AFC is turned off, leave the AFC
on.
. To return TV to normal operation,
turn off the Power Base and change
the channel on the TV.
