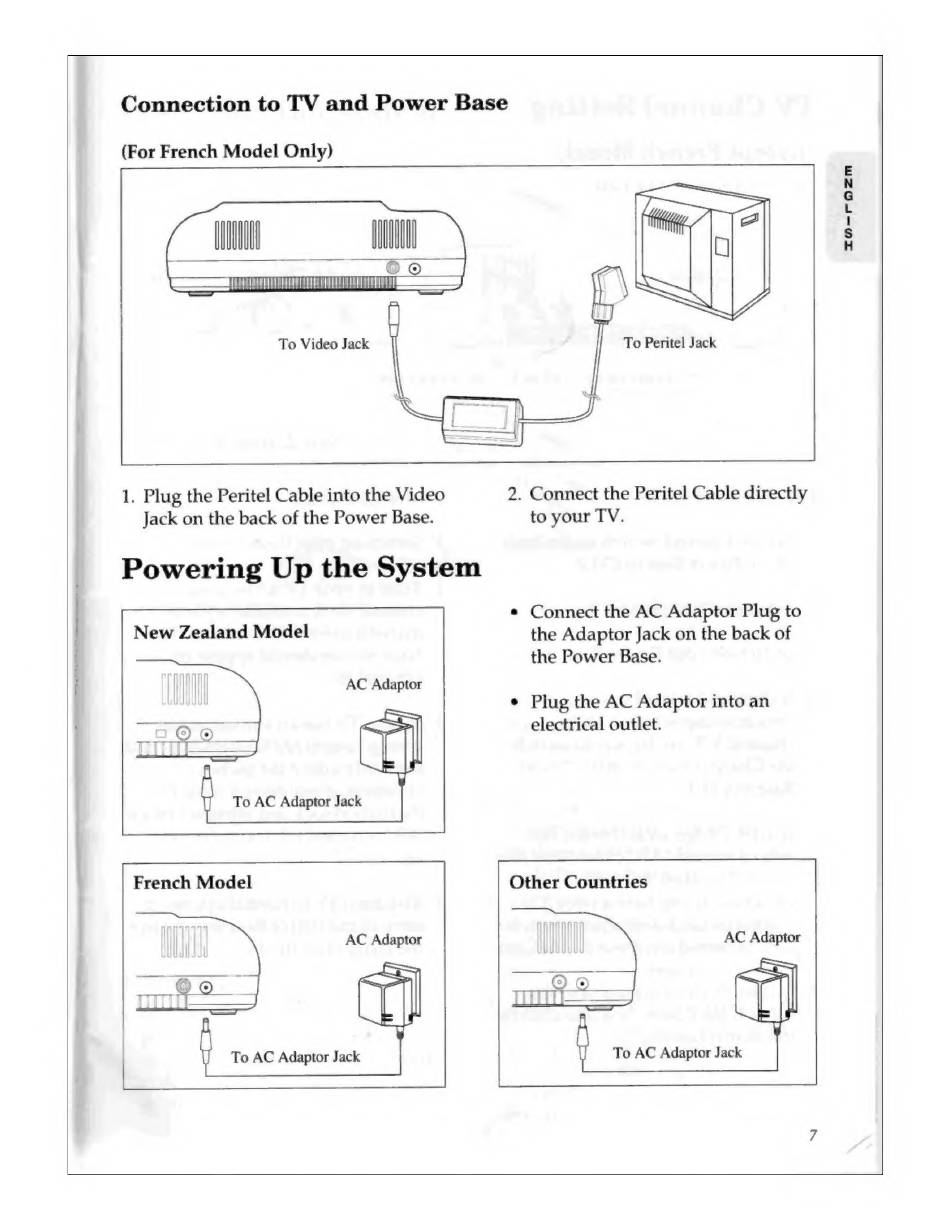

Connection to TV and Power Base
(For French Model Only)
To Video Jack
WY
To Peritel Jack
1. Plug the Peritel Cable into the Video 2. Connect the Peritel Cable directly
Jack on the back of the Power Base.
Powering Up the System
New Zealand Model
AC Adaptor
To AC Adaptor Jack
French Model
AC Adaptor
To AC Adaptor Jack
to your TV.
¢ Connect the AC Adaptor Plug to
the Adaptor Jack on the back of
the Power Base.
e Plug the AC Adaptor into an
electrical outlet.
Other Countries
AC Adaptor
To AC Adaptor Jack
In—-rozm
