121 mm
363 g +
(66 g)

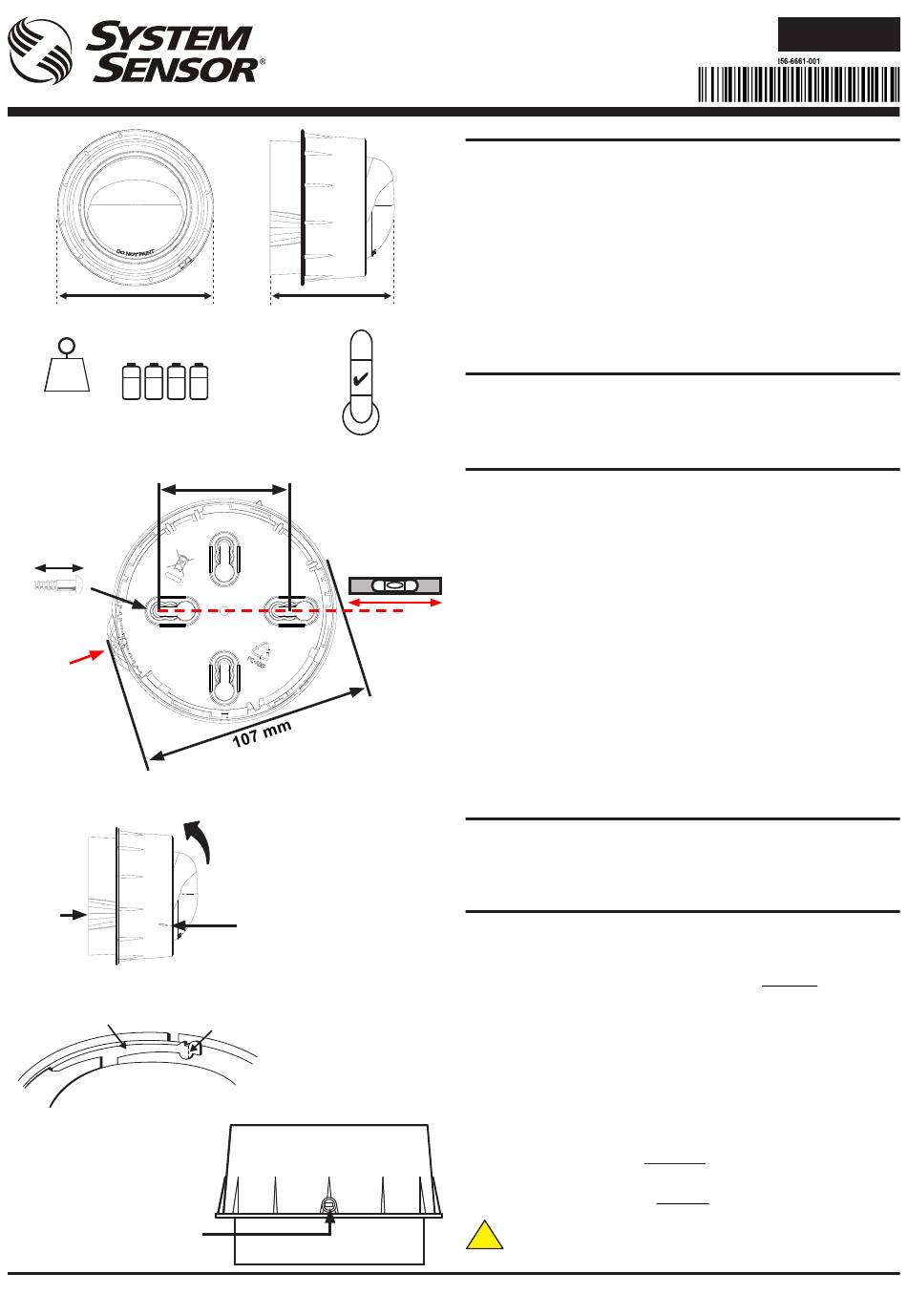

Figure 1: B501RF Mounting
≥ 25MM
≤ M4
BULGE
Figure 2: Attaching Sounder Strobe to Base
BULGE
Figure 3a: Activation of Tamper Resist Feature
BREAK TAB AT DOTTED LINE BY TWISTING
PLASTIC LEVER
Figure 3b: Removing
Sounder Strobe From Base
USE A SMALL-BLADED
SCREWDRIVER TO PUSH
THROUGH PLASTIC MOLDING
AND BASE SLOT ONTO
LOCKING LEVER
D200-311-00
Honeywell Building Technologies, Building 5 Carlton Park, King Edward Avenue, Narborough, Leicester LE19 3EQ
WSF-RR-RF WSF-WR-RF
WALL MOUNTED SOUNDER STROBE
INSTALLATION INSTRUCTIONS
96 mm
=
429 g
50-60 mm
LINE UP MARK ON INSIDE LIP
OF SOUNDER STROBE WITH
BULGE ON BASE AND TURN
CLOCKWISE
MARK ON SOUNDER
STROBE HEAD
TOWARDS CENTRE OF BASE
RADIO SYSTEM
DESCRIPTION

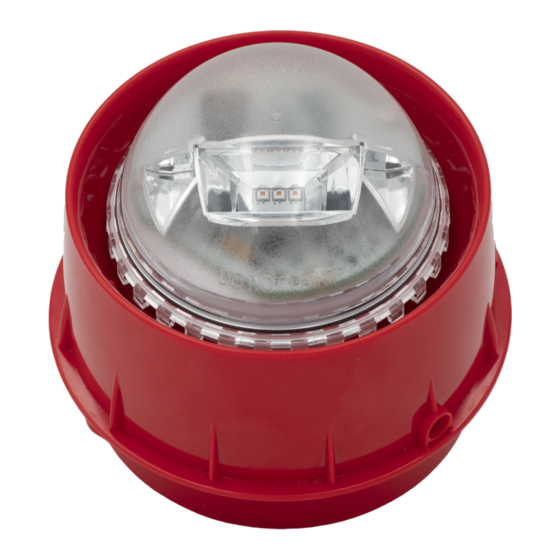

The WSF-[xx]-RF Type A radio wall-mounted sounder strobe is a battery
operated RF device designed for use with the M200G-RF radio gateway
(part of the Series 200 RF range) running on an addressable fire system
(using a compatible proprietary communication protocol).
It comprises a strobe light and a two stage sounder module combined with a
wireless RF transceiver that fits into a standard B501RF wireless base. The
sounder and strobe functions can be turned ON and OFF separately. The
appropriate volume and tone settings are selected by special application
software (AgileIQ™). The 2nd stage tone (related to the 1st stage tone) is
controlled by the fire panel via the RF Gateway.
This device conforms to EN 54-3, EN 54-23 and EN 54-25. It complies with
the requirements of 2014/53/EU for conformance with the RED directive.
55°C
PARTS LIST
Sounder strobe unit
-30°C
B501RF base
Batteries (Duracell Ultra 123 or Panasonic Industrial 123)
WSF-[xx]-RF radio sounder strobe installation instructions
SPECIFICATIONS
Supply Voltage:
Standby Current:
Max Current (Sounder On, Strobe Off): 75 mA (typical, High Volume Tone 9)
Max Current (Sounder Off Strobe On): 110 mA (typical)
Max Current Consump: 185 mA average (High Volume Tone 9 - strobe on)
Power Consumption:
Max Sound Output:
Strobe Type:
Strobe Flash Colour:
Strobe Pulse Width/Flash Rate: 50 ms/ 0.5 Hz
Strobe category:
Re-Sync Time:
Batteries:
Battery Life:
Radio Frequency:
RF Output Power:
Range:
Relative Humidity:
IP Rating:
ORIENTATION
To comply with the EN 54-23 fire standard, the wall mounted sounder
strobe must be fitted in a specific orientation on a wall. Fix the base as
shown in Figure 1 with the two mounting screw holes horizontal and the
anti-tamper BULGE towards the left.
INSTALLATION
This equipment and any associated work must be installed in accordance
with all relevant codes and regulations.
Figure 1 details the installation of the B501RF base.
Spacing between radio system devices must be a Minimum of 1m
Figure 2 details attaching the sounder strobe to the base.
Anti-Tamper Features
The base includes a feature that, when activated, prevents removal of the
sounder strobe from the base without the use of a tool. See Figures 3a and
3b for details on this.
Head Removal Warning - An alert message is signalled to the CIE via the
Gateway when a sounder strobe is removed from its base.
Figure 4 details the battery installation and the location of the rotary address
switches.
Batteries should only be installed at the time of commissioning
Observe the battery manufacturer's precautions for use
and requirements for disposal. Possible explosion
!
Important Battery Information Continued Overleaf
2.5-3.3 V Direct Current (3 V nominal)
125 µA@ 3V (typical in normal operating mode)
555 mW (3 V nom.)
100 dB(A) @ 1 m (High Volume Tone 24)
Type A indoor use
Red
W-3.5-10
35 s (max time to normal RF communication from
device power on)
4 X Duracell Ultra123 or Panasonic Industrial 123
4 years @ 25 C (Testing for 30s/week max.)
o
865-870 MHz, Channel width: 250 kHz
14 dBm (max)
500 m (typical in free air)
5% to 95% (non-condensing)
IP21C
Important
Warning
risk if incorrect type is used
E N G L I S H
1
1
4
1
I56-6661-001
