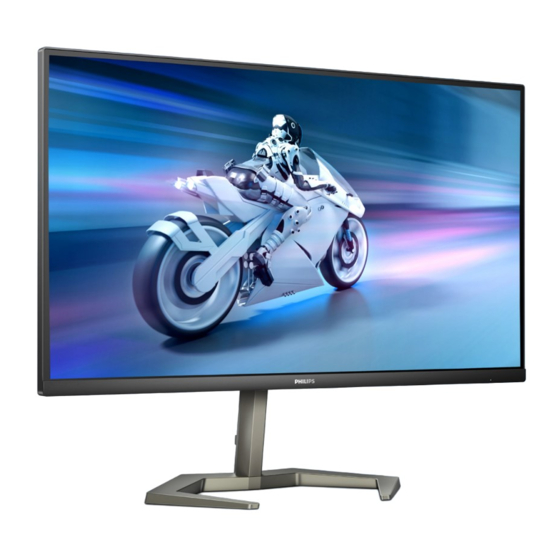

Philips EVNIA 27M1N5500U User Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. Monitor
  5. EVNIA 27M1N5500U
  6. User manual
Philips EVNIA 27M1N5500U User Manual

Philips EVNIA 27M1N5500U User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

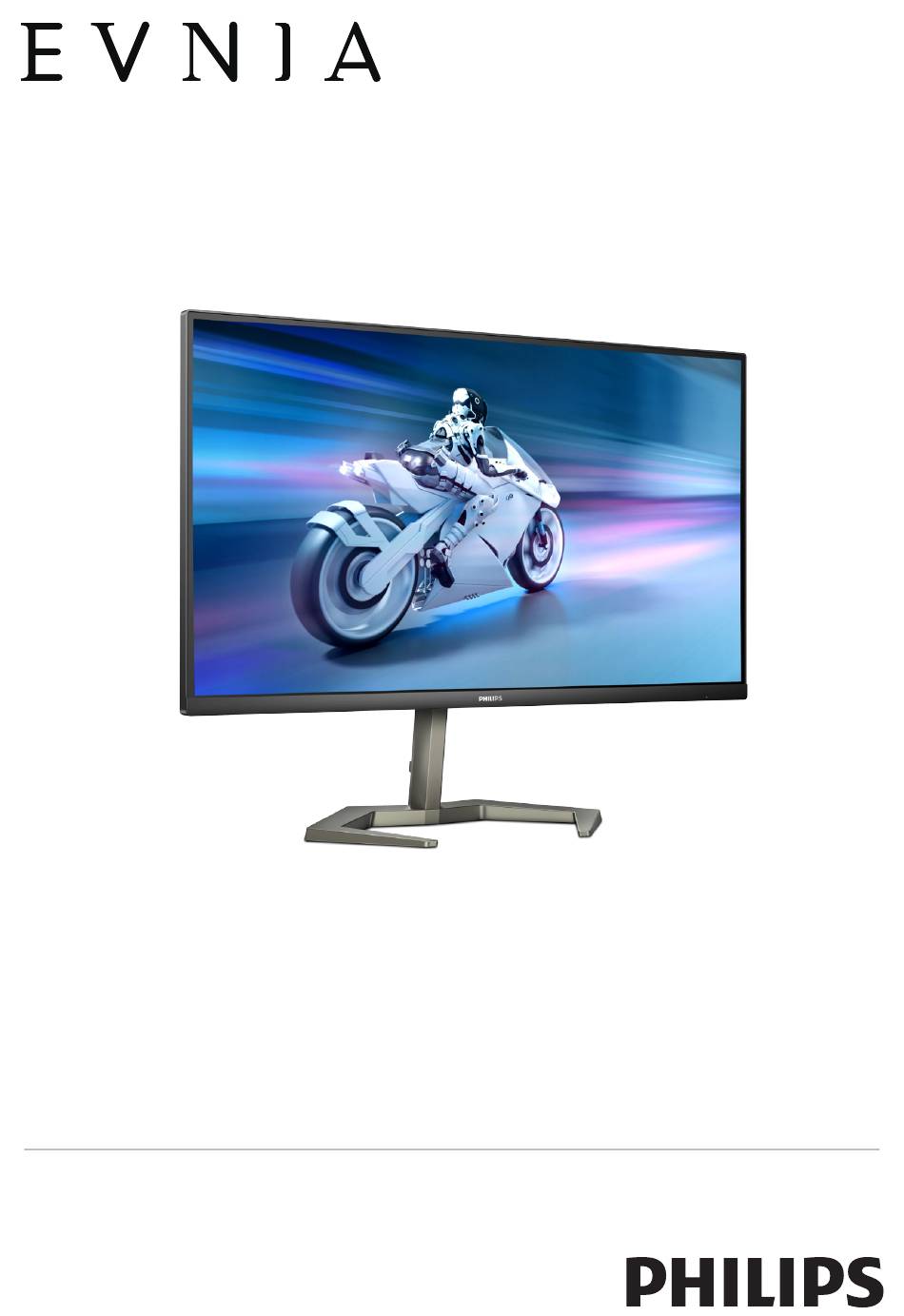

EN
User manual
Customer care and warranty
Troubleshooting and FAQs
Register your product and get support at www.philips.com/welcome
27M1N5500U
1
23
27

Advertisement

Table of Contents
loading

Related Manuals for Philips EVNIA 27M1N5500U

Summary of Contents for Philips EVNIA 27M1N5500U

  • Page 1 27M1N5500U User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...

  • Page 2: Table Of Contents

    6. Technical Specifications 18 6.1 Resolution & Preset Modes ..21 7 Power Management 22 8. Customer care and warranty 23 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 23 8.2 Customer Care & Warranty ..26 9. Troubleshooting & FAQs 27 9.1 Troubleshooting ......27 9.2 General FAQs .......

  • Page 3: Important

    Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor.
  • Page 4 bezel, ensure that the monitor does monitor by placing your hand or not tilt downward by more than -5 fingers on the LCD panel. degrees. If the -5 degree downward • Oil-based cleaning solutions may tilt angle maximum is exceeded, the damage the plastic parts and void monitor damage will not be covered the warranty.

  • Page 5: Notational Descriptions

    1.2 Notational Descriptions activate a periodic screen refresh application if your monitor will The following subsections describe display unchanging static content. notational conventions used in this Uninterrupted display of still or document. static images over an extended period may cause “burn-in”, also Notes, Cautions and Warnings known as “after-imaging”...

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-...

  • Page 7: Setting Up The Monitor

    (1) Gently attach the base to the stand. 27M1N5500U (2) Use your fingers to tighten the Register your product and get support at www.philips.com/welcome screw located at the bottom of the base. (3) Gently attach the stand to the *Earphone-Hang VESA mount area until the latch locks the stand.
  • Page 8 Connecting to your PC Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug Fast Charger 2 3 4 5 its power cable. 3. Connect the monitor signal cable to the video connector on the back of your computer.

  • Page 9: Operating The Monitor

    2.2 Operating the monitor • Use a standard USB extension cable or USB hub to increase the space Description of the control buttons between your wireless receiver and the USB3.2 or higher version of connection port. Press to switch power on. Press more than 3 seconds to switch power off.
  • Page 10 O , Fast , Faster, Fastest On-Screen Display (OSD) is a feature in On, O SmartFrame Size (1, 2, 3, 4, 5, 6, 7) all Philips LCD monitors. It allows an end Brightness (0~100) user to adjust screen performance or Contrast(0~100) H. position select functions of the monitors directly V.
  • Page 11 Resolution notification Pivot This monitor is designed for optimal performance at its native resolution, 2560 x 1440. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 2560 x 1440 for best results. Display of the native resolution alert can be switched off from Setup in the OSD 0°...

  • Page 12: Remove The Base Assembly For Vesa Mounting

    2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 0° 90° 1. Place the monitor face down on a -5° smooth surface. Pay attention not to * Display design may differ from those scratch or damage the screen.

  • Page 13: Multiview

    MultiView in OSD menu Why do I need it? [PBP]: Picture by Picture With the ultra high resolution Philips MultiView display, you can experience a Open up a sub-window world of connectivity in a comfortable side-by-side of other way in the office or at home.
  • Page 14 [PBP Input]: There are different video input to choose as the sub display source: [1 HDMI 2.0], [2 HDMI 2.0], [DisplayPort 1]and [DisplayPort 2]. Please refer below table for compatibility of main/sub input source. SUB SOURCE POSSIBILITY (xl) Inputs 1 HDMI 2.0 2 HDMI 2.0 DisplayPort 1 DisplayPort 2 1 HDMI 2.0 ●...

  • Page 15: Image Optimization 13

    Racing, RTS, Gamer 1, Gamer 2, LowBlue in real time. Whether you're working Mode, EasyRead, Smartuniformity and with text applications, displaying images Off. or watching a video, Philips SmartImage delivers great optimized monitor   performance. ...
  • Page 16 LED displays can cause eye  damage and affect vision over time.  Developed for wellbeing, Philips LowBlue Mode setting uses a smart • HDR Game: Ideal setting to optimize software technology to reduce for playing video games. With harmful shortwave blue light.

  • Page 17: Smartcontrast

    3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

  • Page 18: Adaptive Sync 16

    4 Adaptive Sync AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs AMD A10-7890K • Adaptive Sync AMD A10-7870K • PC gaming has long been an imperfect AMD A10-7850K • experience because GPUs and monitors AMD A10-7800 •...

  • Page 19: Hdr 17

    5. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desktop, enter to Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows10 edition is required;...

  • Page 20: Technical Specifications 18

    6. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2331 (H) mm x 0.2331 (V) mm Contrast Ratio(typ.) 1000:1 Optimum Resolution 2560 x 1440 @ 60 Hz Viewing Angle 178°...
  • Page 21 Plug & Play DDC/CI, sRGB, Windows 11/10/8.1/8/7, Mac OS X Compatibility Stand Tilt -5 / +20 degree Swivel -45 / +45 degree Height adjustment 130 mm Pivot -90 / +90 degree Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , 60Hz at 115VAC , 60Hz...
  • Page 22 100% PVC BFR free housing Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. SmartUniformity and Delta E information sheets are included in the box.

  • Page 23: Resolution & Preset Modes

    Note Please notice that your display works best at native resolution of 2560 x 1440. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.

  • Page 24: Power Management 22

    7 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 25: Customer Care And Warranty 23

    Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 26 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or sub panel in a Philips flat panel monitor pixels that are always dark or 'off'. That must have pixel or sub pixel defects is, a dark dot is a sub-pixel that stands...
  • Page 27 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer...

  • Page 28: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 29: Troubleshooting & Faqs 27

    This page deals with problems that can power source immediately for safety be corrected by a user. If the problem • Contact with Philips customer service still persists after you have tried these representative immediately. solutions, contact Philips customer service representative.

  • Page 30: General Faqs

    • Shut down your computer, Service contact information listed disconnect your old monitor and in Important information manual reconnect your Philips LCD monitor. and contact Philips customer service representative. • Turn on your monitor and then turn * Functionality different according to on your PC.
  • Page 31 Can I connect my LCD monitor to soft cloth. For extensive cleaning, any PC, workstation or Mac? please use isopropyl alcohol. Do Ans.: Yes. All Philips LCD monitors are not use other solvents such as fully compatible with standard ethyl alcohol, ethanol, acetone, PCs, Macs and workstations.
  • Page 32 Q10: Are Philips LCD monitors Plug- Q13: How to unlock/lock my hot key? and- Play? Ans.: Please press for 10 seconds Ans.: Yes, the monitors are Plug-and- to unlock/lock the hot key, by Play compatible with Windows doing so, your display pops out 11/10/8.1/8/7, Mac OSX.

  • Page 33: Multiview Faqs

    9.3 Multiview FAQs How to listen to Audio, independent of video? Ans.: Normally the audio source is linked to the main picture source. If you want to change audio- source input (for example: listen to your MP3 player independently regardless of the video source input), Press button to show the OSD (On Screen Display)
  • Page 34 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
