Philips Momentum 5000 User Manual
Curved gaming monitor
Hide thumbs
Also See for Momentum 5000:
- User manual (34 pages) ,
- User manual (36 pages) ,
- User manual (34 pages)
Subscribe to Our Youtube Channel
Related Manuals for Philips Momentum 5000
Summary of Contents for Philips Momentum 5000

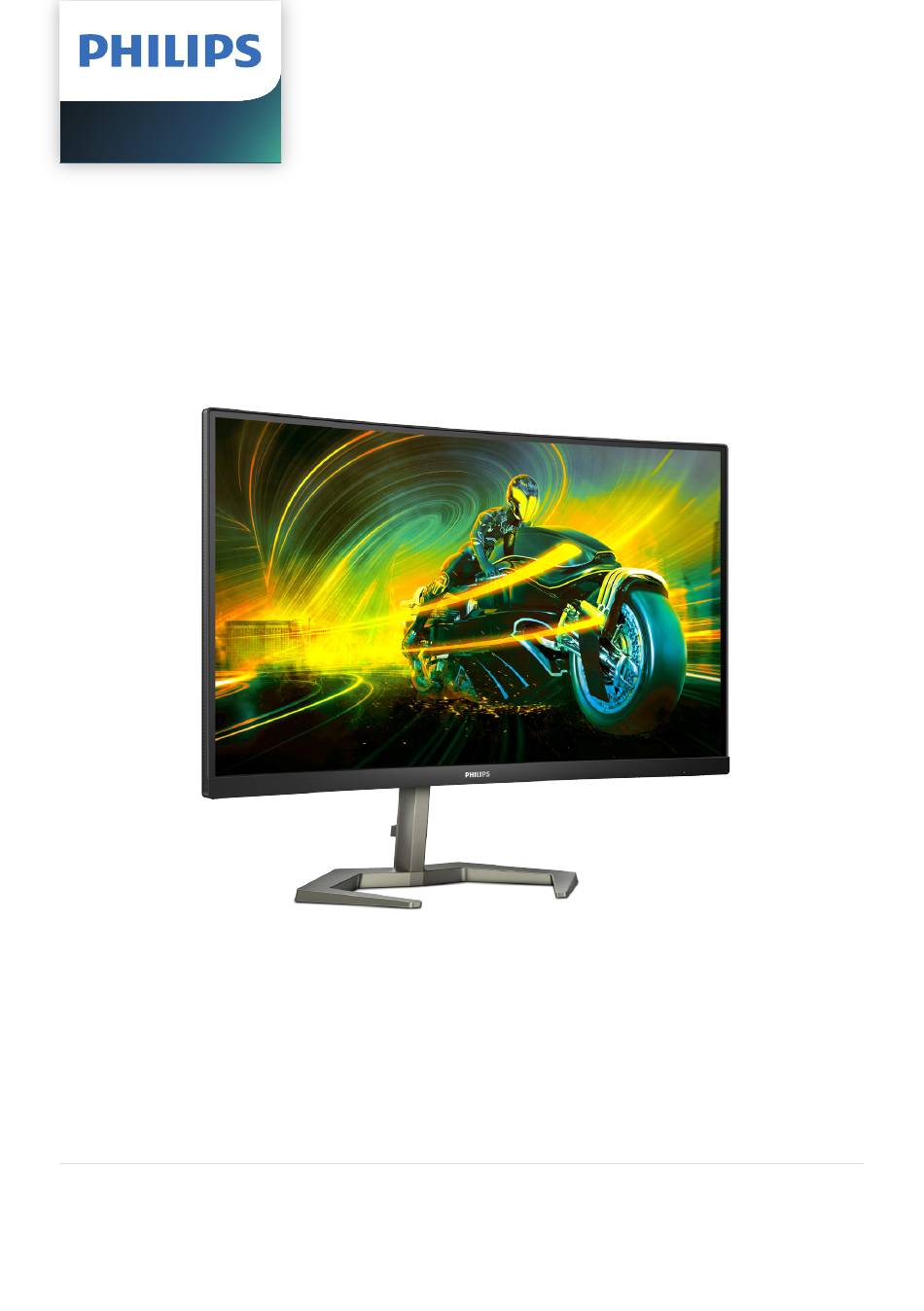

- Page 1 Curved Gaming Monitor M omentum 5000 27M1C5500V 27M1C5500VL User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
6.1 Resolution & Preset Modes ..18 7� Power Management ������������������ 19 8� Customer care and warranty ��� 20 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ......... 20 8.2 Customer Care & Warranty ..23 9� Troubleshooting & FAQs ����������� 24 9.1 Troubleshooting ...... -
Page 3: Important
Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor. - Page 4 tilt angle maximum is exceeded, the • Oil-based cleaning solutions may monitor damage will not be covered damage the plastic parts and void under warranty. the warranty. • Do not knock or drop the monitor • Unplug the monitor if you are not during operation or transportation.
-
Page 5: Notational Descriptions
1.2 Notational Descriptions Uninterrupted display of still or static images over an extended The following subsections describe period may cause “burn-in”, also notational conventions used in this known as “after-imaging” or “ghost document. imaging”, on your screen. • “Burn-in”, “after-imaging”, or Notes, Cautions and Warnings “ghost imaging”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: 2� Setting Up The Monitor
Curved Gaming Monitor Momentum 5000 27M1C5500V 27M1C5500VL Quick start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the stand. 27M1C5500V 27M1C5500VL *Earphone-Hang (2) Use your fingers to tighten the screw located at the bottom of the base. -
Page 8: Operating The Monitor
2.2 Operating the monitor Connecting to your PC Description of the control buttons Earphone-Hang Press to switch power on. Press more than 3 seconds to switch power off. Access the OSD menu. Confirm the OSD adjustment. Adjust the Game Setting. Kensington anti-theft lock Adjust the OSD menu. - Page 9 What is On-Screen Display (OSD)? MPRT MPRT Level On-Screen Display (OSD) is a feature in Crosshair Low Input Lag all Philips LCD monitors. It allows an end SmartResponse user to adjust screen performance or SmartFrame Size (1,2,3,4,5,6,7) select functions of the monitors directly...
- Page 10 Swivel (27M1C5500V) Note • MPRT: To reduce motion blur, LED backlight will strobe synchronously with screen refresh, which may cause noticeable brightness change. • 75Hz refresh rate or higher is required +45° -45° for MPRT. • Adaptive Sync and MPRT cannot be enabled simultaneously.
-
Page 11: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 0° 90° 1. Place the monitor face down on a -5° smooth surface. Pay attention not to * Display design may differ from those scratch or damage the screen. -
Page 12: 3� Image Optimization
Mode, EasyRead and Off. brightness, contrast, color and sharpness in real time. Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. Why do I need it? You want a monitor that delivers ... - Page 13 LED displays can cause eye and blue for true-to-life visuals. damage and affect vision over time. • Personal: Customize available Developed for wellbeing, Philips settings in picture menu. LowBlue Mode setting uses a smart • Off: No optimization by SmartImage software technology to reduce HDR.
-
Page 14: Smartcontrast
3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 15: 4� Adaptive Sync
4. Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs Adaptive Sync AMD A10-7890K • AMD A10-7870K • PC gaming has long been an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates. -
Page 16: 5� Hdr
5. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desktop, enter to Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows10 edition is required;... -
Page 17: Technical Specifications
6. Technical Specifications Picture/Display Monitor Panel Type Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2331 (H) mm x 0.2331 (V) mm Contrast Ratio(typ.) 4000:1 Viewing Angle 178° (H) / 178° (V) @ C/R > 10 (typ.) Monitor Colors 16.7M (8 bits) Picture Enhancement... - Page 18 Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , at 115VAC , at 230VAC, 50Hz 60Hz 60Hz Normal Operation 38.9 W (typ.) 38.7 W (typ.) 38.5 W (typ.) Sleep (Standby mode) 0.5 W 0.5 W 0.5 W Off mode 0.3 W...
- Page 19 Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 20: Resolution & Preset Modes
For best output performance, please always ensure that your graphic card 2560 x 1440 @ 165Hz (DP) is capable of achieving the maximum Recommended Resolution resolution and refresh rate of this Philips 2560 x 1440 @ 60Hz (HDMI/DP) display. H. freq Resolution V. -
Page 21: 7� Power Management
7. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 22: 8� Customer Care And Warranty
Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 23 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or sub panel in a Philips flat panel monitor pixels that are always dark or 'off'. That must have pixel or sub pixel defects is, a dark dot is a sub-pixel that stands...
- Page 24 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 25: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 26: 9� Troubleshooting & Faqs
• Disconnect the monitor from mains This page deals with problems that can power source immediately for safety be corrected by a user. If the problem • Contact with Philips customer still persists after you have tried these service representative immediately. solutions, contact Philips customer service representative. -
Page 27: General Faqs
Shut down your computer, For further assistance, refer to the disconnect your old monitor and Service contact information listed in reconnect your Philips LCD monitor. Important information manual and contact Philips customer service • Turn on your monitor and then turn representative. - Page 28 Can I connect my LCD monitor to soft cloth. For extensive cleaning, any PC, workstation or Mac? please use isopropyl alcohol. Do Ans.: Yes. All Philips LCD monitors are not use other solvents such as fully compatible with standard ethyl alcohol, ethanol, acetone, PCs, Macs and workstations.
- Page 29 Q10: Are Philips LCD monitors Plug- Q13: How to unlock/lock my hot key? and- Play? Ans.: Please press for 10 seconds Ans.: Yes, the monitors are Plug-and- to unlock/lock the hot key, by Play compatible with Windows doing so, your display pops out 11/10/8.1/8/7, Mac OSX.
- Page 30 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
