Reliable RFC30LL Installation Manual

Features
• cULus Listed as Residential Sprinklers
• Push-On cover plate installation
• Low water flow requirements
Product Description

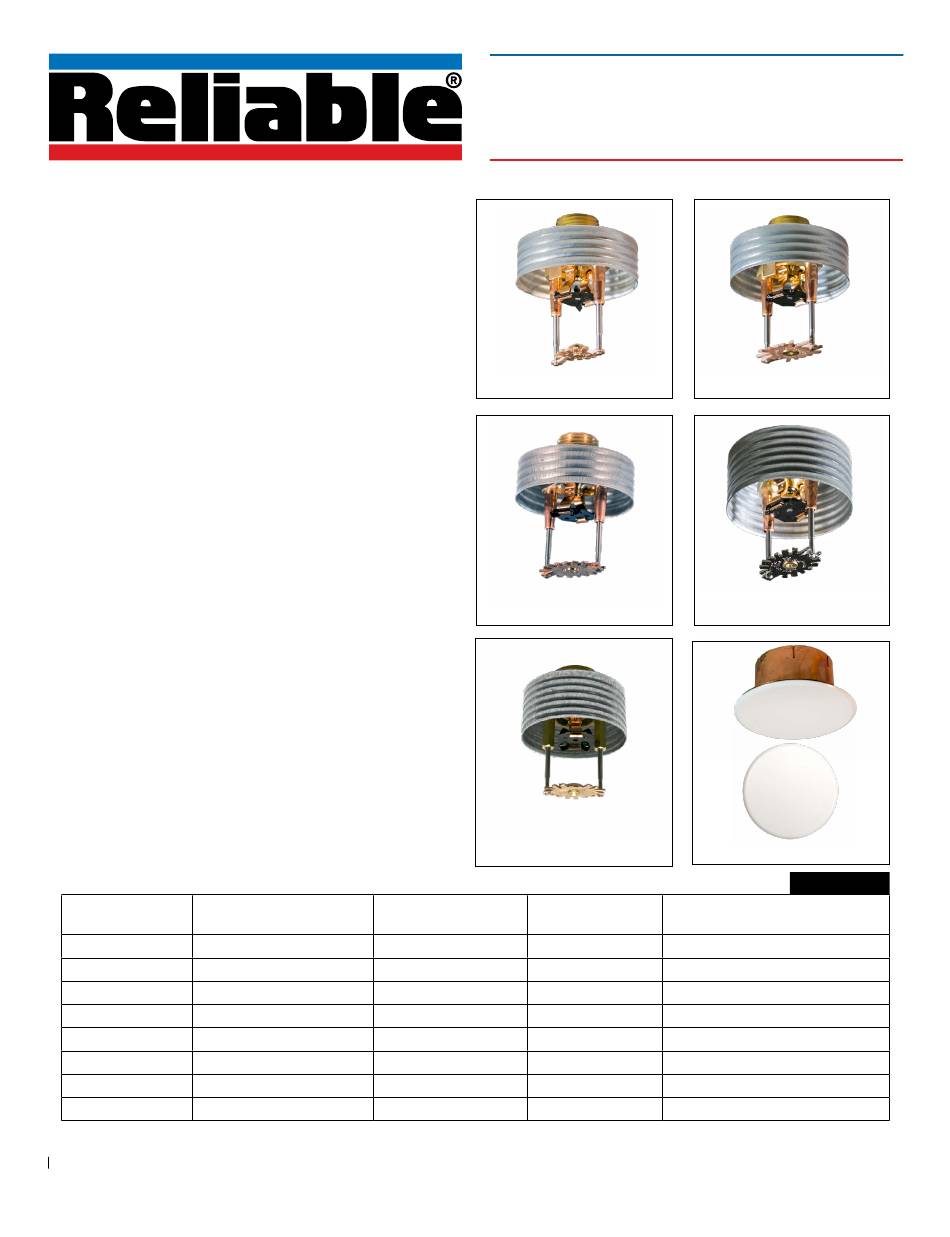

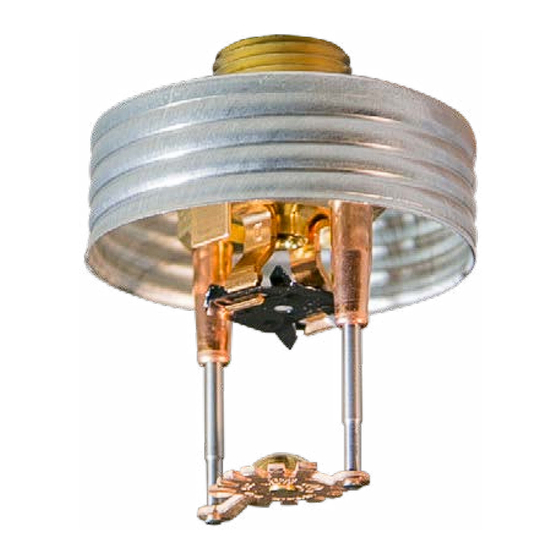

Model RFC Series residential sprinklers are flat cover plate,
concealed pendent sprinklers intended for installation in
accordance with NFPA 13, NFPA 13R, or NFPA 13D. The
sprinklers are cULus Listed as Residential Sprinklers in ac-
cordance with UL 1626. In addition, Model RFCLL Series
sprinklers are cULus Certified for Health Effects to NSF/ANSI
standard 61 Annex G (LL) and Australian WaterMark Certified
(WMCS).
Model RFC30 sprinklers have a 165°F (74°C) temperature
rated fusible-link operating element. Model RFC43, RFC49,
RFC58, and RFC76 sprinklers are offered with either a 165°F
(74°C) or 212°F (100°C) temperature rated fusible-link oper-
ating element. Sprinklers with a 165°F (74°C) temperature
rating are ordinary temperature classification and are listed
for use with a 135°F (57°C) temperature rated cover plate.
Sprinklers with a 212°F (100°C) temperature rating are inter-
mediate temperature classification and are listed for use with
a 165°F (74°C) temperature rated cover plate.
Model RFC Series sprinklers are installed with a Model RFC
cover plate. Model RFC cover plates may be installed by ei-
ther pushing or threading the cover plate into the sprinkler
cup. Model RFC30, RFC30LL, RFC43, RFC43LL, RFC49 and
RFC49LL sprinklers allow 1/2" (13 mm) of cover plate adjust-
ment. Model RFC58 and RFC76 sprinklers allow 3/4" (19 mm)
of cover plate adjustment. Model RFC cover plates are avail-
able in a variety of finishes as listed in Table H.
Nominal K-Factor
Sprinkler Model
gpm/psi
RFC30
RFC30LL
RFC43
RFC43LL
RFC49
RFC49LL
RFC58
RFC76
cULus: cULus Listed to UL1626, Residential Sprinklers for Fire Protection Service.
LL: cULus Certified for Health Effects to NSF/ANSI Standard 61 Annex G (Less than 0.25% Lead content).
WMCS: Australian WaterMark Certified.
Max. Coverage Area
(l/min/bar ) ft x ft (m x m)
1/2 1/2
3.0 (43) 14 x 14 (4.3 x 4.3)
3.0 (43) 14 x 14 (4.3 x 4.3)
4.3 (62) 20 x 20 (6.1 x 6.1)
4.3 (62) 20 x 20 (6.1 x 6.1)
4.9 (71) 20 x 20 (6.1 x 6.1)
4.9 (71) 20 x 20 (6.1 x 6.1)
5.8 (84) 20 x 20 (6.1 x 6.1)
7.6 (109) 20 x 20 (6.1 x 6.1)
