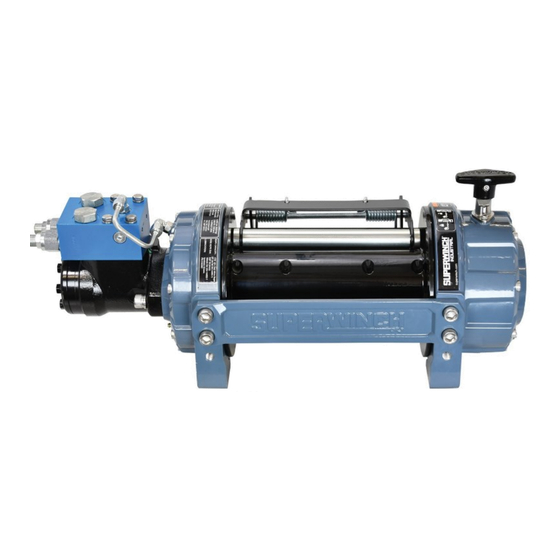

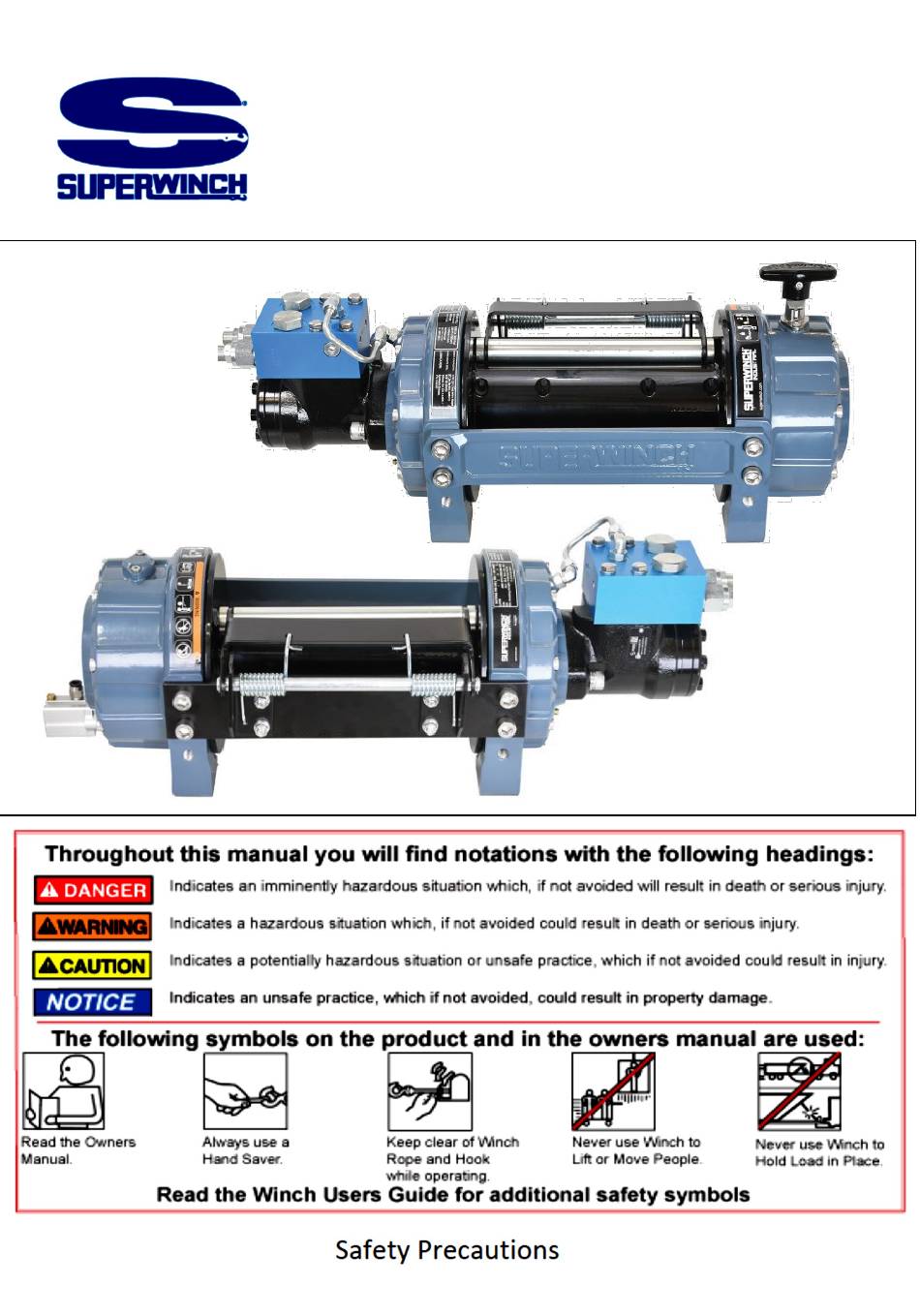

- Page 1 SI Series, EN14492-1 Planetary Hydraulic 8000 lb (35.58 kN) Planetary Hydraulic 10000 lb (44.45 kN) Planetary Hydraulic 12000 lb (53.38 kN...
- Page 6 SI8 8000 lb (35.58 kN) SI-8 Specifications Line Speed Per Layer 15 G p/m ( 57 L p/min ) Pressure (maximum) 2200 psi (151.7 Bar) Layer 1 15 M p/m ( 49 ft p/m ) Flow (maximum) 15 GPM (57 L p/m) Layer 2 18 M p/m ( 58 ft p/m ) Lubrication (gearbox)
- Page 7 SI2 12000 lb (53.38 kN) SI-12 Specifications Line Speed Per Layer 15 G p/m ( 57 L p/min ) Pressure (max operating) 2050 psi (158 Bar) Layer 1 8.5 M p/m ( 28 ft p/m ) Flow (maximum) 15 GPM (57 L p/m) Layer 2 9.4 M p/m ( 31 ft p/m ) Lubrication (gearbox)
- Page 10 The Figures below show the mounting dimensions for the Superwinch SI 8,10, 12, 15 & 18.The Superwinch SI8,10 &12 serries is mounted 8 bolts only to dimensions shown in foot down (see below) or in a foot forward. Use Only M12 Grade 8 High tensile steel bolts...
- Page 11 Steel Rope Installation only EN drum...
- Page 12 90° As shown in disengaged diagram below. Winch Engaged Position Winch Disengaged Position Pneumatic Freespool Option A pneumatic freespool may be fitted to your Superwinch SI winch. Follow the same safety instructions as provided for the manual freespool option.
- Page 14 Steel Rope Installation Only EN Drum...
- Page 15 Roller Fairlead Installation UNDERWOUND SI8, SI10 & SI12 The Superwinch SI Industrial roller is to be installed once the winch is mounted and secured into position. You may then remove the front tie bar without risk of winch misalignment. The roller fairlead is used in place of the tie bar or reapply the tie bar above the roller using two bolts only.
- Page 16 Your Superwinch SI winch will come pre lubricated from the factory ready to install. Drum bearings and gearbox are lubricated with a recommended: Shell Gadus synthetic lubricant. Once installed and after initial use all mounting bolts and hose connections should be check to be tight and secure.
- Page 19 Air Clutch Free Spool P/No S100512...
