HYDRAULICALLY POWERED WINCHES
w w w . s u p e r w i n c h . c o m
Superwinch LTD.
Union Mine Road, Pitts Cleave
Tavistock, Devon. PL19 0NS
Tel:
+44 (0) 1822 614101
Fax: +44 (0) 1822 615204
E-mail: sales@superwinch.net
Owners Manual 5-201-007 Issue 1
OWNER'S MANUAL
H20PRO / H25PRO / H30PRO
EN 14492-1
EN 14492-1
Superwinch LLC.
Winch Drive, Putnam
Connecticut 06260 U.S.A.
Tel:
01 800 323 2031
Fax: 01 860 963 0811
E-mail: info@superwinch.com
Page
1

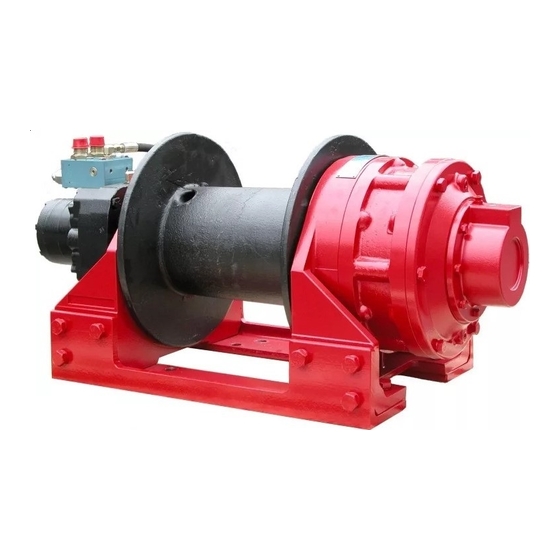

Winch shown for
illustration purposes only
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Superwinch H25PRO
Summary of Contents for Superwinch H25PRO
- Page 1 OWNER’S MANUAL H20PRO / H25PRO / H30PRO EN 14492-1 EN 14492-1 HYDRAULICALLY POWERED WINCHES w w w . s u p e r w i n c h . c o m Winch shown for illustration purposes only Superwinch LTD.
- Page 2 WINCH INSTALLATION MAINTENANCE AND USE RUNNING-IN MAINTENANCE AND SERVICING WIRE ROPE FREESPOOL USE TIPS FOR EXTENDING THE LIFE OF YOUR WINCH SPARES AND ACCESSORIES WARRANTY For all your requirements please contact your Superwinch agent Owners Manual 5-201-007 Issue 1 Page...
- Page 3 Superwinch. It has been designed and manufactured to meet BS EN14492-1, Before you contact Superwinch or your nearest Dealer please Power Driven Winches Standard, and provide years of have ready the following information: Kit No, Serial No, and trouble free operation.
-
Page 4: Specification Data
73.9 kN (7,540 kg) 85.7 kN (8,750 kg The Superwinch Pro Series H20P / H25P / H30P heavy duty hydraulic, planetary drive, winch range is available in our standard configuration, or with manually operated freespool, please contact your distributor or Superwinch for details. -
Page 5: System Installation
SYSTEM INSTALLATION Control Valve4 - way, 3 - position with spring centred, open WINCH INSTALLATION centre (ports A & B open when in centre position) and built in Correct instalation of your winch is a requirement for correct relief valve. The relief valve must be set to the winch operation. -
Page 6: Winch Installation
WINCH INSTALLATION It is important that the winch is mounted securely so that the All eight mounting holes must be used. motor mount, drum and worm box housing are accurately aligned. Use the spacers if supplied. The tie bars supplied with the winch must remain attached. Allthough the winch may be mounted in either the 'overwound' or 'underwound' positions, 'underwound' is It is important that the winch is mounted securely so that the... - Page 7 MAINTENANCE & USE WIRE ROPE SPECIFICATION: PNEUMATIC & HYDRAULIC 1. Unwind the cable by rolling it out along the ground 1. Disengage the drum by operating the pneumatic control with the tapered end nearest to the winch. NEVER wind the valve.
- Page 8 The result of kinking is that directions. each strand pulls a different amount causing the strands 2. Repairs should be carried out by authorised Superwinch under greatest tension to break repair centres only. Do not attempt disassembly of the and reduce load capacity of the gearbox.
-
Page 9: Spares And Accessories
SPARES & ACCESSORIES Item Description Part Number Qty. Item Description Part Number Qty. Freespool Assembly. 70-90008 WormWheel / Worm Set. 70-95020 Clutch Housing. 70-25049 Gasket. 70-60011 Face Seal. 4-22-180204143 Wormbox Cover. 70-25010 Flange Bearing. 10049 Hex Set Screw, M8 X 25. 4-32-0802522 Spherical Plain Bearing. - Page 10 SPARES & ACCESSORIES MANUAL FREESPOOL Item Description Part Number Qty. Complete Manual F/S Assembly 54-90218 Button Hd Screw 4-38-081023 Head, Release 54-50245 Body, Release 54-50246 Selector Shaft 54-50244 Spring 4-31-50763223 Freespool Fork 70-25012 Freespool Housing 54-25044 Gasket 54-60066 Gearbox Cover 54-25161 Clutch Member 54-50243...
-
Page 11: Optional Accessories
OPTIONAL ACCESSORIES Optional accessories, designed by Superwinch exclusively for the H20P / H25P / H30P: Rope Drum Safety Guard Part No. 54-30178 Roller Fairlead Wire Ropes Part No. 254001 Part No. 201645, 16mm x 45m Part No. 201845, 18mm x 45m Part No. - Page 12 A. Express Warranties. Seller warrants that the Superwinch is as described in the “Superwinch Owner’s Manual” provided herein; no other express warranty is made in respect to the Superwinch. If any model or sample was shown to the buyer, such model or sample was used for illustrative purposes only, and shall not be constructed as a warranty that the Superwinch will conform to the sample or model.
