- Page 1 USB 3.0 Hub 4-Port, 7-Port Industrial Line Quick Installation Guide DA-70257 / DA-70258...
- Page 2 Table of contents 1. Introduction ................. 3 2. Main Features ................3 3. Package Contents ................. 4 4. Specification ................. 4 5. Product View ................5 6. Powering the Hub ................ 6 7. Hardware Installation..............7...
- Page 3 1. Introduction The DIGITUS USB 3.0 Hub Industrial is ideal for consumer and industrial applications due to its metal housing and the screwable USB outputs. It can be installed on the wall or on a carrier rail and is connected to a computer, notebook or server with the supplied USB 3.0 cable.
- Page 4 3. Package Contents 1x USB HUB • 1x cable USB A plug to USB B plug, length approx. 2 m • 2x wall mounting plates with screw package • 1x Top-hat rail mounting: 25 mm • 1x 3 pin terminal block •...

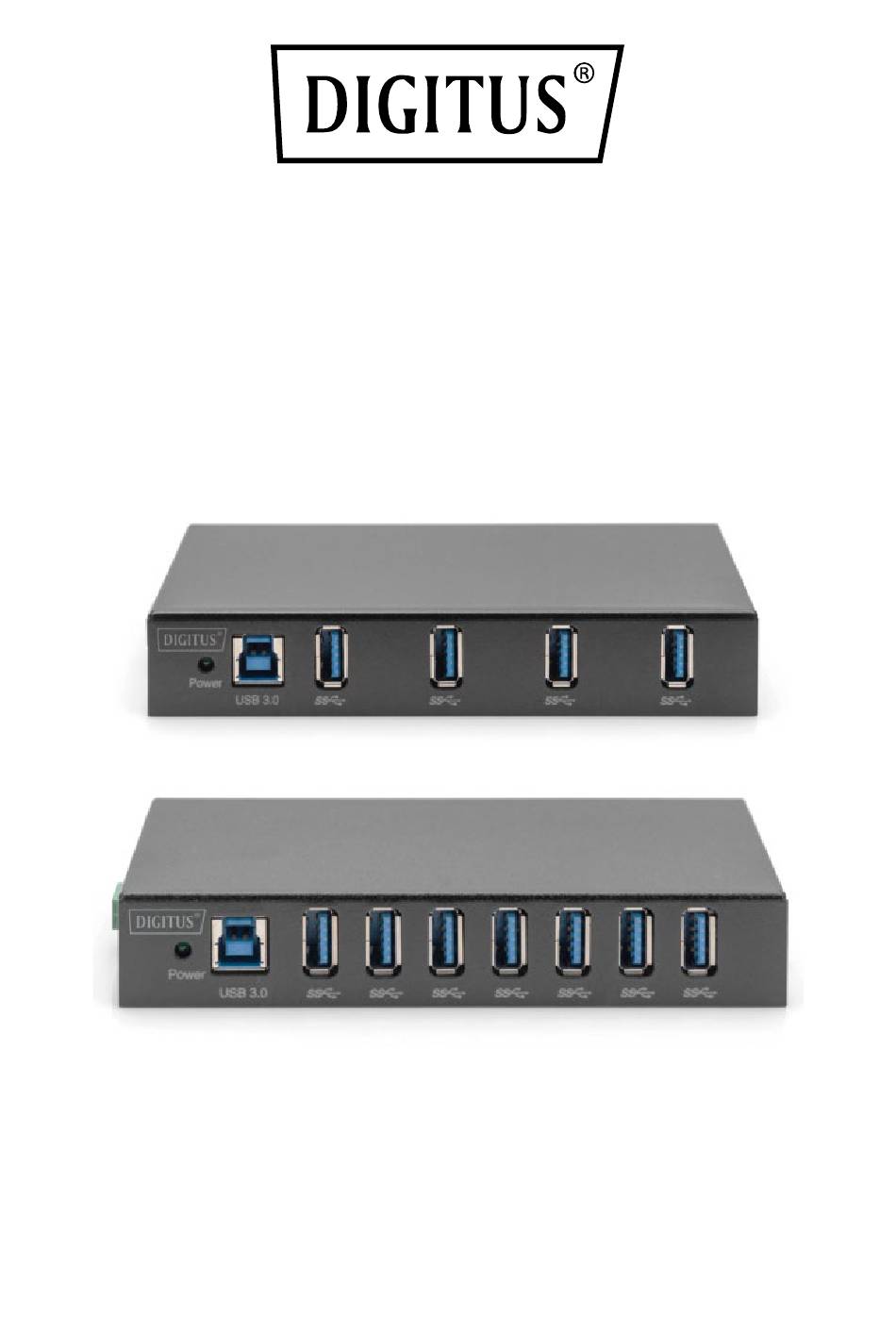

- Page 5 5. Product View 4-Port 7-Port Power Led USB Type B Port DC Jack 3 pin Terminal Block...
- Page 6 6. Powering the Hub The Industrial USB 3.0 Hub with 15KV ESD Protection requires a 9-24 VDC external power source (not included) to work. Power up the Industrial Hub through either the DC Power Jack or 3-Pin Terminal Block. DC Power Jack Plug the power adapter into a reliable power source, then connect it to the hub's DC Power Jack.
- Page 7 3-Pin Terminal Block Plug the included terminal block into the hub's terminal block connector. Refer to Pin Assignment in the next section for wiring the power adapter (power adapter not included). Power Terminal Pin Assignment 9-24 VDC CGND 7. Hardware Installation Mount your hub on the wall or DIN-Rail, if needed.
- Page 8 Insert the top of the DIN-Rail clip onto the DIN-Rail track, then gently push the bottom of the hub to secure it to the DIN-Rail track. Wall Mount Plate Mounting Use the provided Wall Mount Plate to mount the hub to the wall. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
