Jensen JHD12 Quick Reference Manual

Cr
1
F_ N _ s · f , - N ~
JHD12
Ill
0
~
...
C:
0
u
~
cu
C:
:I
I-
~
LL.
--
~
ct
0
~
...
C:
0
u
~
cu
C:
:I
1-
"C
C:
IQ
.Q
~
cu
.c
...
IQ
cu
3:
HEAVY DUTY
MODE/PAIR: Press to cycle
through source mode. Press and
hold to begin Bluetooth pairing.
POWER: Press to tum ON.
Press again to switch Dimmer
(On/Off). Press and hold to tum
off and enter standby mode.
VOLUME: Press the VOLUME
UP button to increase volume.
Press the VOLUME DOWN
button to decrease volume.
PLAY/PAUSE: Press to
Mute/Pause audio, press again
to resume audio volume.
VOLUME: Press the VOLUME
UP button to increase volume.
Press the VOLUME DOWN
button to decrease volume.
MUTE: Press to MUTE volume.
Press again to resume volume.

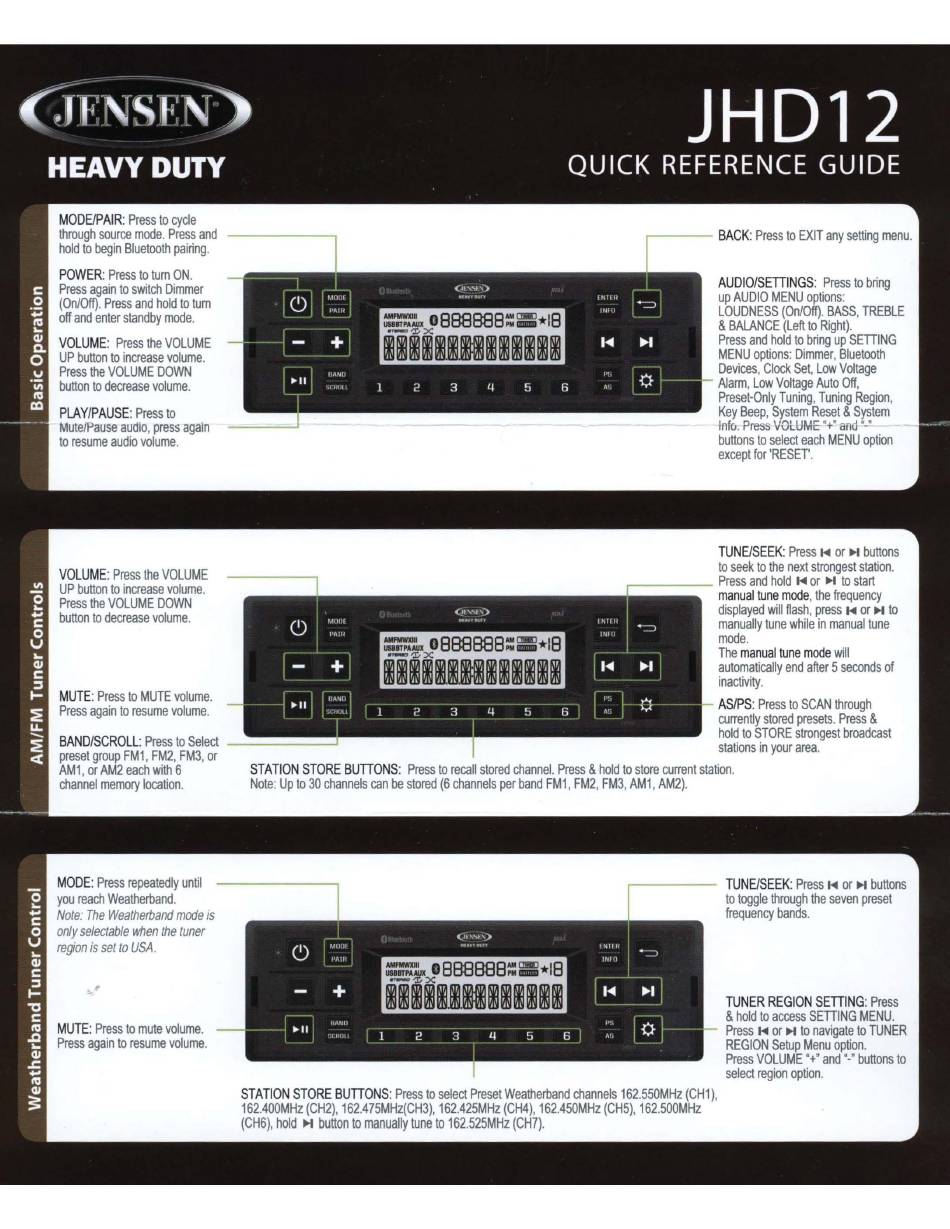

QUICK REFERENCE GUIDE
AUDIO/SETTINGS: Press to bring
up AUDIO MENU options:
LOUDNESS (On/Off), BASS, TREBLE
& BALANCE (Left to Right),
Press and hold to bring up SETTING
MENU options: Dimmer, Bluetooth
Devices, Clock Set, Low Voltage
Alarm, Low Voltage Auto Off,
Preset-Only Tuning, Tuning Region,
Key Beep, System Reset & System
Info. Press VOLUME-'+• and '.!'
buttons to select each MENU option
except for 'RESET,
TUNE/SEEK: Press H or H buttons
to seek to the next strongest station.
~ - - - - Press and hold Hor
H
to start
manual tune mode, the frequency
displayed will flash, press
H
or
H
to
manually tune while in manual tune
mode.
The manual tune mode will
automatically end after 5 seconds of
inactivity.
BAND/SCROLL: Press to Select _ _ _ _ _ __.
AS/PS: Press to SCAN through
currently stored presets. Press &
hold to STORE strongest broadcast
stations in your area.
preset group FM1, FM2, FM3, or
AM1, or AM2 each with 6
channel memory location.
MODE: Press repeatedly until
you reach Weatherband.
Note: The Weatherband mode is
only selectable when the tuner
region is set to USA
MUTE: Press to mute volume,
Press again to resume volume.
STATION STORE BUTTONS: Press to recall stored channel. Press & hold to store current station.
Note: Up to 30 channels can be stored (6 channels per band FM1 , FM2, FM3, AM1, AM2).
STATION STORE BUTTONS: Press to select Preset Weatherband channels 162.550MHz (CH1),
162.400MHz (CH2), 162.475MHz(CH3), 162.425MHz (CH4), 162.450MHz (CH5), 162.500MHz
(CH6), hold
H
button to manually tune to 162.525MHz (CH7),
TUNE/SEEK: Press
H
or
H
buttons
to toggle through the seven preset
frequency bands.
TUNER REGION SETTING: Press
& hold to access SETTING MENU.
Press
H
or H to navigate to TUNER
REGION Setup Menu option.
Press VOLUME "+' and ·-· buttons to
select region option.
