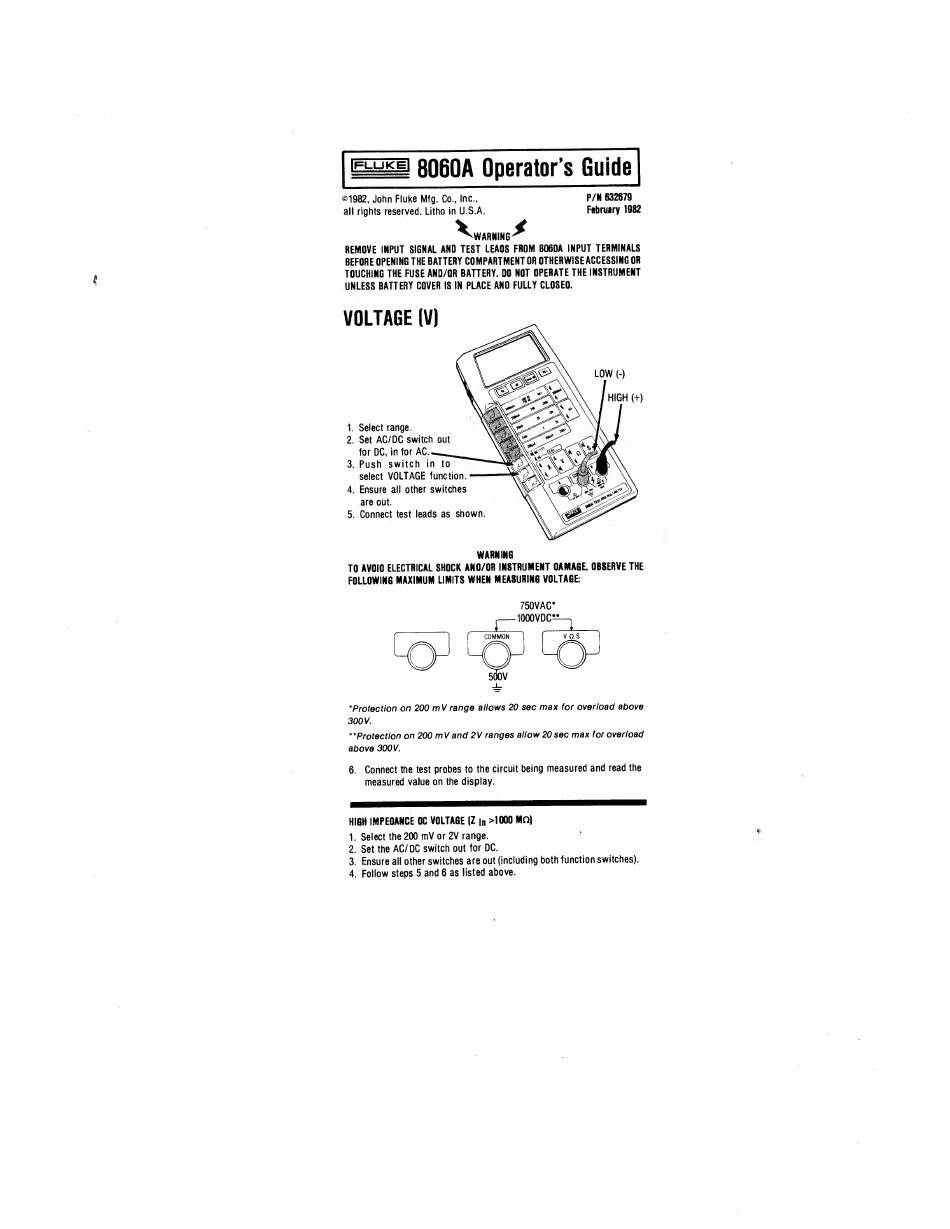

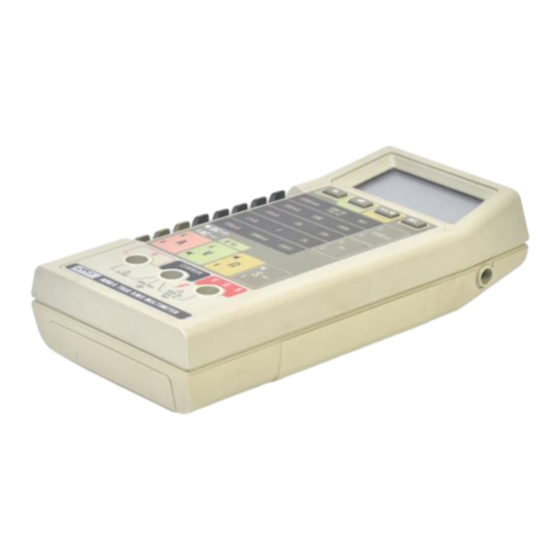

Fluke 8060A Operator's Manual

f
IFLUKEI
8060A
Operator's
Guide
©1982, John Fluke Mfg.
Co., Inc.,
P/M 632879
all
rights reserved. Litho in
U.S.A.
Februiry 1982
^WARNING
^
REMOVE INPUT SIGNAL
AND TEST LEADS FROM 8060A INPUT
TERMINALS
BEFORE OPENING THE BATTERY
COMPARTMENT
OR
OTHERWISE ACCESSING OR
TOUCHING THE FUSE AND/OR BATTERY. DO
NOT OPERATE THE INSTRUMENT
UNLESS BATTERY COVER
IS
IN
PLACE AND FULLY CLOSED.
FOLLOWING
MAXIMUM
LIMITS
WHEN MEASURING VOLTAGE:
750V AC*
*
Protection
on 200
m
V range allows 20 sec
max
for
overload above
300V.
*'
Protection
on 200
mV
and
2V
ranges allow 20 sec
max
for overload
above
300V.
6.
Connect the test
probes
to
the circuit being
measured and
read the
measured
value
on
the display.
HIGH
IMPEDANCE DC VOLTAGE
(Z
|
n
>1000
MO)
1
.
Select the
200
mV
or
2V
range.
2.
Set the
AC/ DC switch out
for
DC.
3.
Ensure
all
other switches are out (including
both function switches).
4.
Follow steps 5
and 6 as
listed
above.
